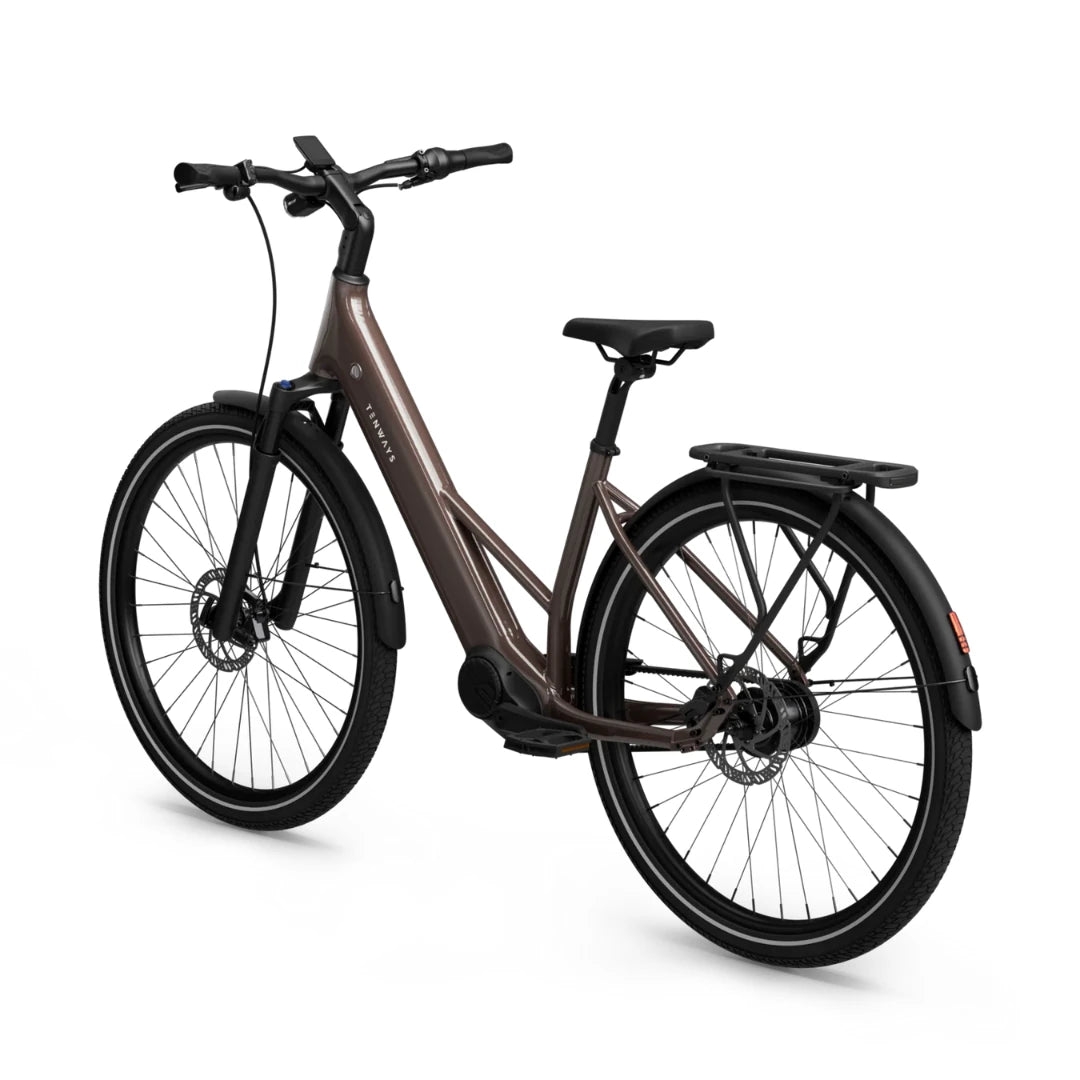

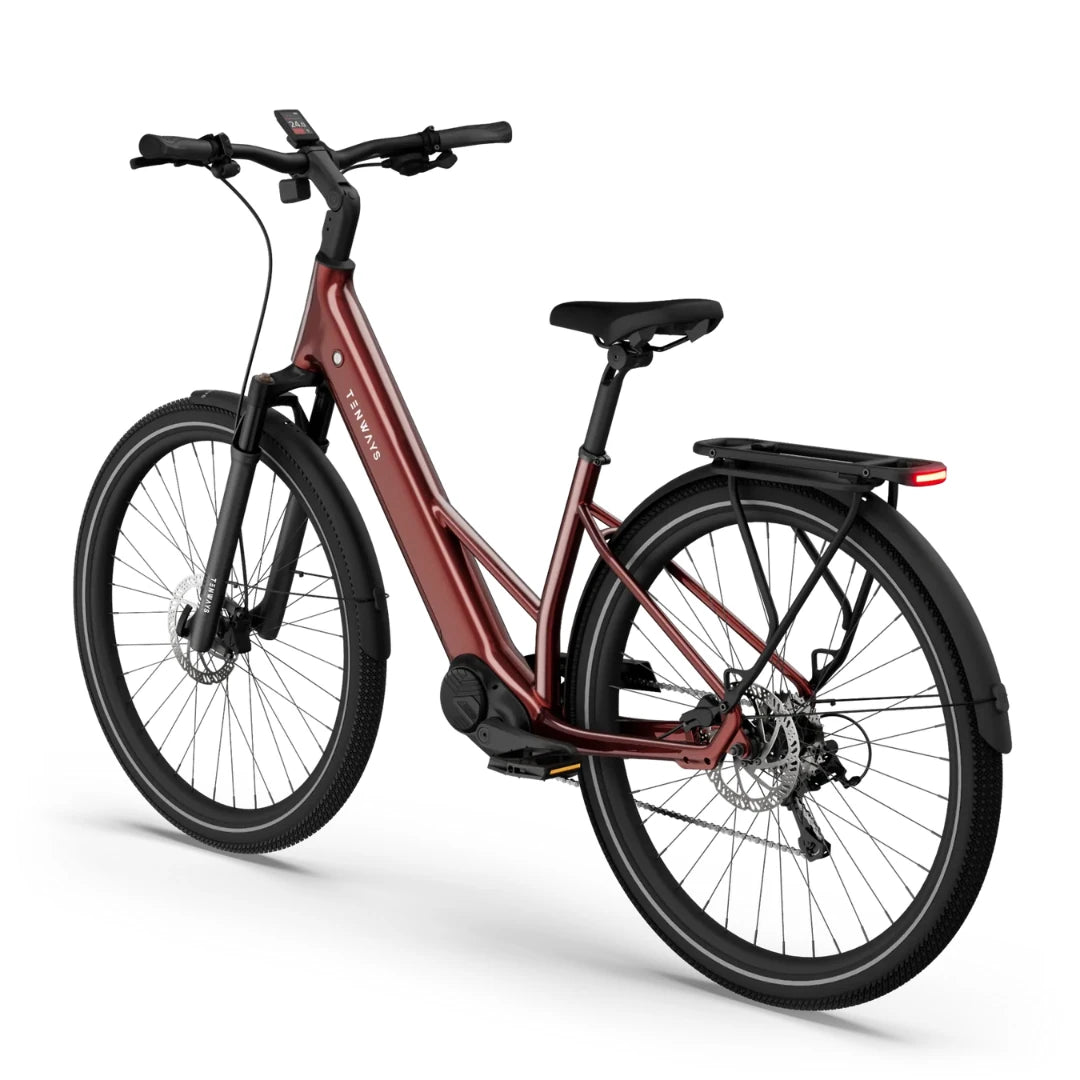

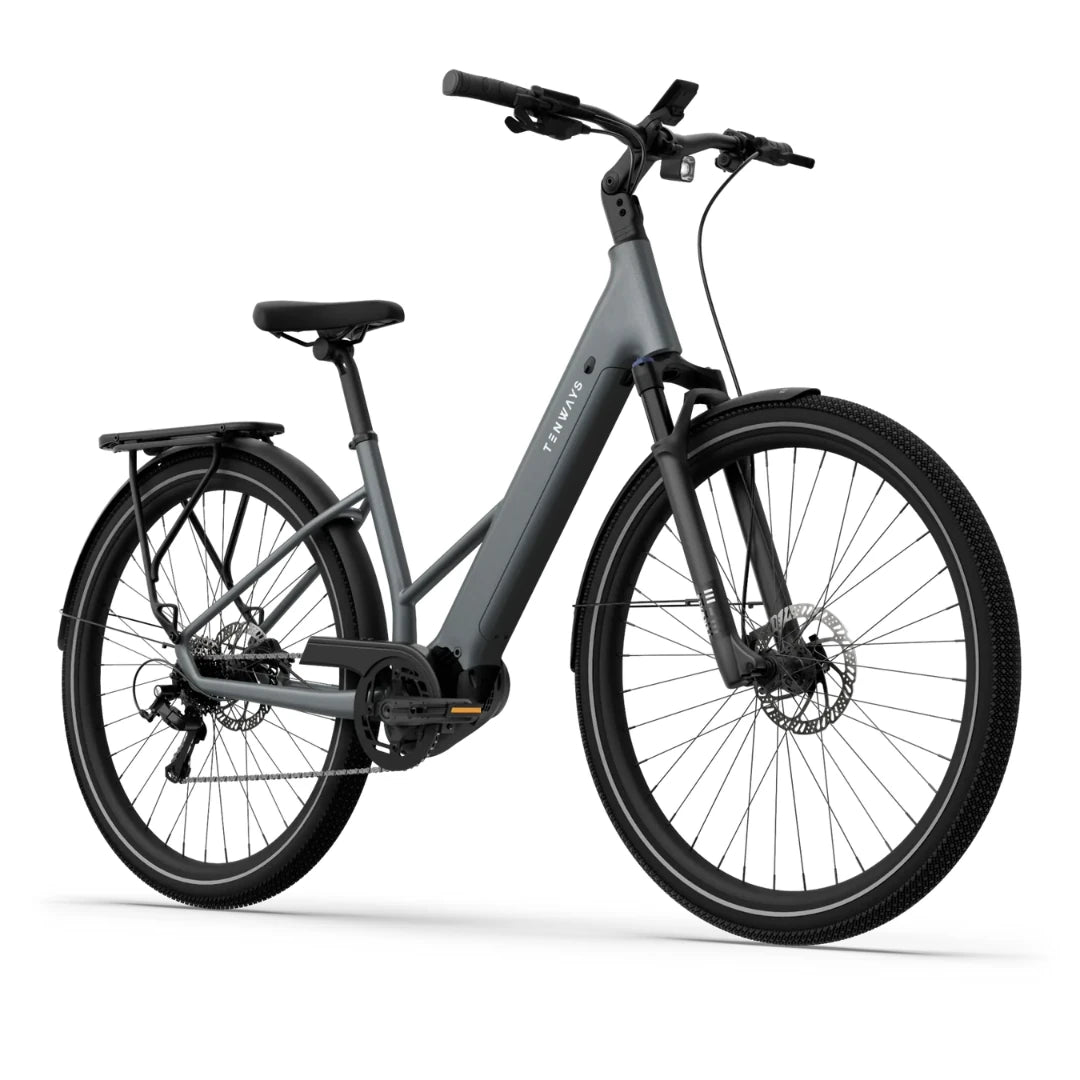

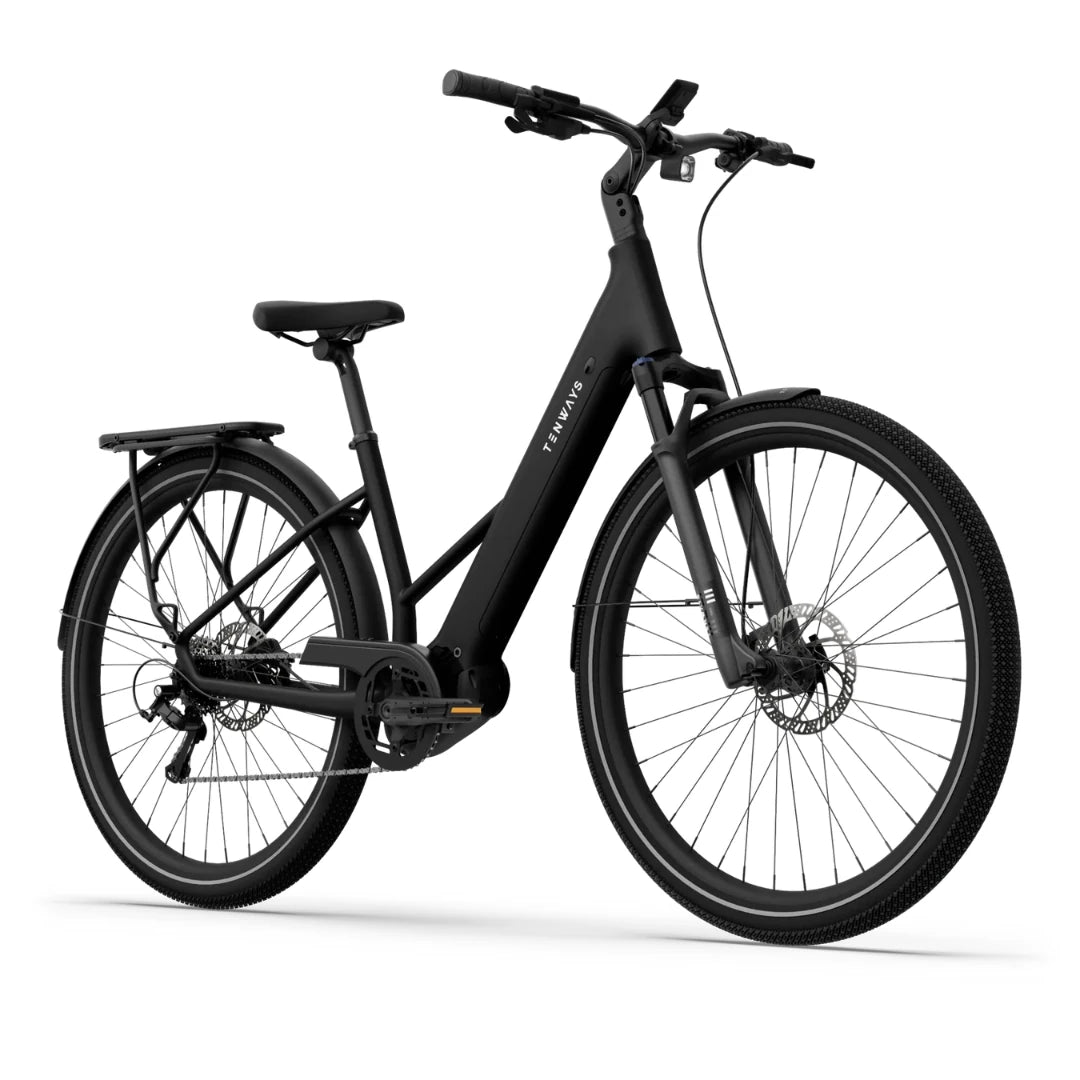

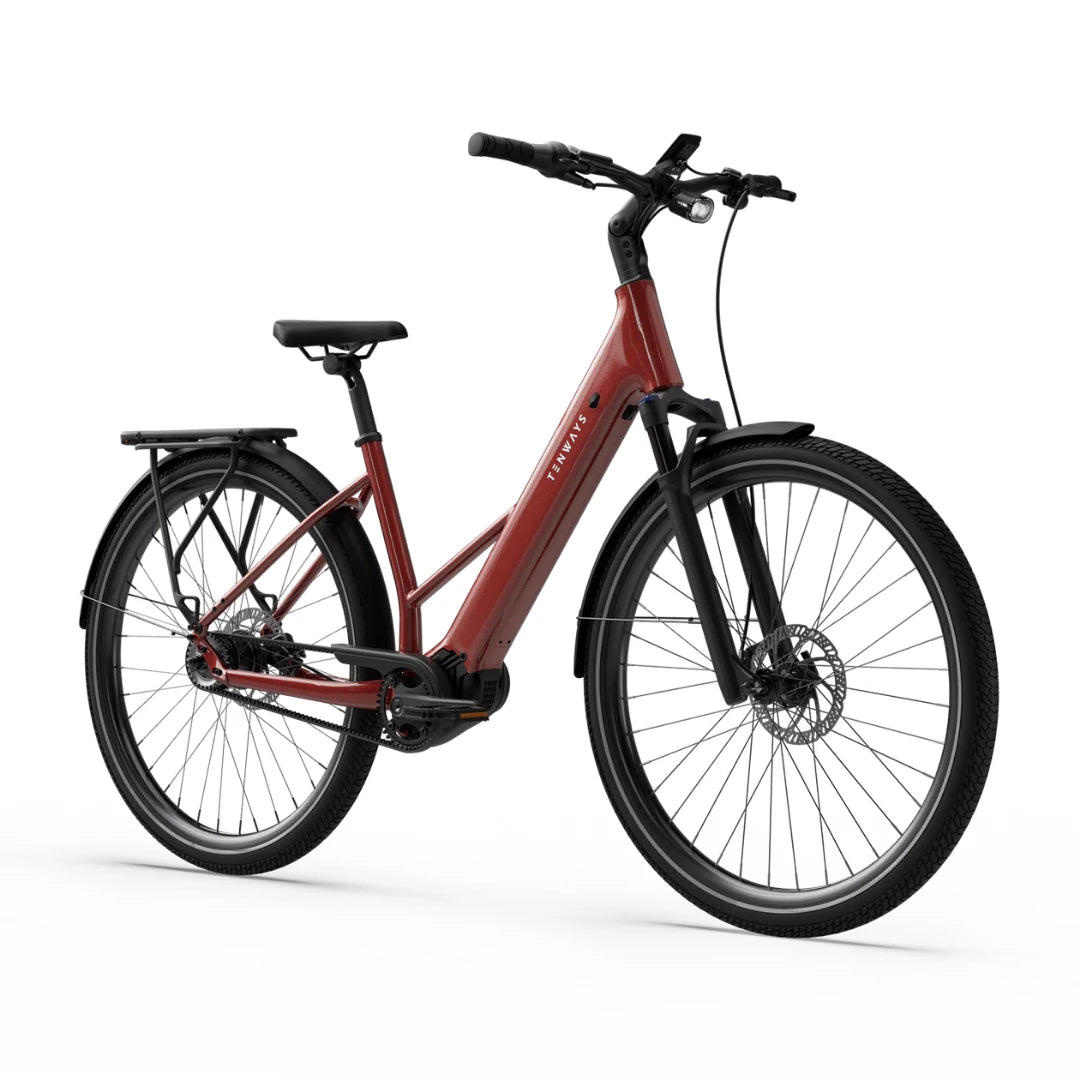

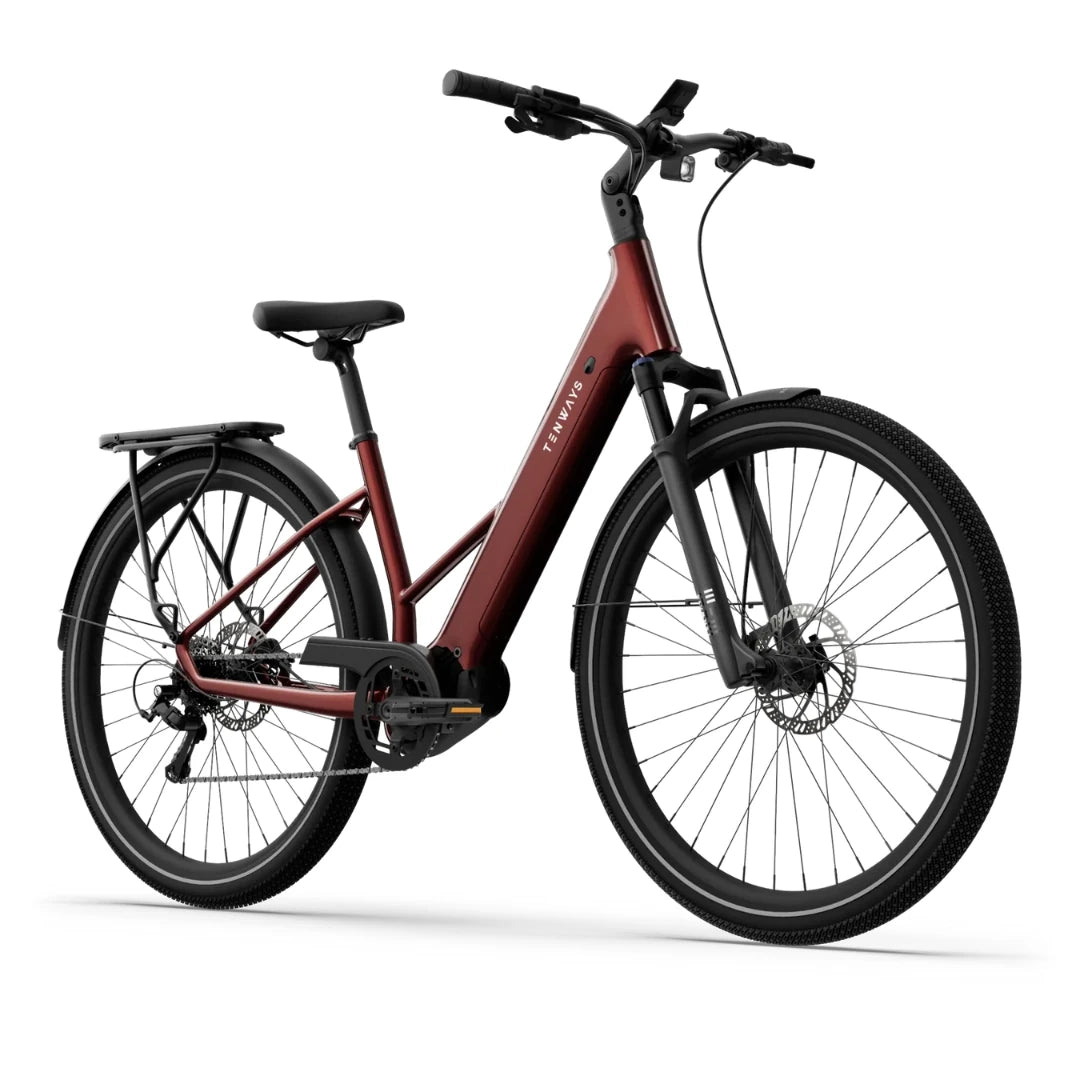

Electric bike TENWAYS AGO Air
An elegant trekking pleasure that combines sophisticated design with robust versatility.

Who is this e-bike best suited for?
The TENWAYS AGO Air is created for cyclists who do not compromise between daily urban commuting and weekend getaways into nature. Whether you are conquering city asphalt on your way to work or exploring gravel paths outside the city, this trekking electric bike offers the perfect balance of power, comfort, and load capacity.
Thanks to its elegant, integrated design and exceptional adaptability, it is the ideal choice for those looking for a reliable means of transport with which they can easily carry cargo, climb steep hills, and maintain complete control and superior style while doing so.

Powerful mid-drive motor and precise sensor

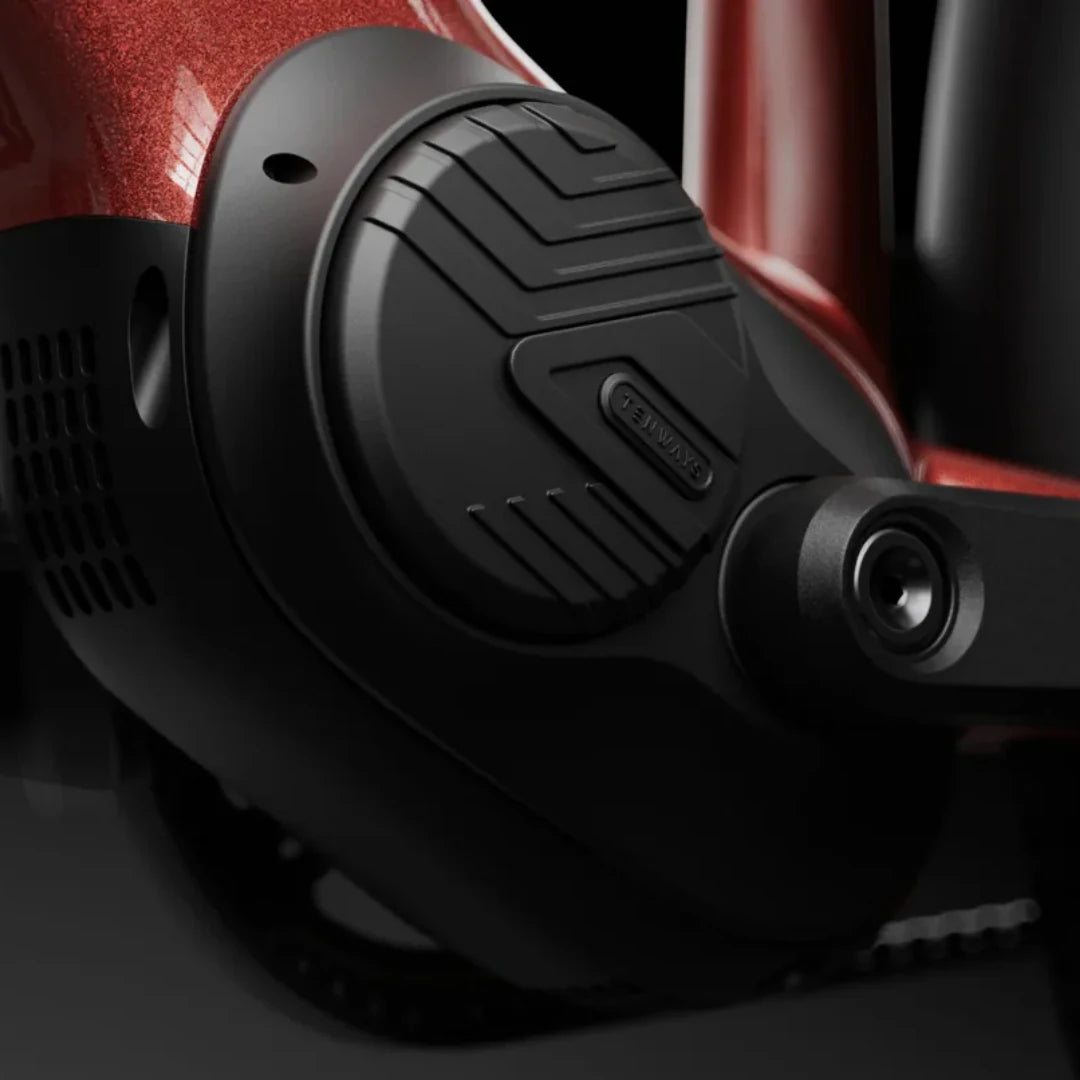

The heart of the AGO Air model is an advanced TENWAYS mid-drive motor, which offers an optimal 250 W of power for smooth and legal assistance up to 25 km/h (limited). What truly sets this bike apart from the average is its impressive 80 Nm of maximum torque. This means you will conquer steep hills and rides with a fully loaded rack with ease and without unnecessary sweating.
Perfect synchronization with your rhythm is handled by the torque sensor integrated into the motor, which measures your pressure on the pedals in real-time and instantly adjusts the assistance power. This makes the ride feel completely natural and fluid.

Your ride, your choice of drivetrain
The TENWAYS AGO Air gives you the choice between two premium transmission systems, tailored to your needs:

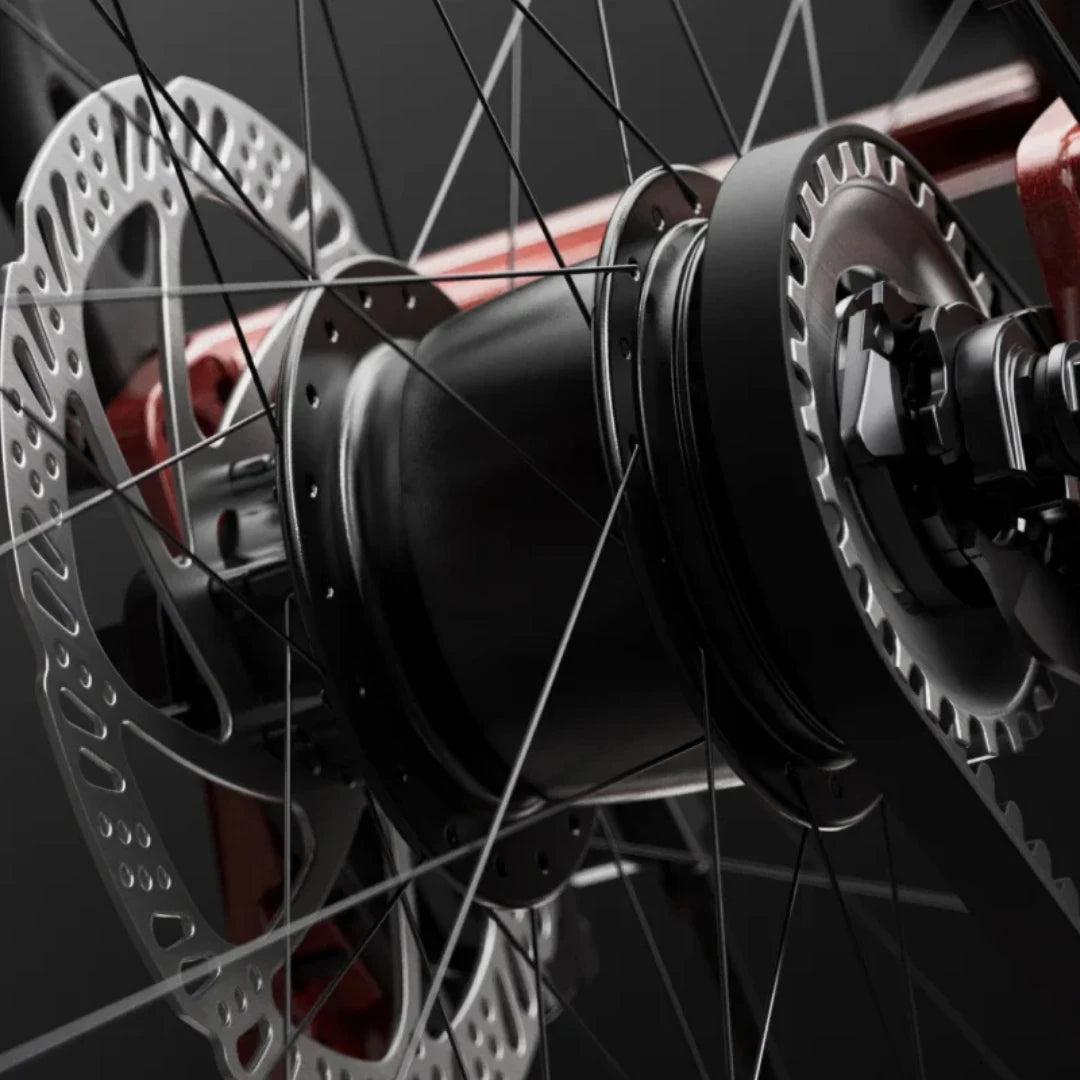

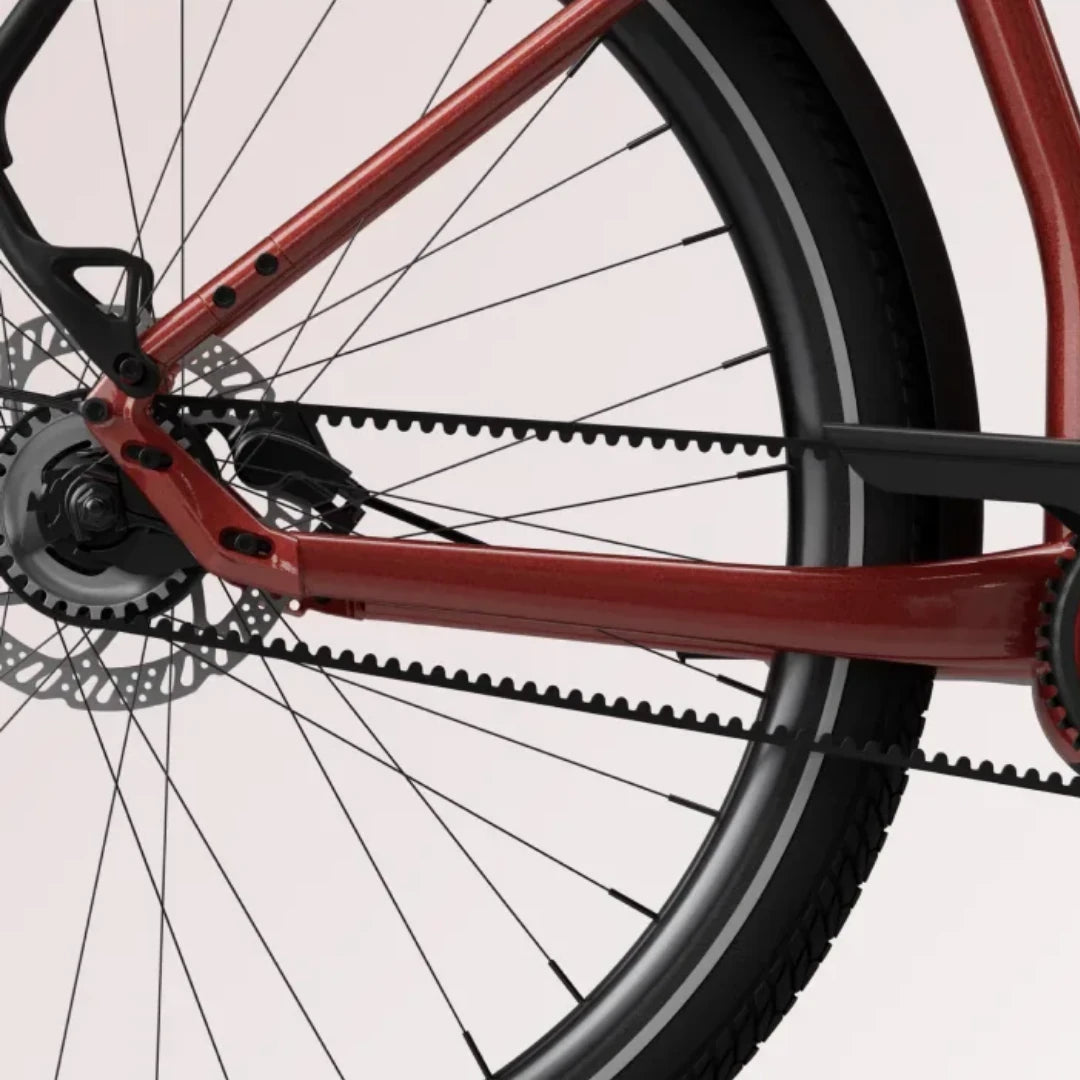

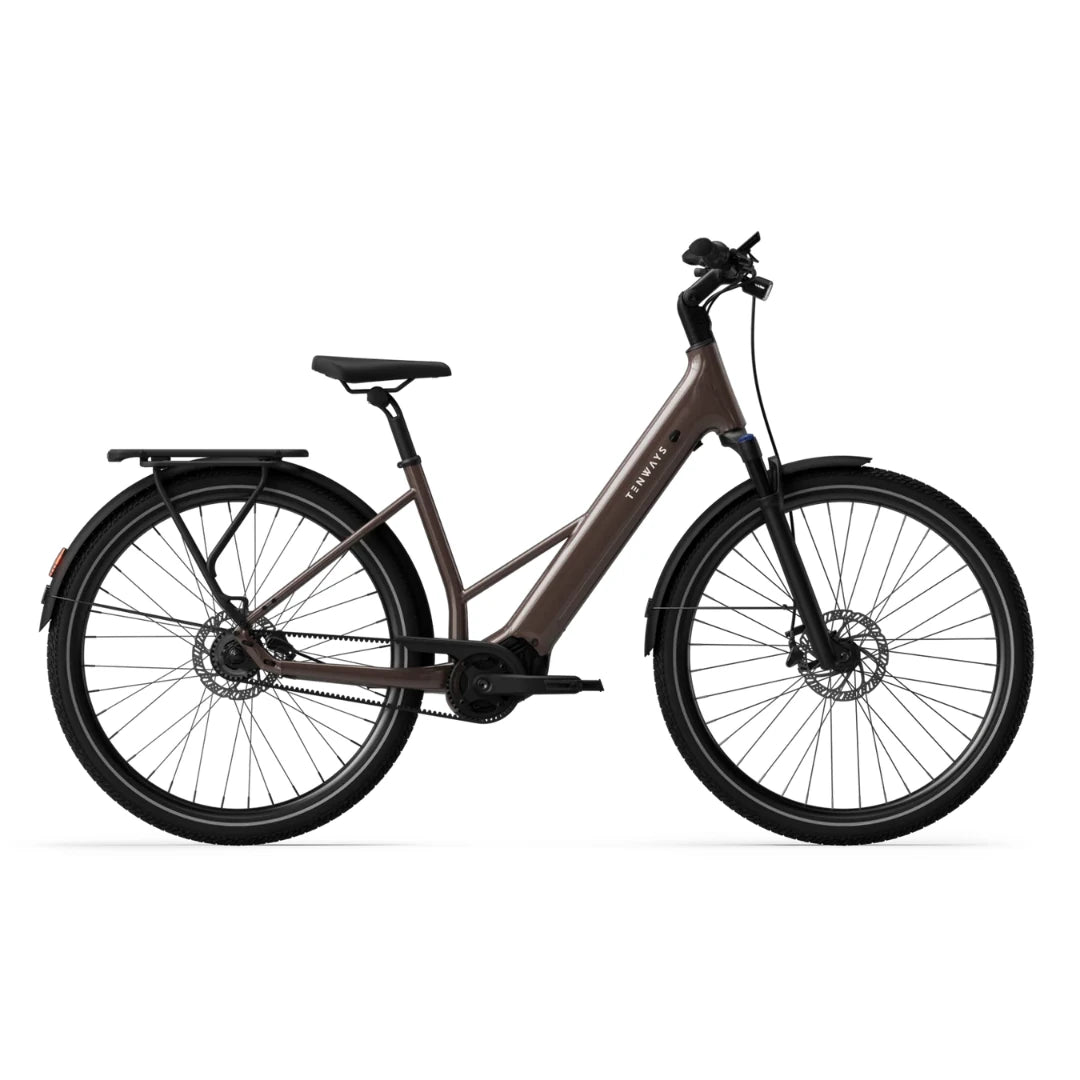

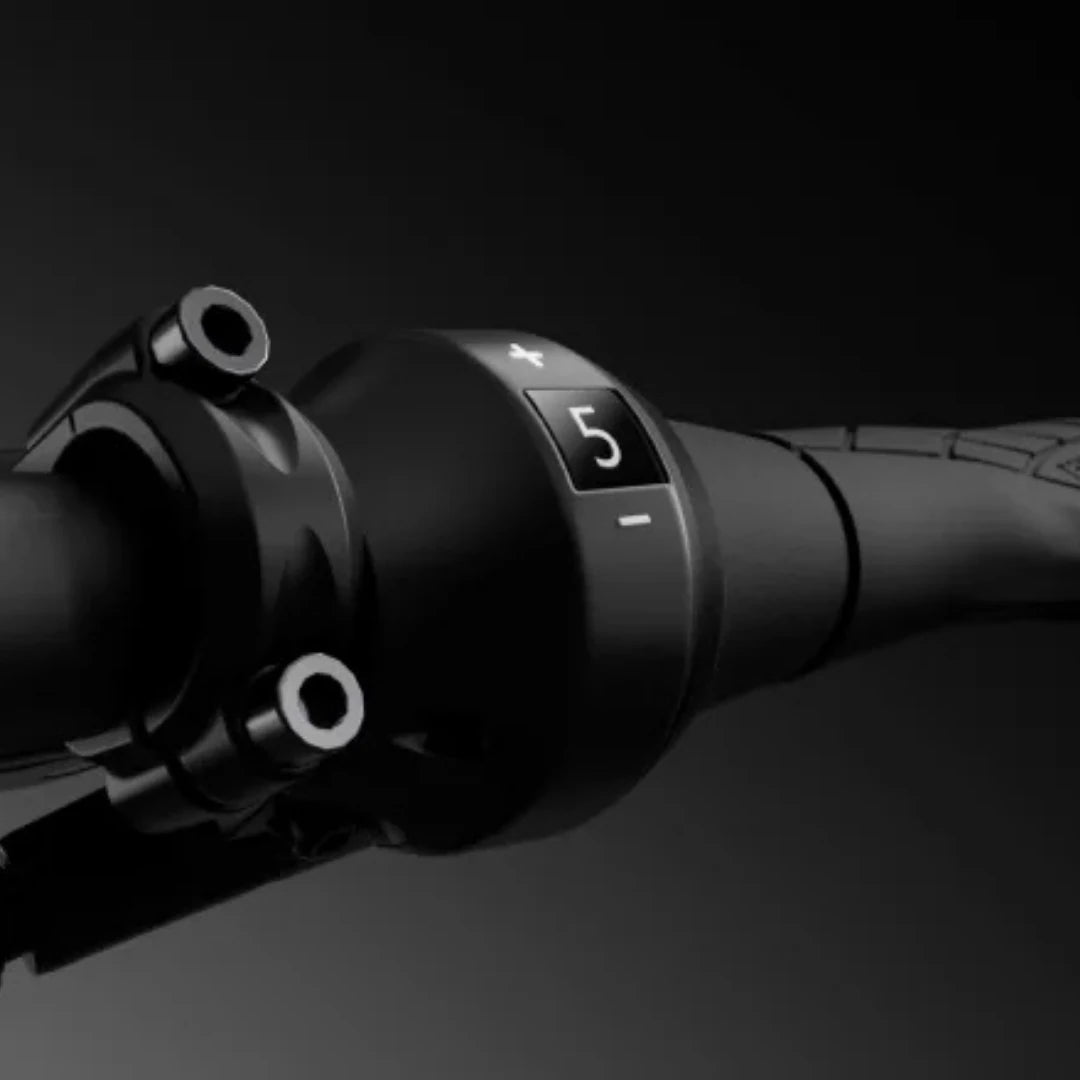

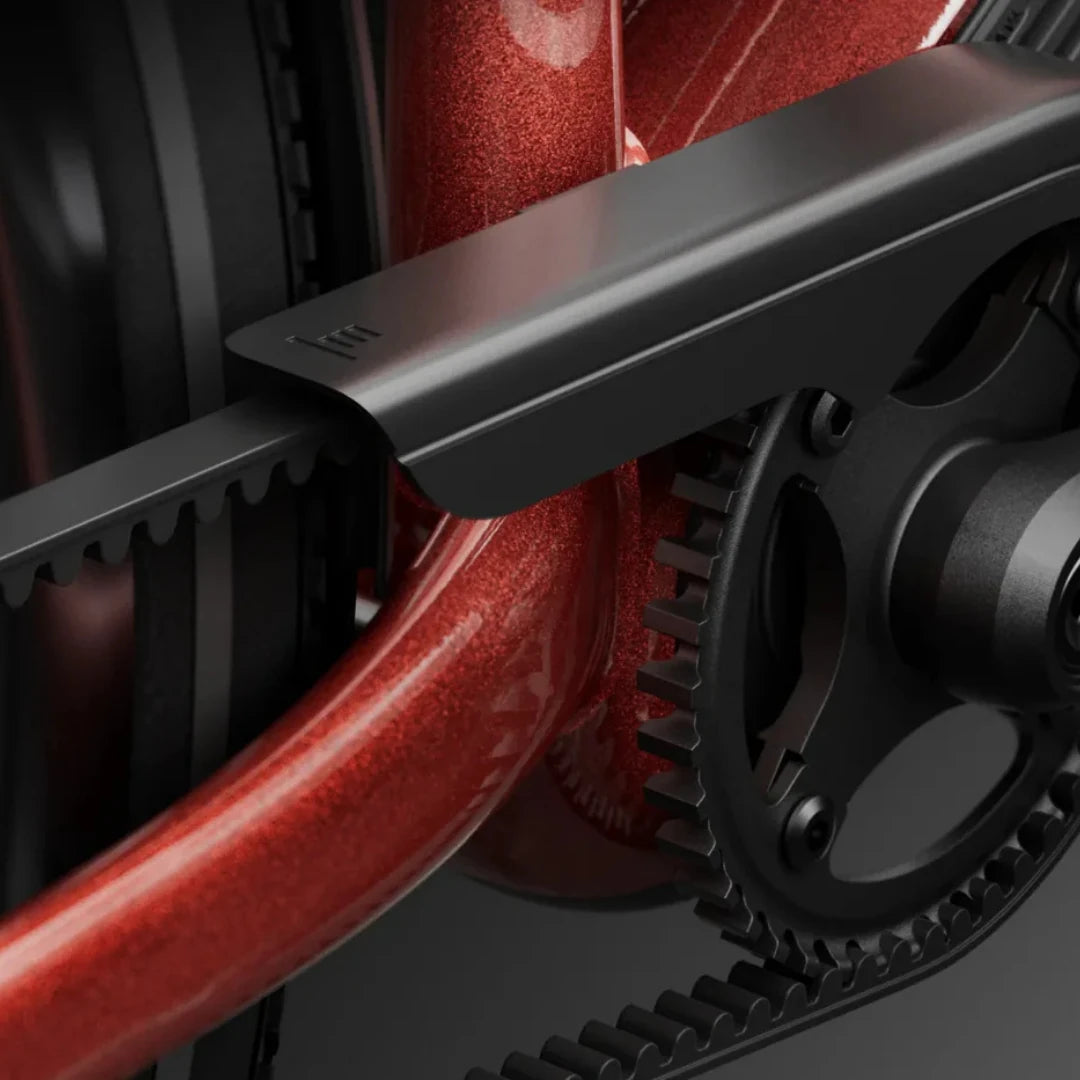

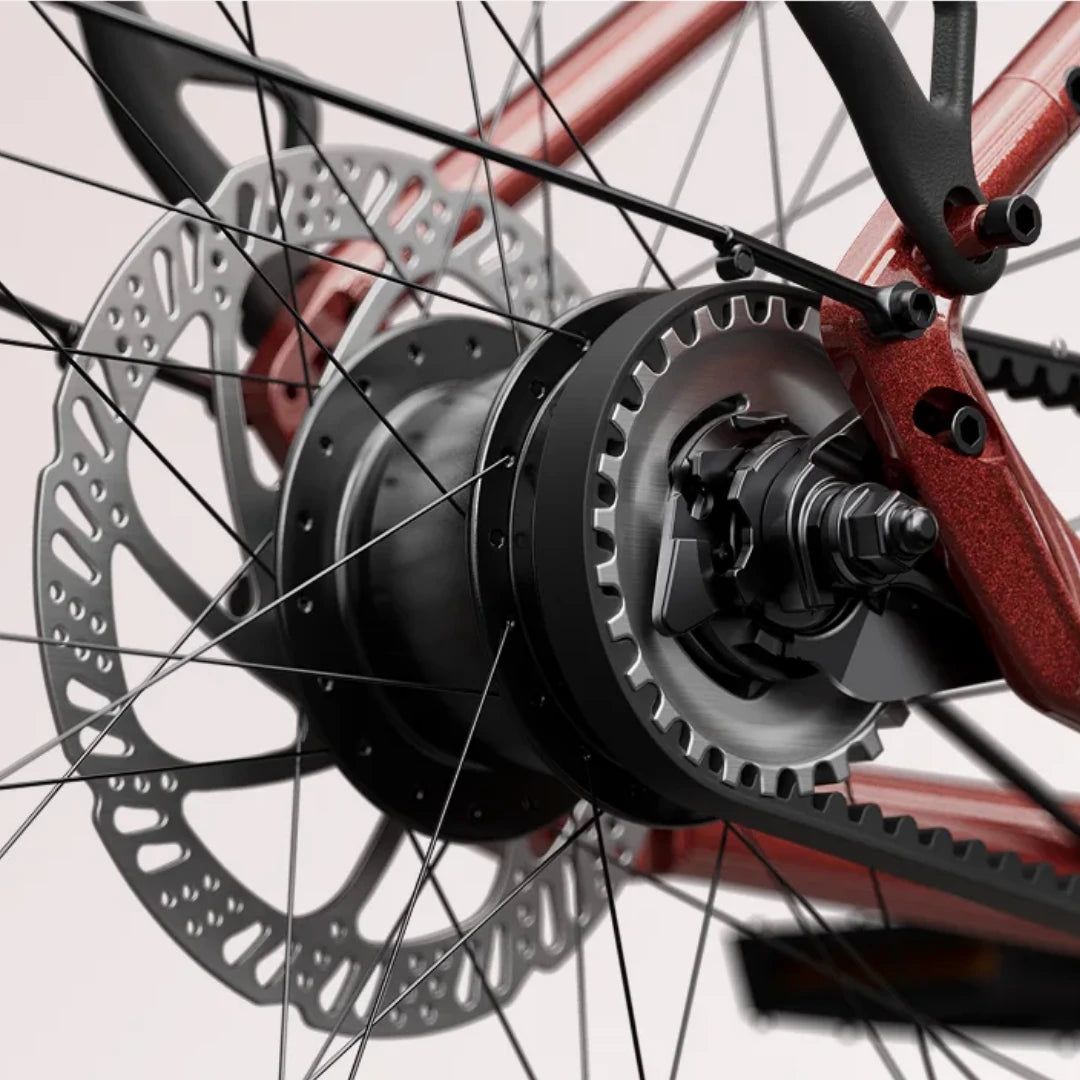

Belt Drive version: The ultimate choice for those who hate maintenance. Equipped with an extremely durable Gates CDX Carbon Belt and an internal Shimano NEXUS 5-Speed hub gear (with a gear range of 100% - 263%). No grease, no dirt, completely maintenance-free, and always smooth shifting.

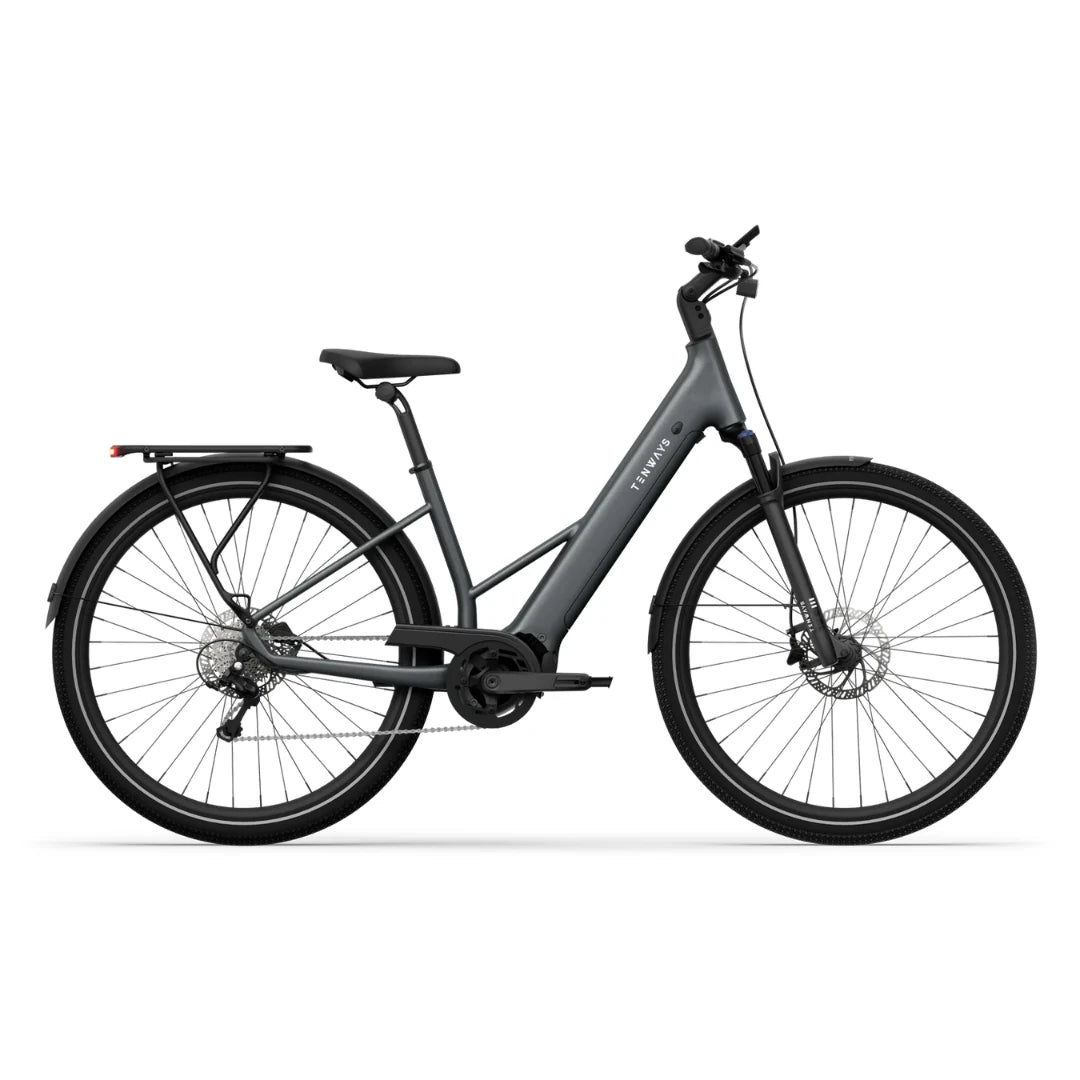

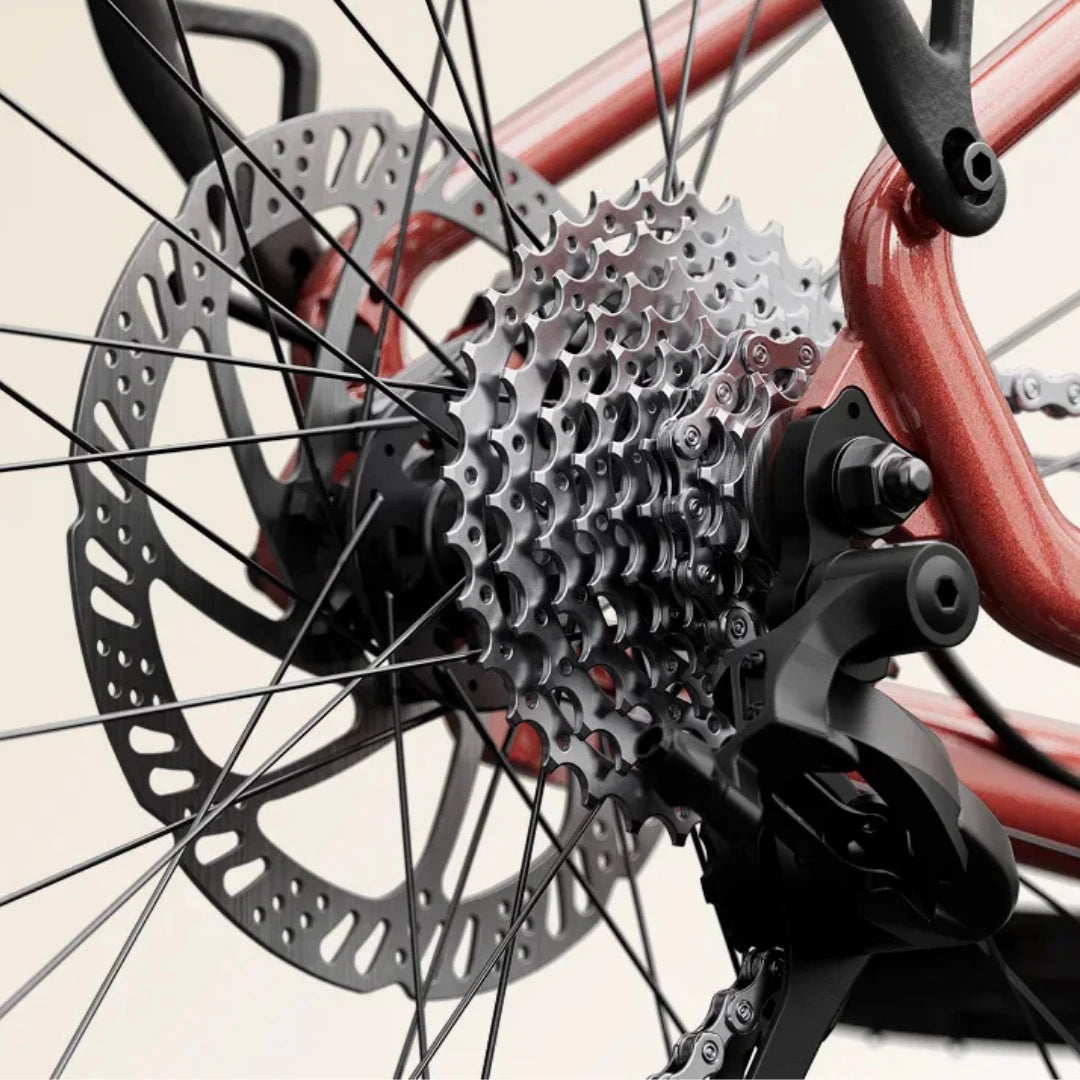

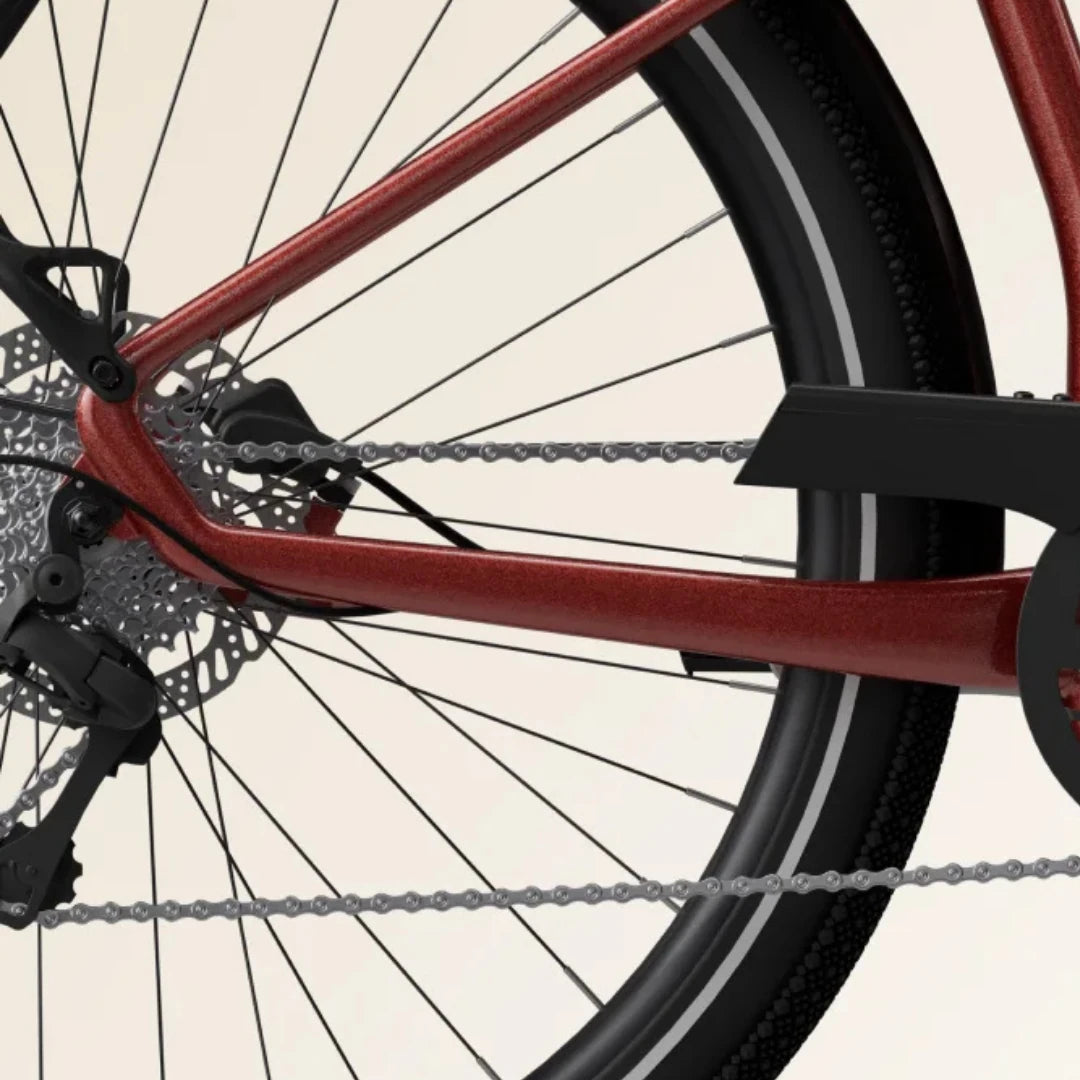

Chain Drive version: A classic for those who want a wider range for specific terrains. It uses a reliable and precise Shimano CUES 9-Speed derailleur with a classic chain, ensuring maximum flexibility on more demanding climbs.

Hidden energy for long distances
Don't worry about range. The bike is equipped with a high-performance lithium-ion battery with a capacity of 561.6 Wh (36 V, 15.6 Ah). This allows for an assisted range of up to 100 km on a single charge (depending on terrain, weight, and assistance level).

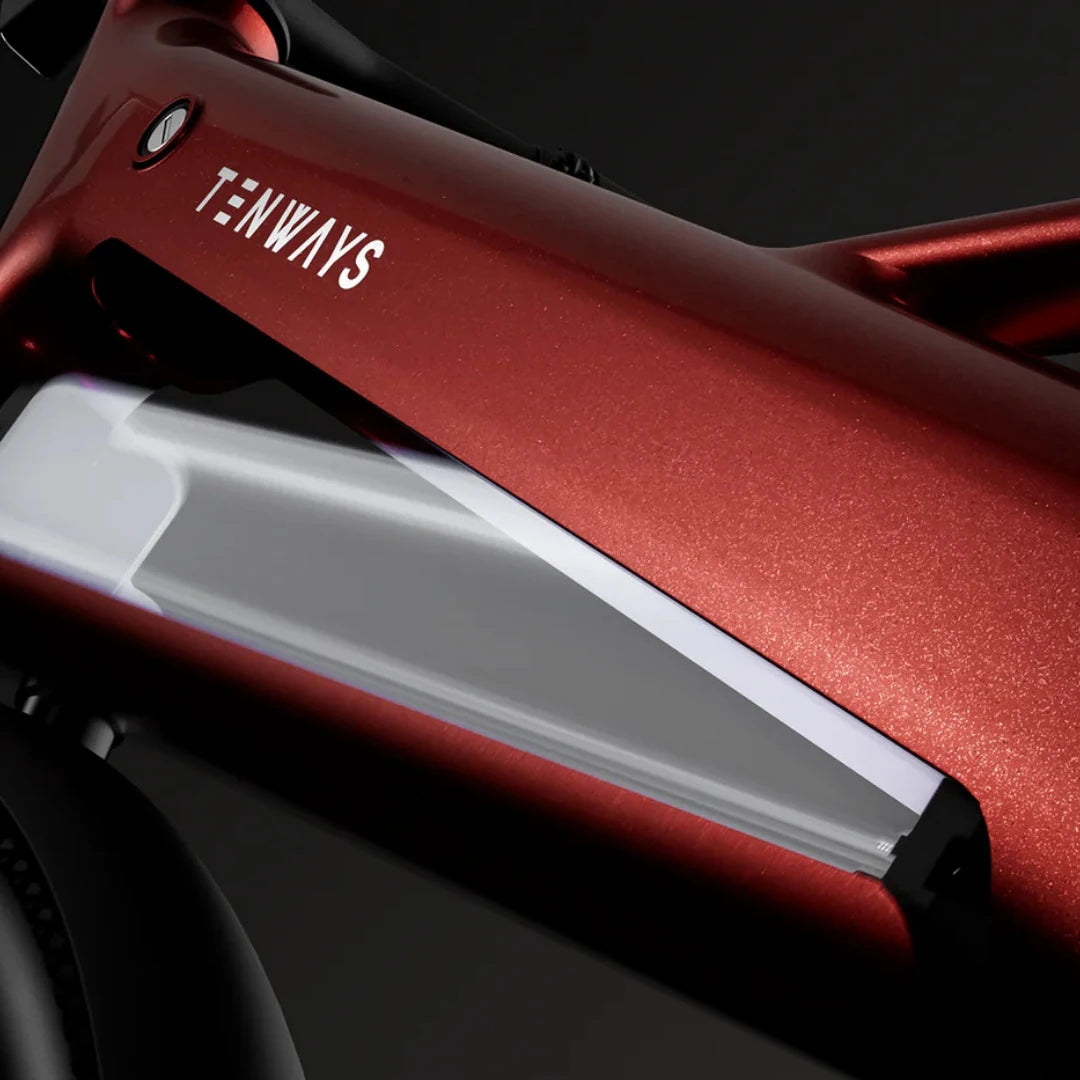

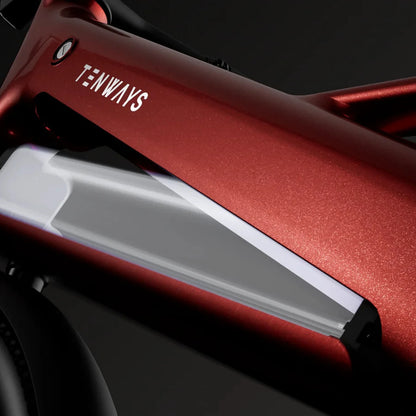

The battery is elegantly and seamlessly integrated into the slim frame of the bike, maintaining clean design lines, while also being removable, meaning you can easily take it out and charge it in your office or apartment.

Smart TFT display and premium connectivity

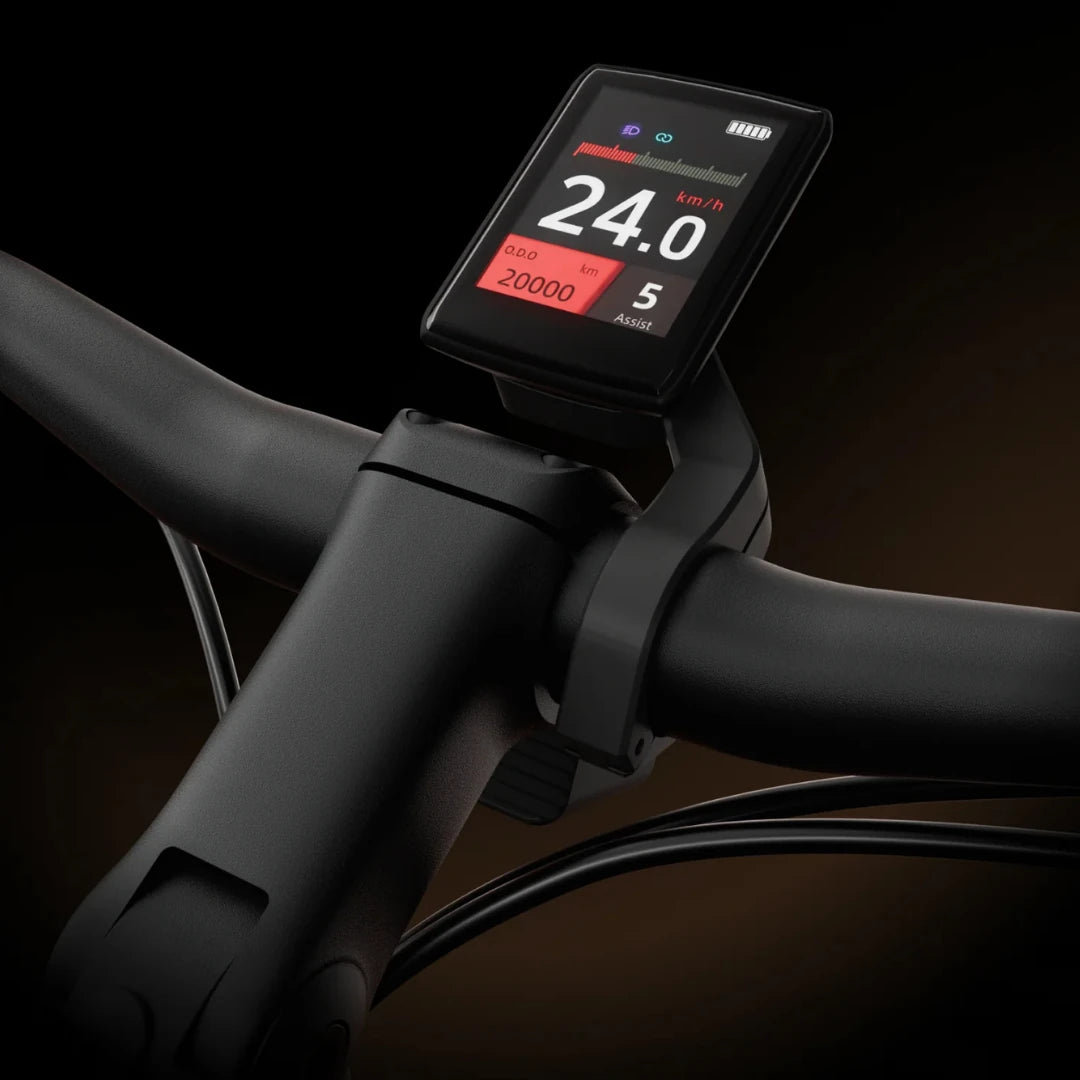

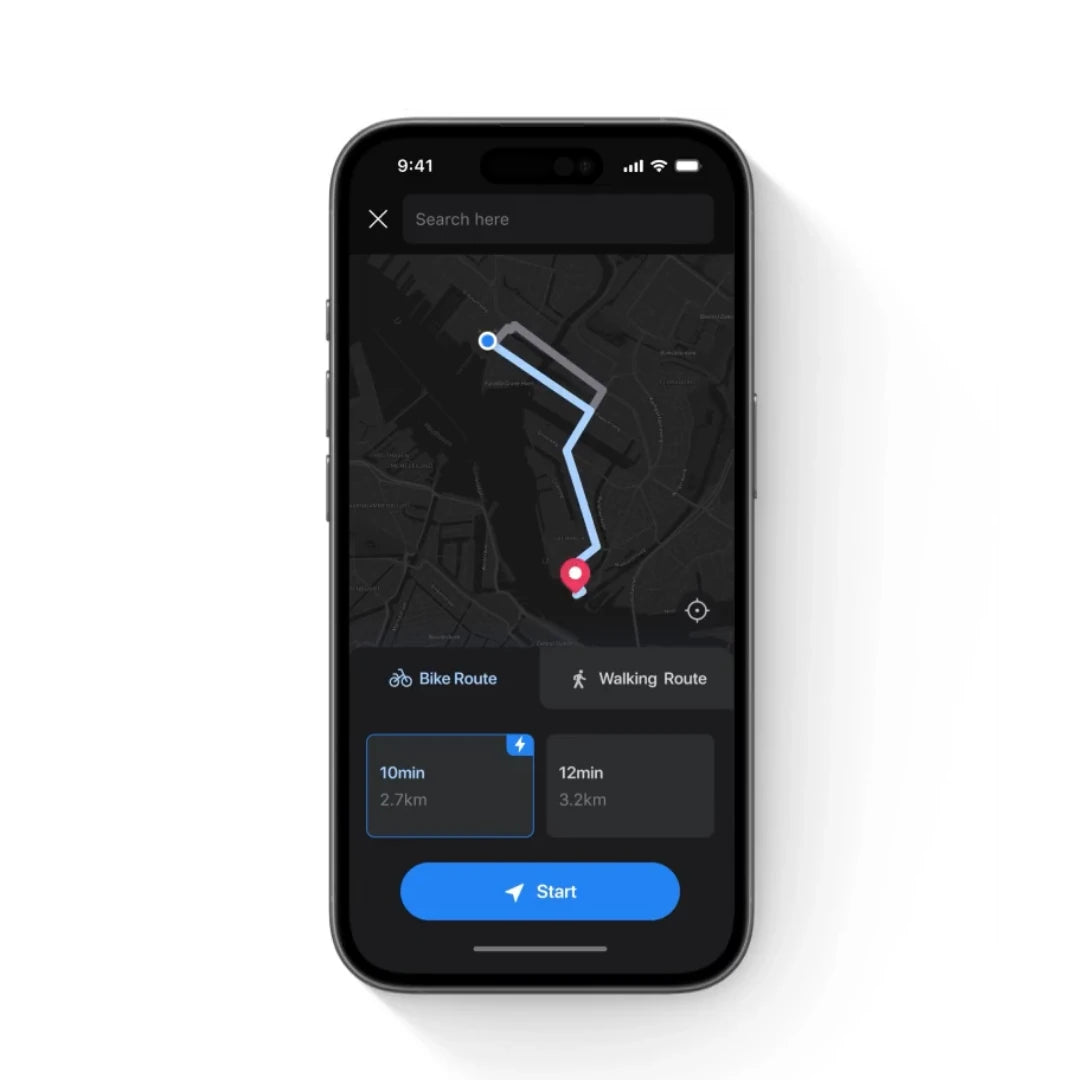

All key information is literally before your eyes on the crystal-clear DIGIWISE BC240+K 31 TFT color display. The system not only shows speed and battery status but also enables real-time Navigation Casting directly from your phone to the bike's display.

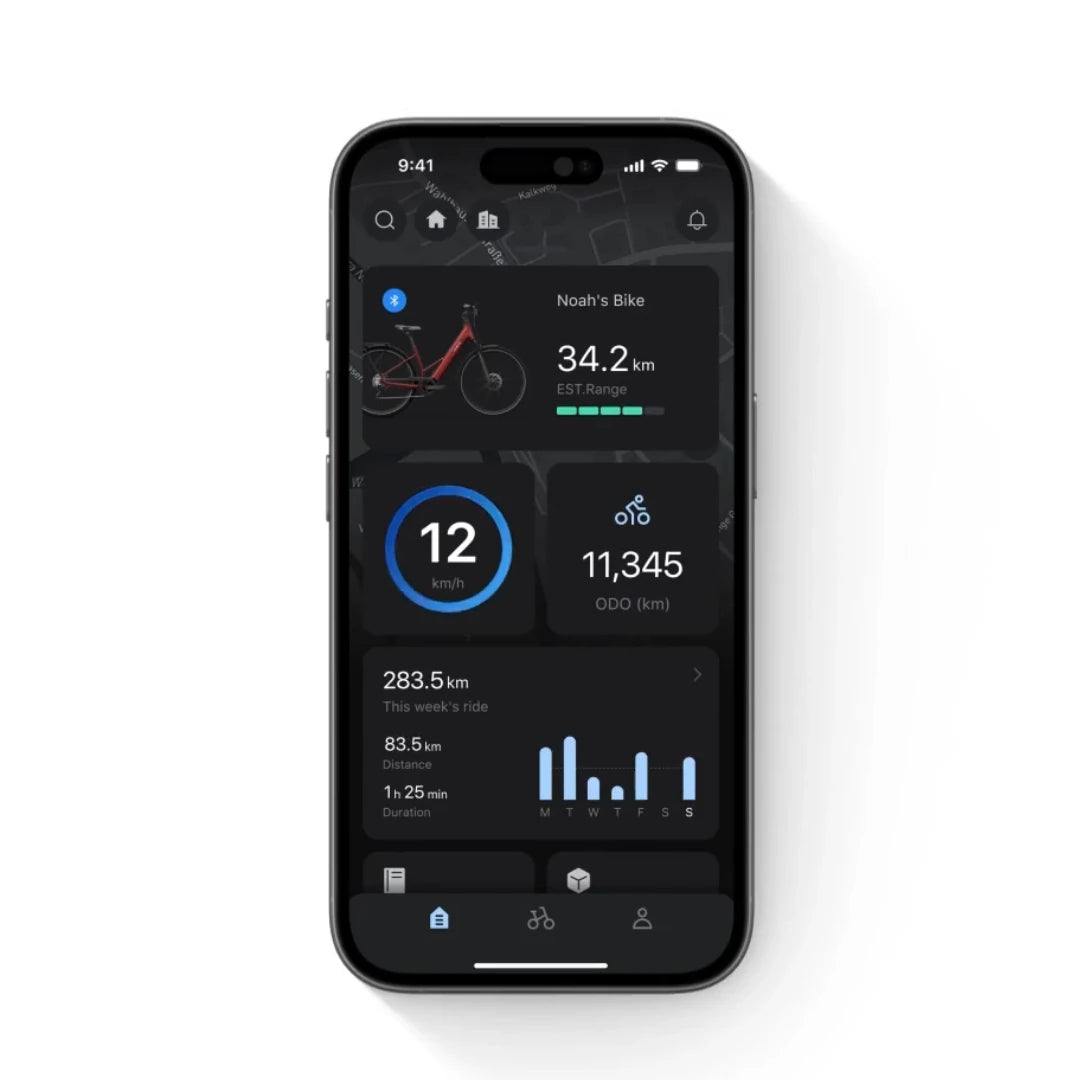

Safety is ensured by two unlocking methods (Bluetooth recognition or manual password entry). The display menu supports 7 European languages (EN, DE, NL, FR, IT, ES, DA), and the bike can be fully connected to the TENWAYS App for live data viewing, navigation, and access to the help center.

Perfect ergonomics for long distances

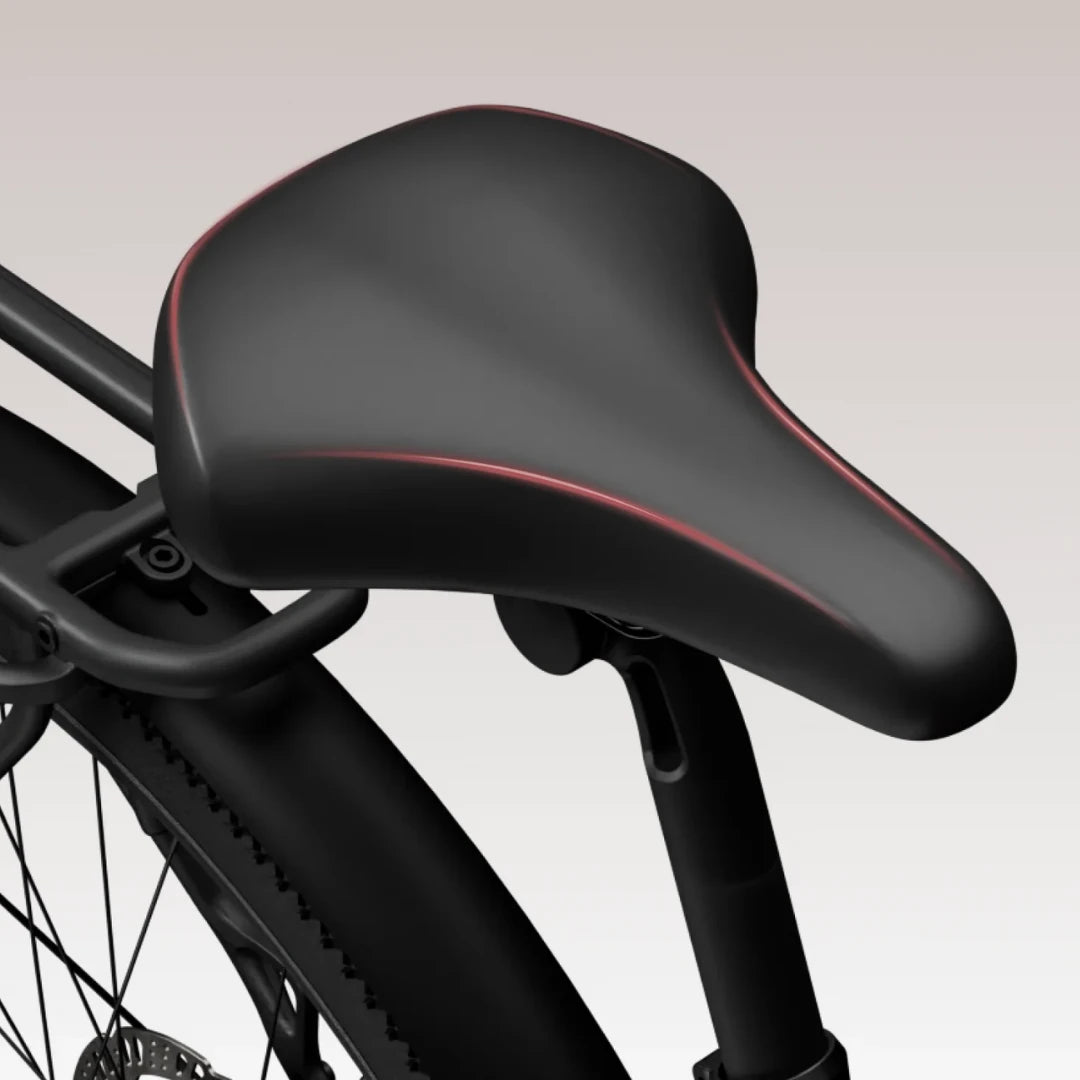

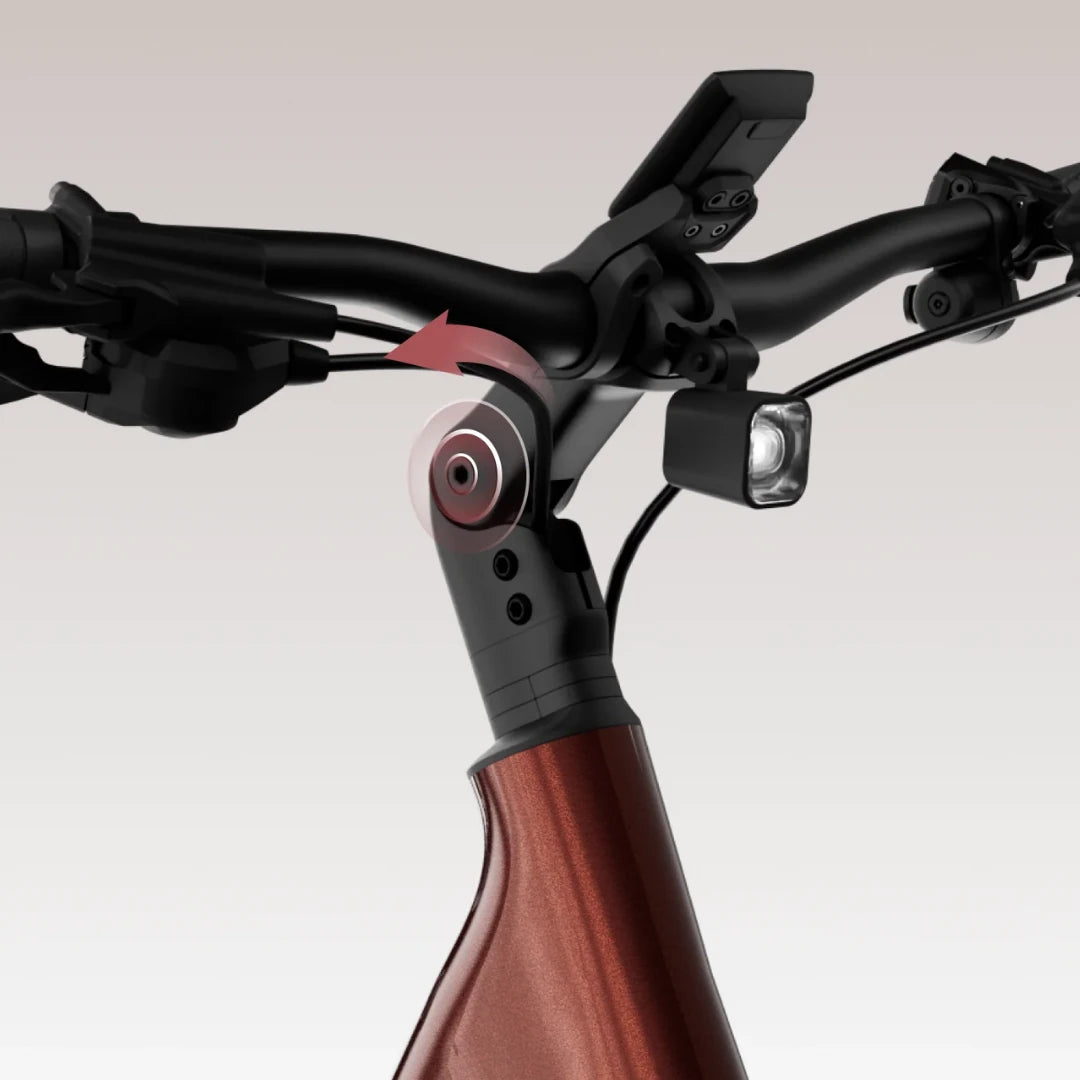

Comfort is the top priority for trekking bikes. The AGO Air adapts to your physique with an adjustable stem, which allows for height and angle adjustment for the perfect posture. For comfortable seating, regardless of the distance, the ergonomic and padded Selle Royal saddle takes care of you.

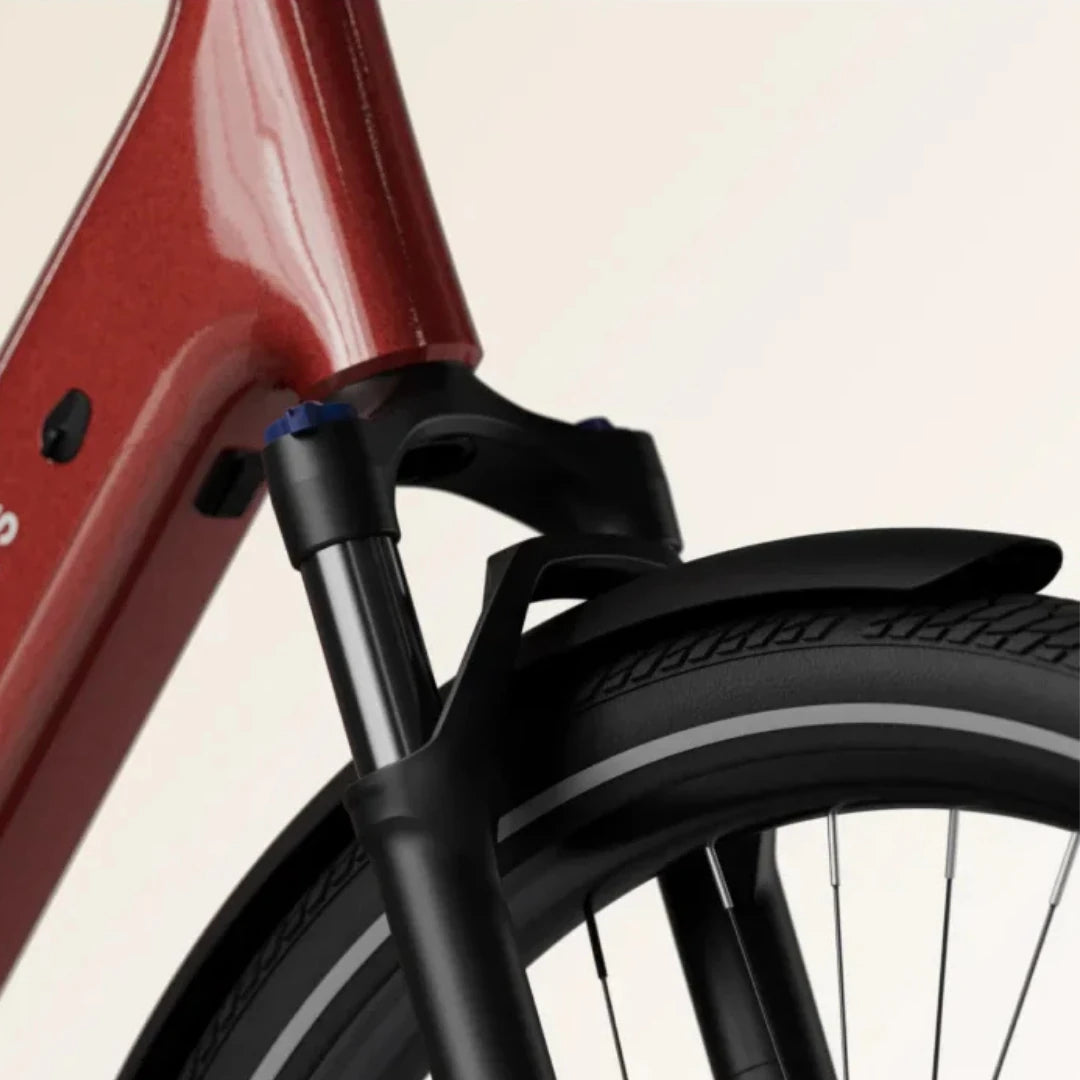

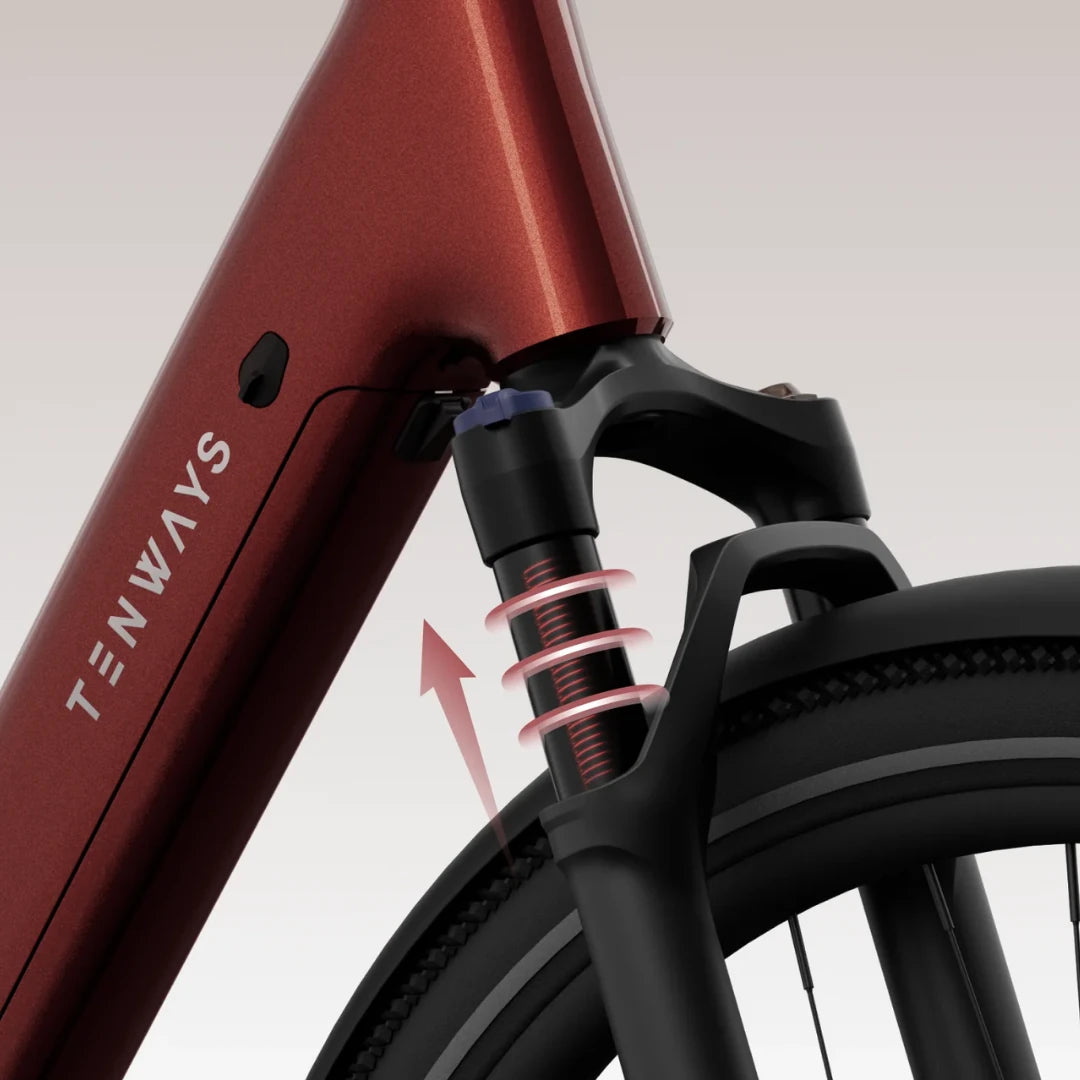

The front suspension fork effectively absorbs shocks on uneven terrain and ensures a stable ride. The belt-drive model uses a premium air suspension fork, while the chain-drive model features a robust hydraulic suspension fork.

Safety, tires, and reliable stopping

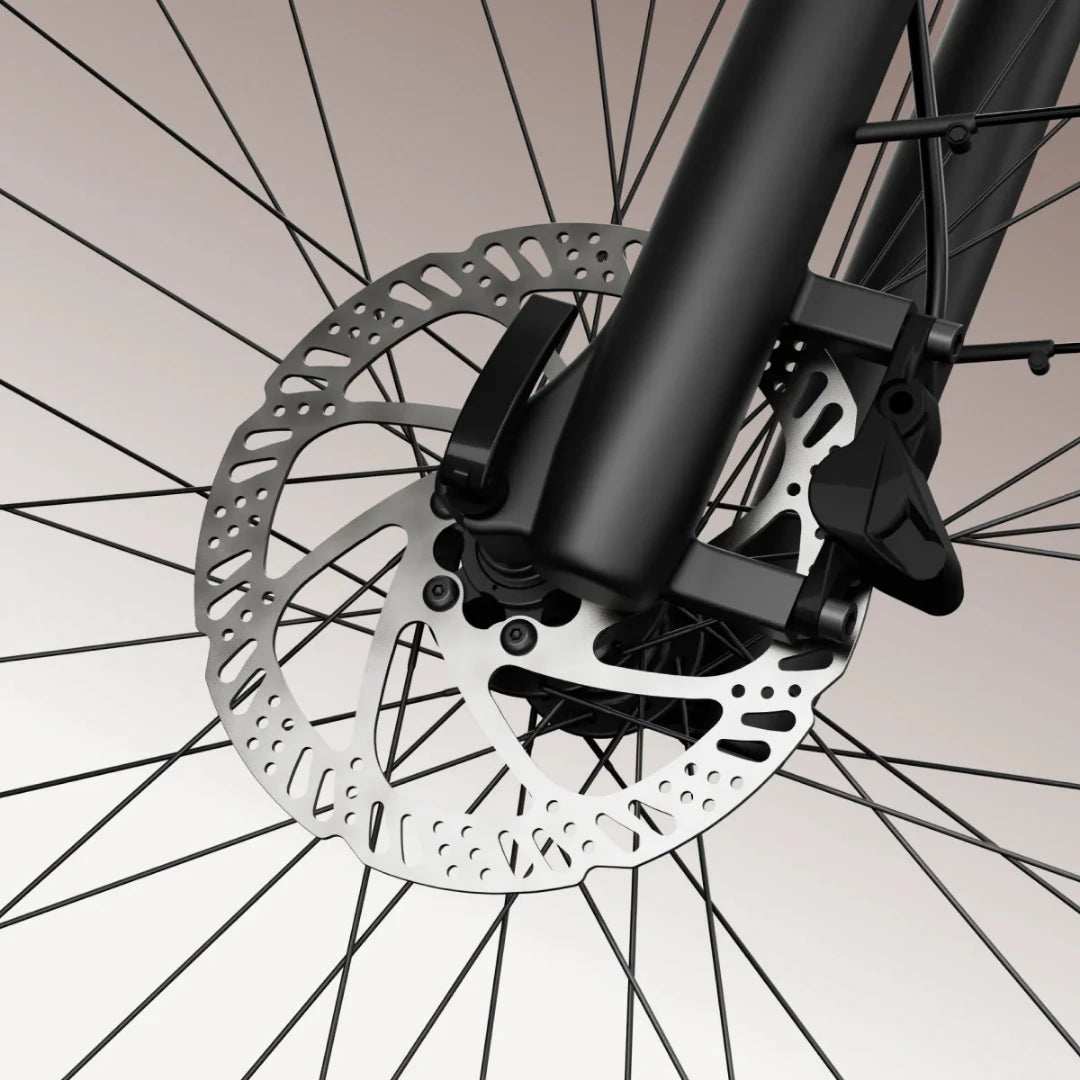

With heavier loads and higher assistance speeds, reliable braking is crucial. That is why the bike is equipped with premium SHIMANO hydraulic disc brakes, which provide exceptional braking power and stability in all weather conditions.
The bike sits on durable rims (ALLOY DB RIM) with bearing hubs and KENDA 700x50C (60TPI EPS) tires. These tires are wide enough for a comfortable ride on gravel, while also featuring a reflective line that drastically improves your visibility in traffic in low-light conditions.

Ready for cargo and night riding

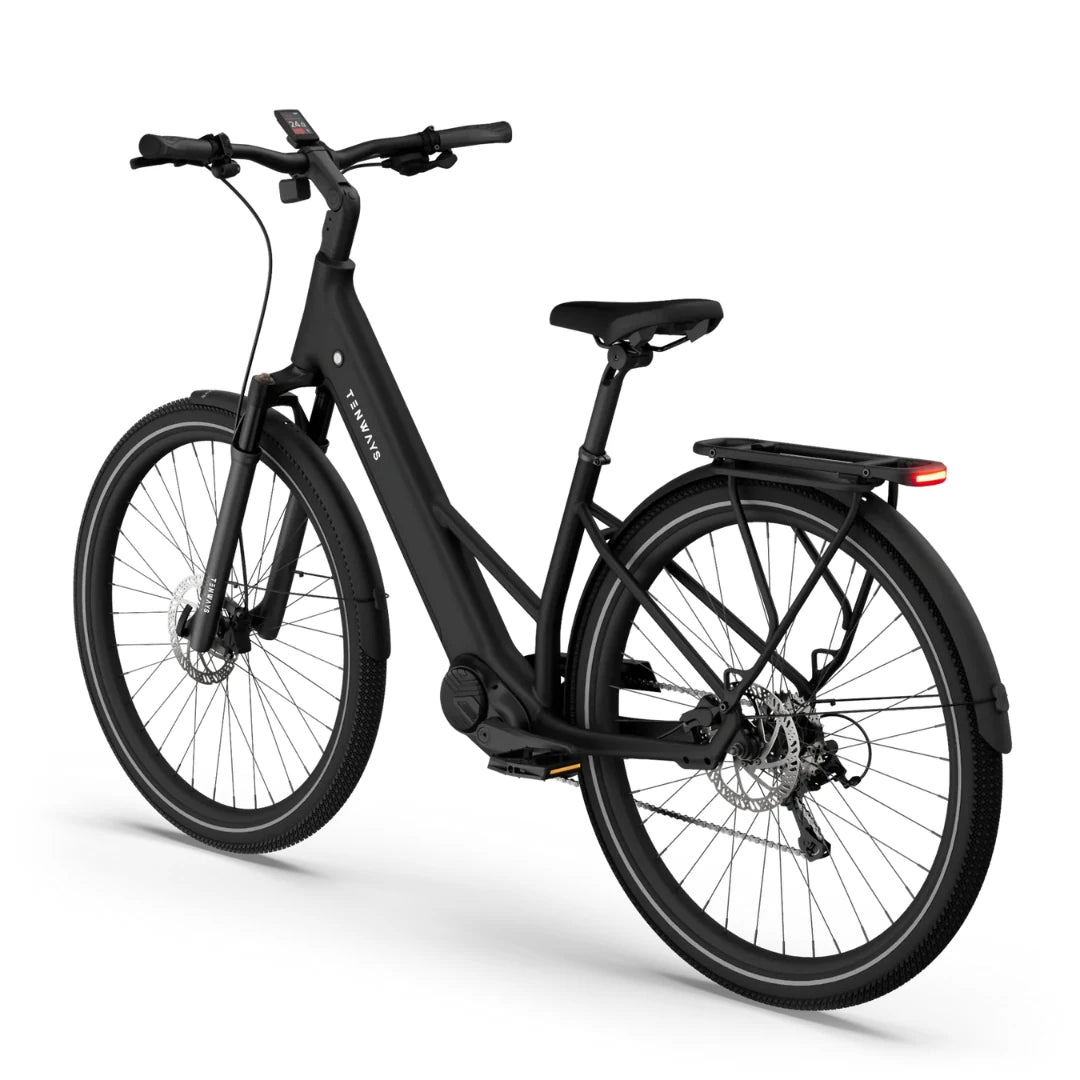

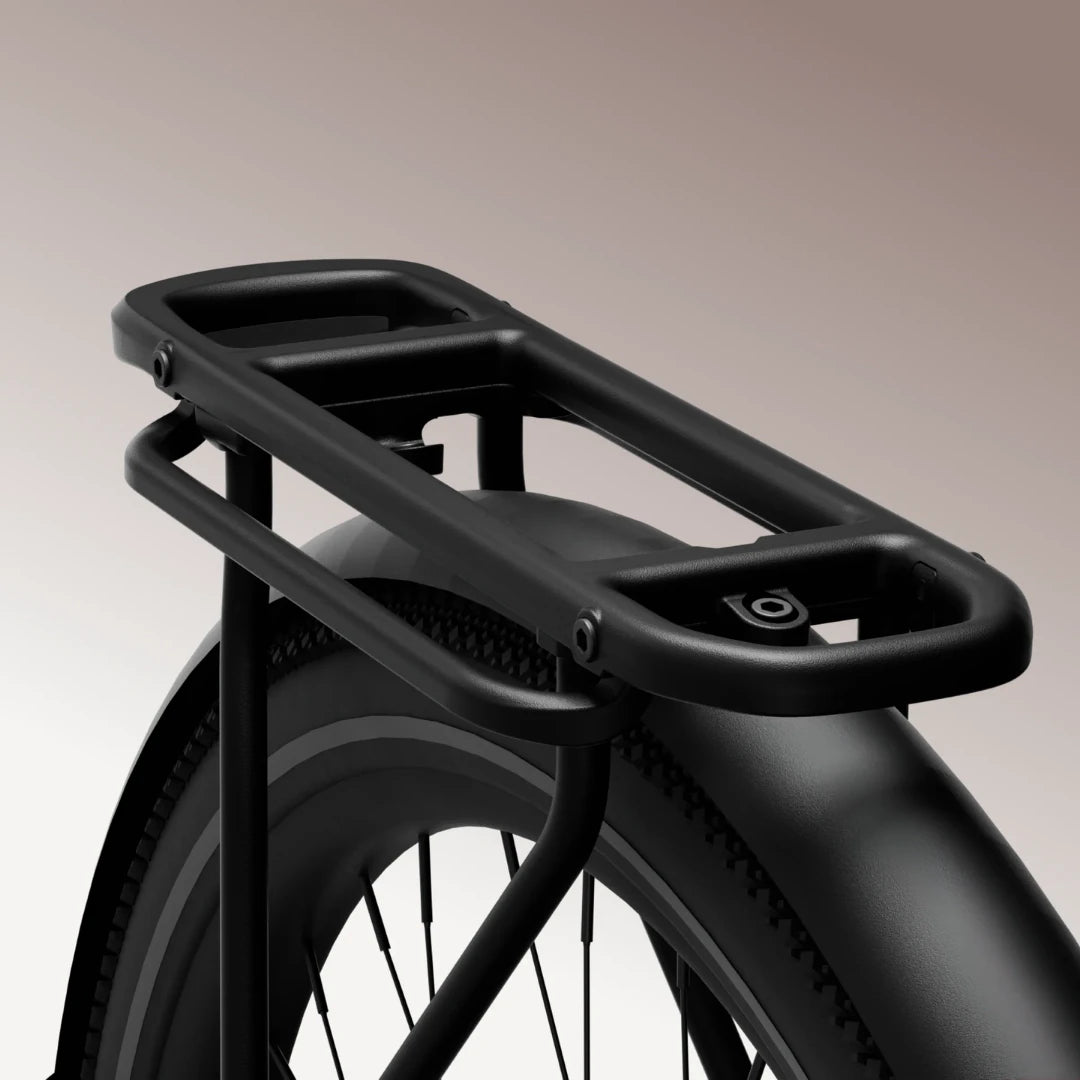

The TENWAYS AGO Air is a true workhorse on two wheels with exceptional load capacity – the maximum permitted weight is as much as 145 kg (including the bike, cyclist, and cargo). The rear carrier is included as standard and is ready for mounting pannier bags.

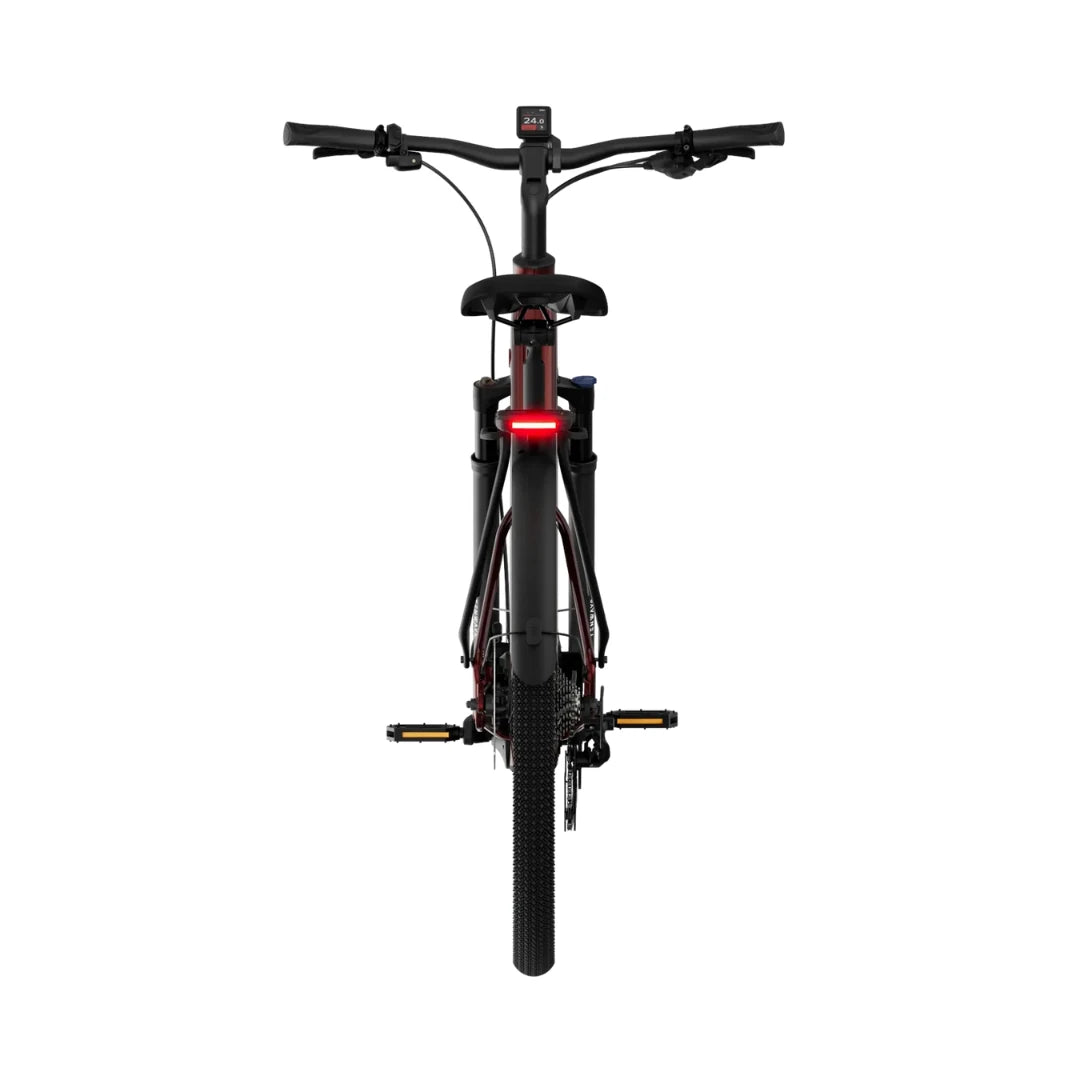

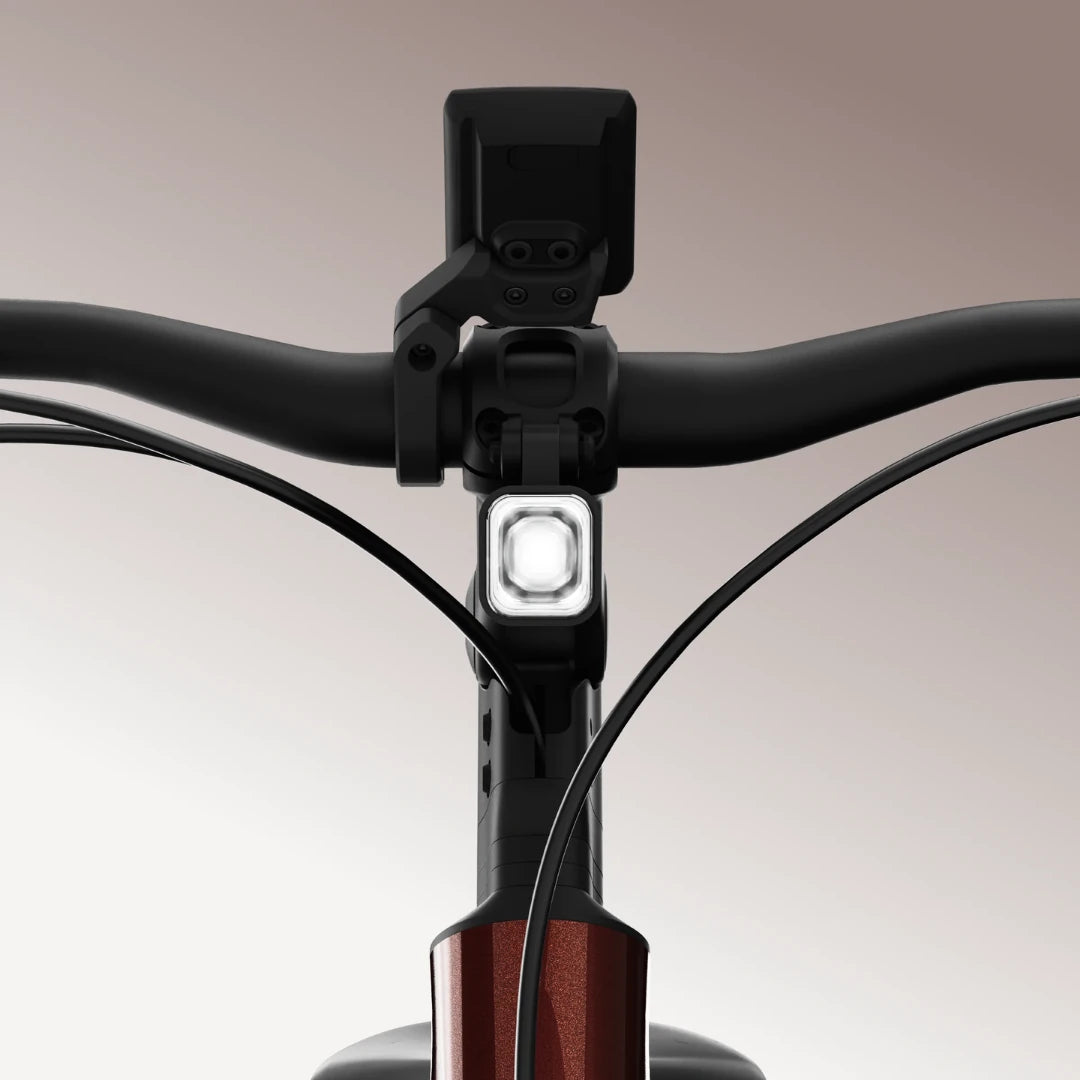

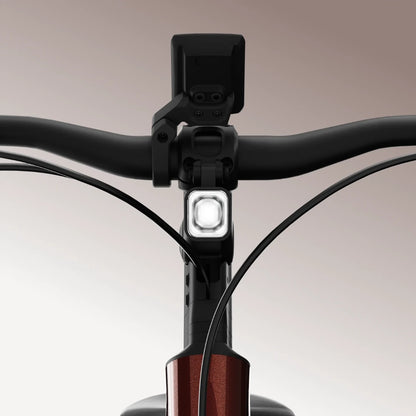

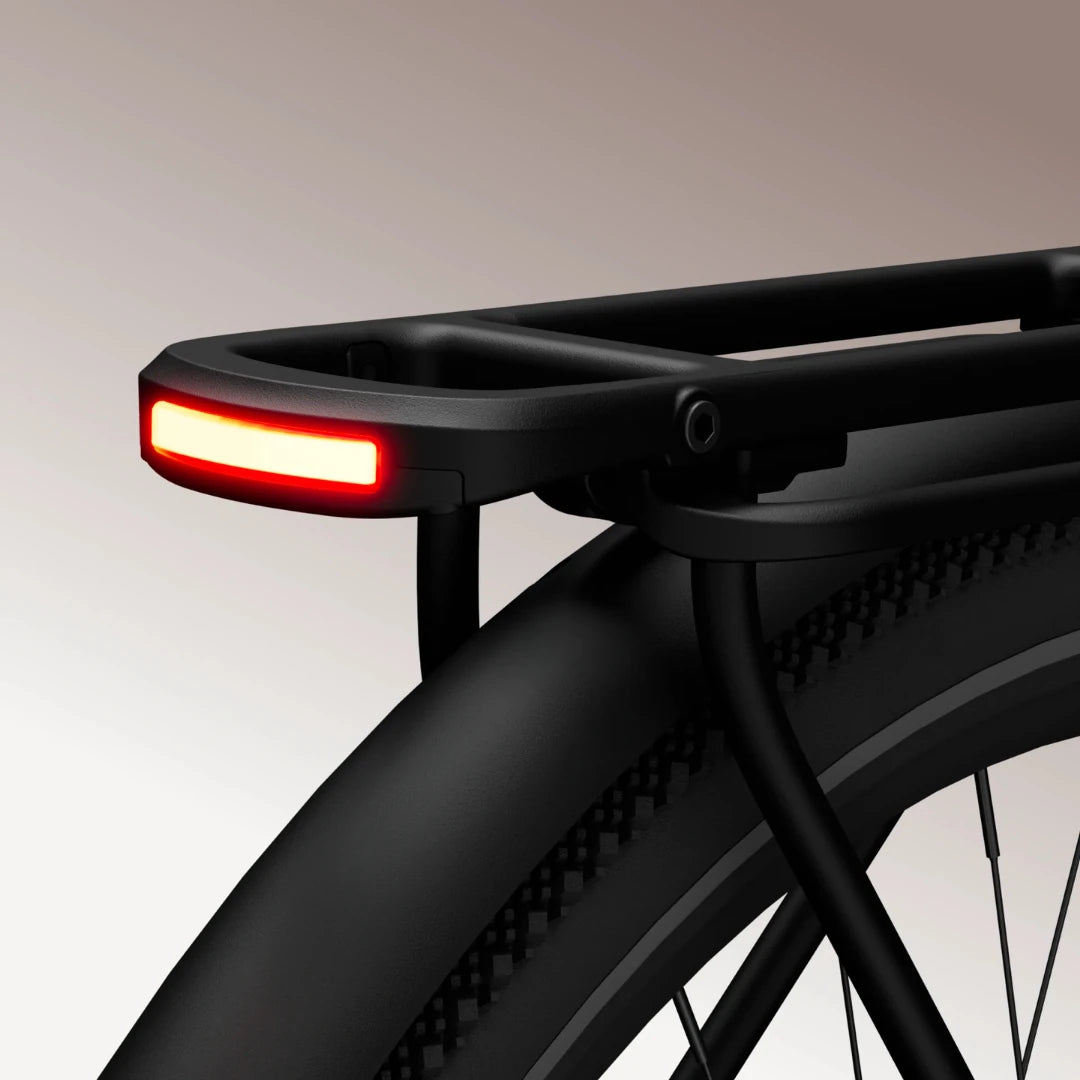

For safe night exploration of the city or forest paths, a powerful front light with 60 Lux output is provided, while the rear light is elegantly integrated into the rear carrier. The entire lighting system is fully compliant with strict German StVZO road traffic standards.
What do you receive with your purchase?
- Electric bike TENWAYS AGO Air (Chain or Belt)
- High-performance removable battery (561.6 Wh)
- Original charger
- User manual and operating instructions
- Warranty: 5 years on the frame and rigid front fork; 2 years on the motor, battery, controller, display, lights, torque sensor, and most mechanical parts and accessories; 1 year on brakes, suspension, pedals, kickstand, chain, and saddle; 6 months on brake discs and saddle; 3 months on tires, spokes, brake pads, grips, and smaller components.
- Full support, servicing, and maintenance (even after the warranty expires) are guaranteed at our service center located at Tržaška cesta 222, 1000 Ljubljana.
Technical specifications
| ELECTRONICS AND DRIVE | |
| Motor | TENWAYS Mid-drive Motor |
| Motor power | 250 W |
| Maximum torque | 80 Nm |
| Sensor | Integrated Torque Sensor |
| Controller | Integrated mid-drive motor controller |
| Battery | Lithium-ion battery, 561.6 Wh (36 V, 15.6 Ah), removable |
| Display | DIGIWISE BC240+K 31 TFT color display (Bluetooth, navigation, 7 languages) |
| Assistance system | Limited to 25 km/h (legal limit) |
| Range | Up to 100 km (depending on rider weight, terrain, and temperature) |
| App | TENWAYS App (Live Data Dashboard, Navigation, Help Center) |
| COMPONENTS AND EQUIPMENT | |
| Frame | Alloy Frame |
| Transmission / Gearbox (Belt Drive) | Gates CDX Carbon Belt + internal SHIMANO NEXUS 5-Speed hub (100%-263% ratio) |
| Transmission / Gearbox (Chain Drive) | Classic chain + SHIMANO CUES 9-Speed |
| Brakes | SHIMANO hydraulic disc brakes |
| Front fork (Belt Drive) | Air suspension fork |
| Front fork (Chain Drive) | Hydraulic suspension fork |
| Tires | KENDA 700*50C 60TPI EPS with reflective line |
| Rims and hubs | ALLOY DB RIM and ALLOY BEARING HUB |
| Crankset | Alloy 170 mm (Powder paint black) |
| Bottom bracket | BAFANG |
| Saddle | Selle Royal (ergonomic and padded) |
| Handlebar stem | Adjustable stem |
| Lighting | StVZO compliant; 60 Lux front light, integrated rear light |
| Additional equipment | Rear Carrier |
| Available colors | Velvet Red, Arctic Grey, Midnight Black |
| WEIGHT AND LOAD CAPACITY (+/- 3%-5% tolerance) | |
| Maximum permitted weight | 145 kg |
| Weight (Belt Drive) | Net: 23.5 kg (without accessories) / Gross: 26 kg (with all accessories and battery) |
| Weight (Chain Drive) | Net: 24.85 kg (without accessories) / Gross: 27.4 kg (with all accessories and battery) |
| GEOMETRY (Belt Drive) in mm | |
| A: Effective Top tube | 618 mm |
| B: Seat tube length | 432 mm |
| C: Head tube | 174 mm |
| D: Steering angle | 69.6° |
| E: Seat tube angle | 70.9° |
| F: Chainstay | 481 mm |
| G: Wheelbase | 1145 mm |
| H: Standover height | 577.4 mm |
| GEOMETRY (Chain Drive - One size) in mm | |
| A: Effective Top tube | 640 mm |
| B: Seat tube length | 460 mm |
| C: Head tube | 184 mm |
| D: Steering angle | 69.6° |
| E: Seat tube angle | 70.9° |
| F: Chainstay | 481 mm |
| G: Wheelbase | 1168 mm |
| H: Standover height | 553.9 mm |
