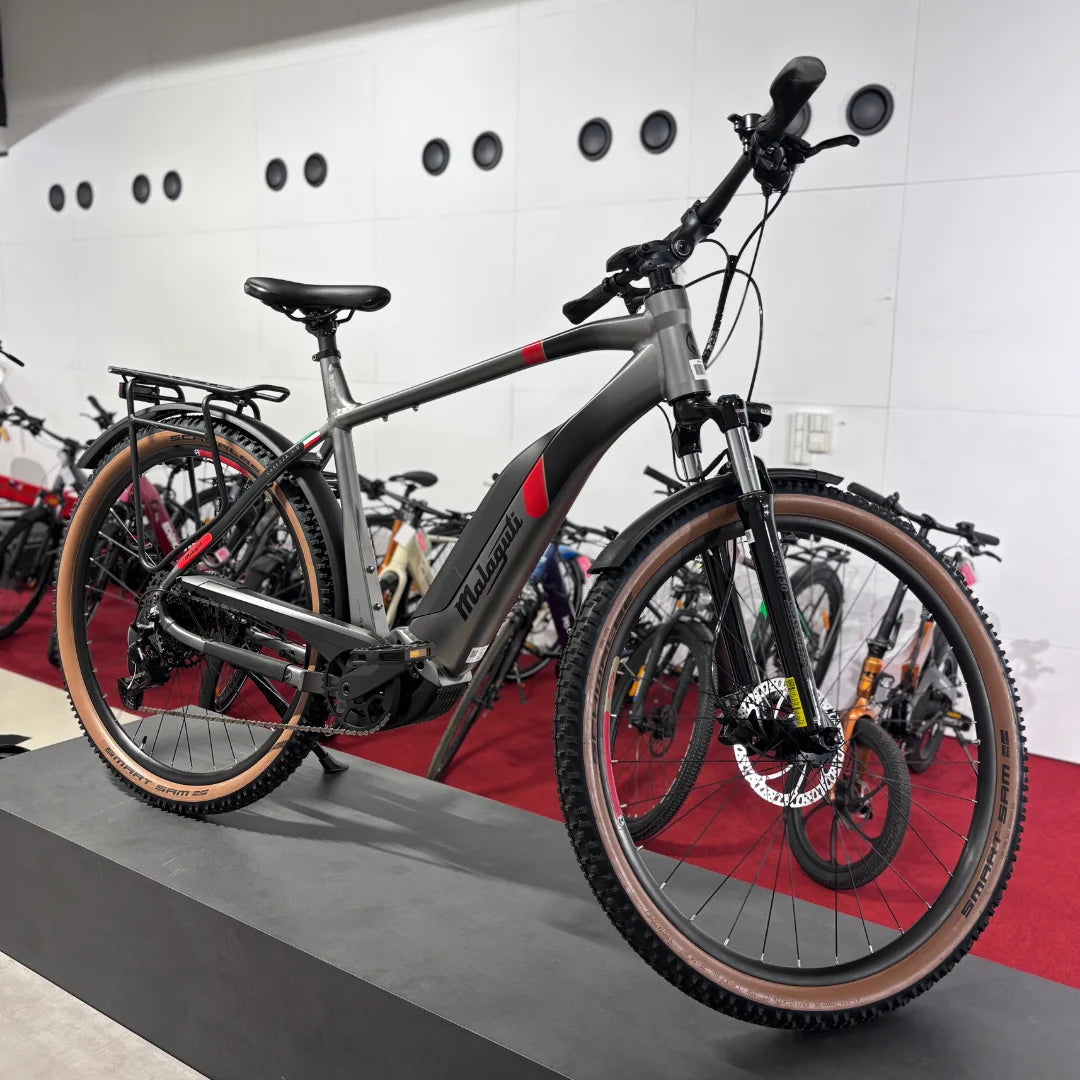

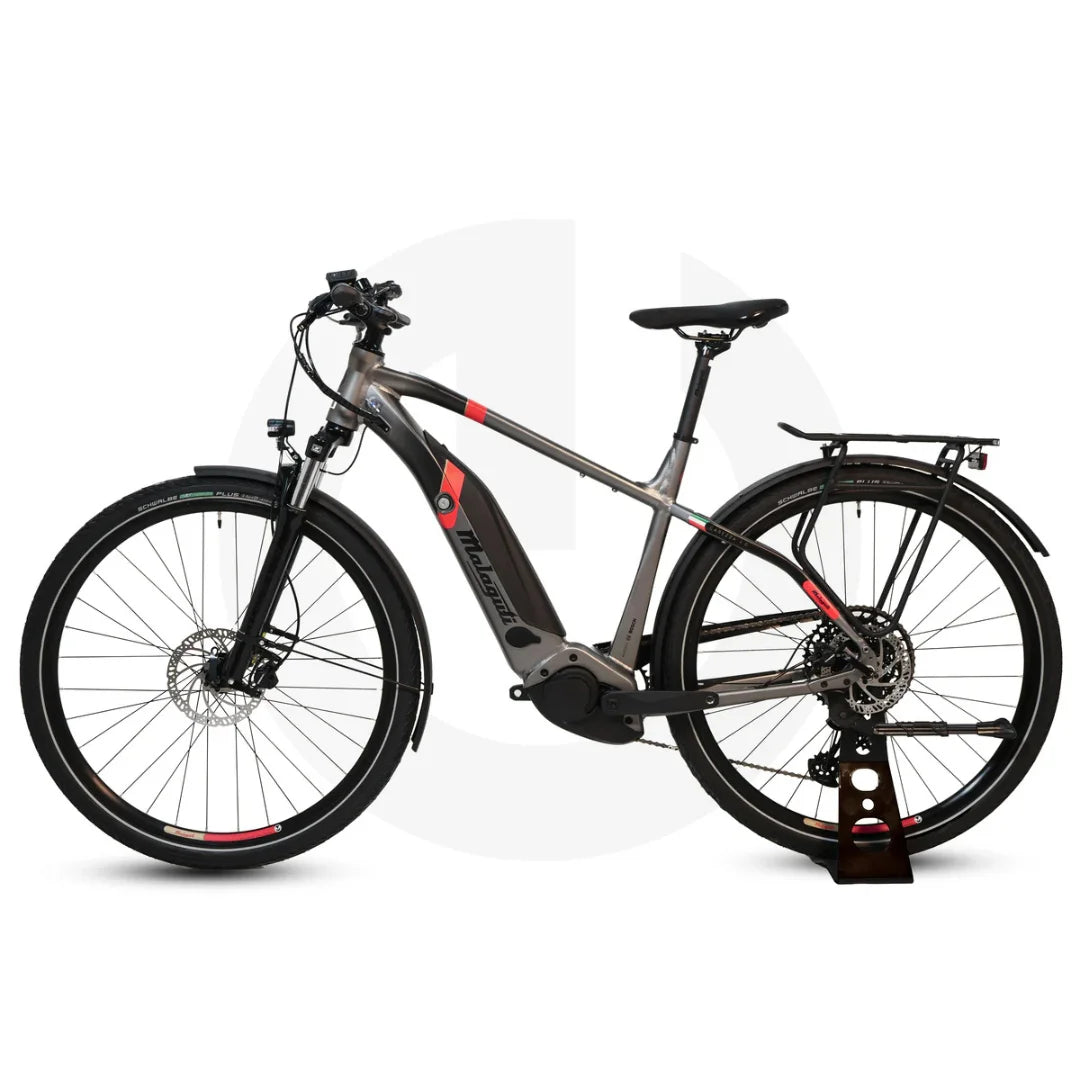

Trekking electric bike

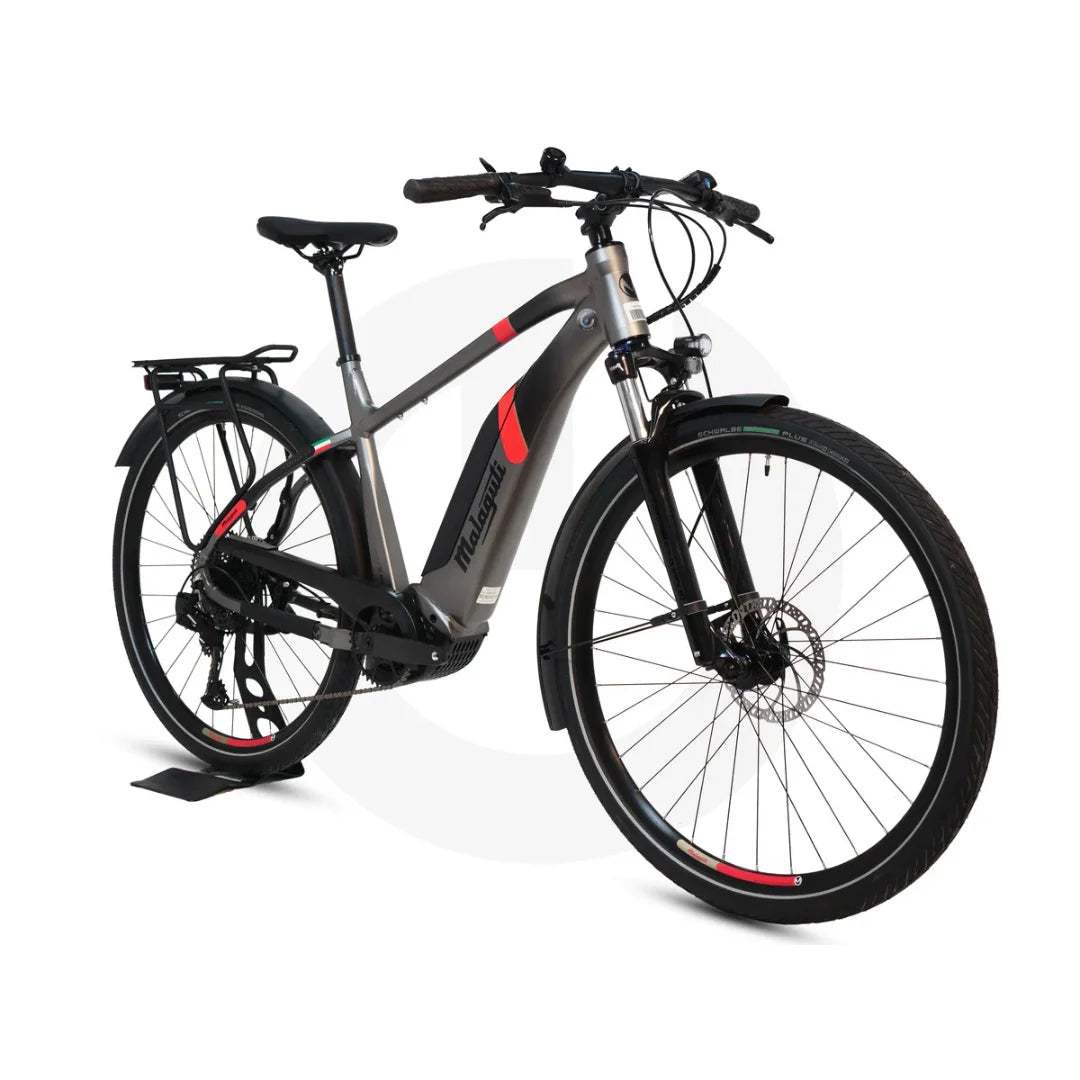

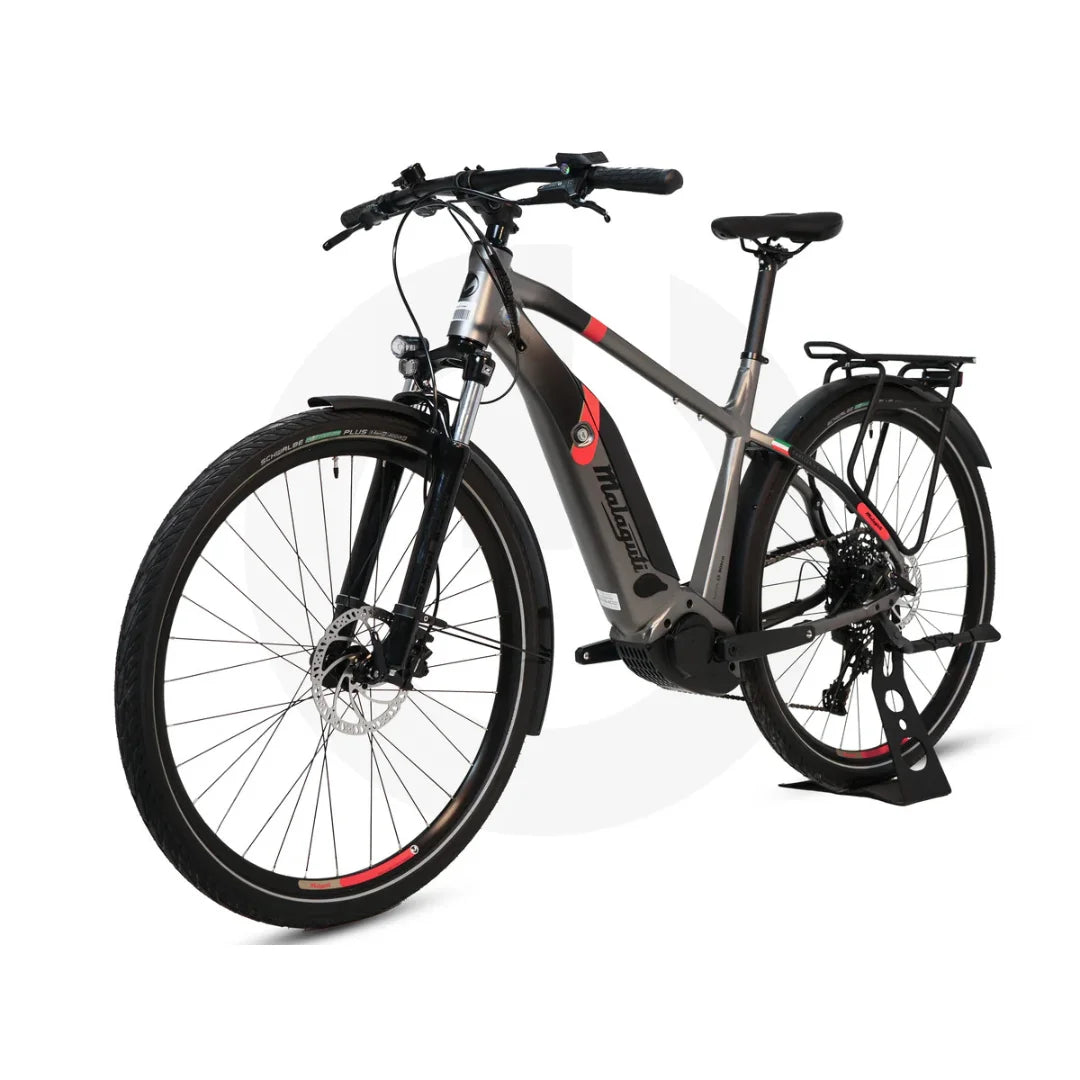

MALAGUTI Carezza TR 4.0 - BOSCH Motor
Effortless power, adventure unlimited.
Specifications of
MALAGUTI Carezza TR 4.0 - BOSCH Motor
Motor | |
---|---|

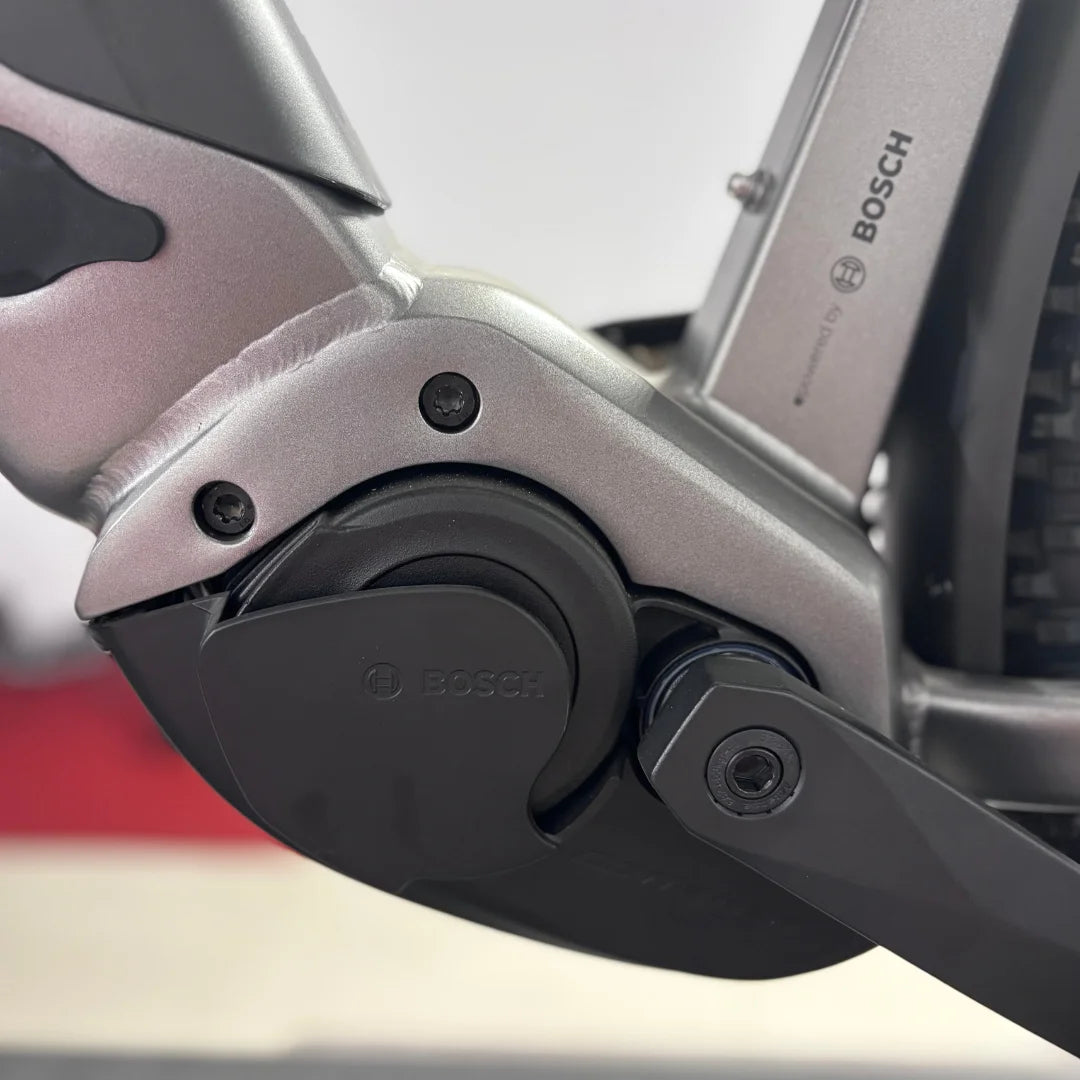

Drivetrain | Central drive |
Nominal Power | 250 W |
Speed | |

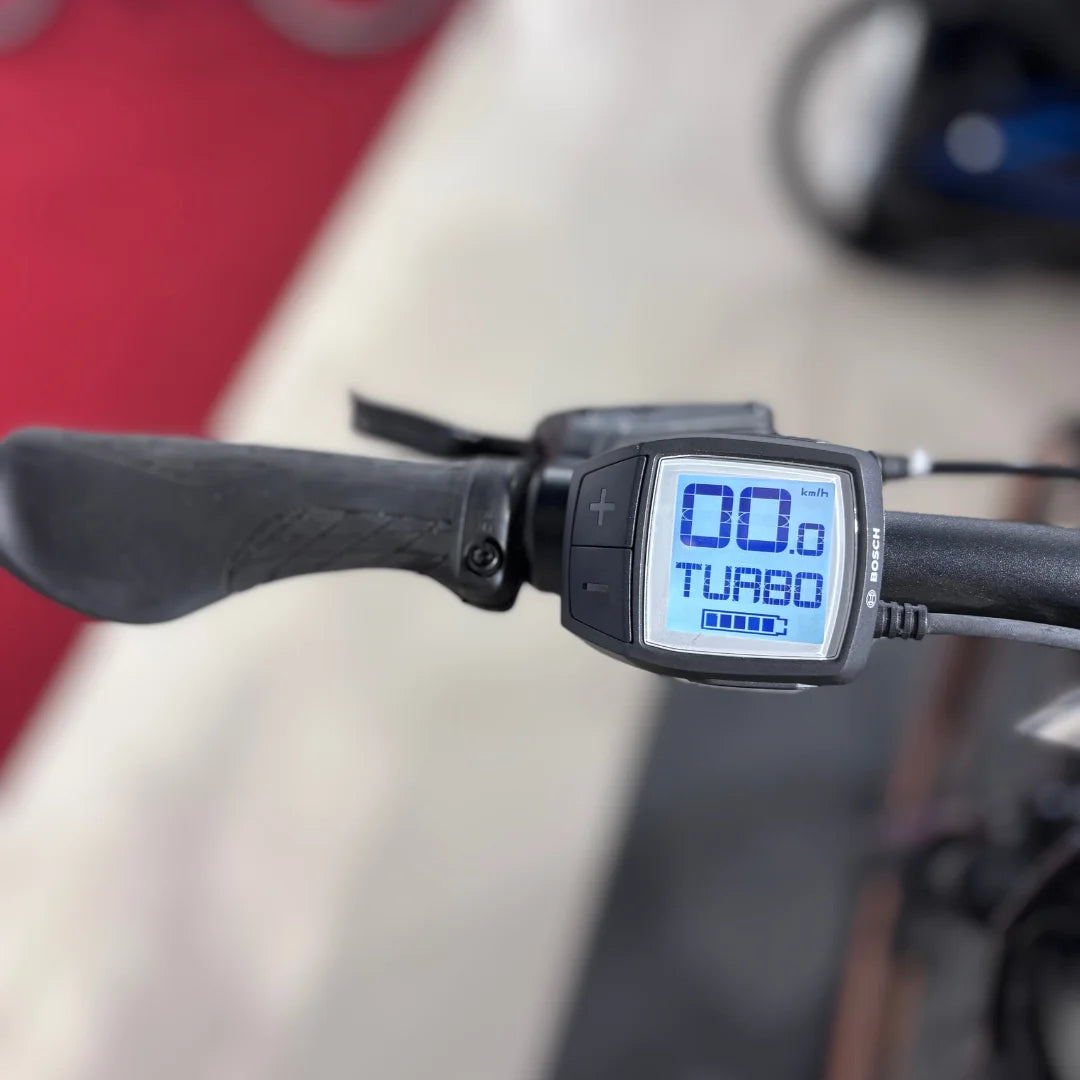

Speed Modes | 4 speed modes |
Maximum Incline Angle | 20-25% |

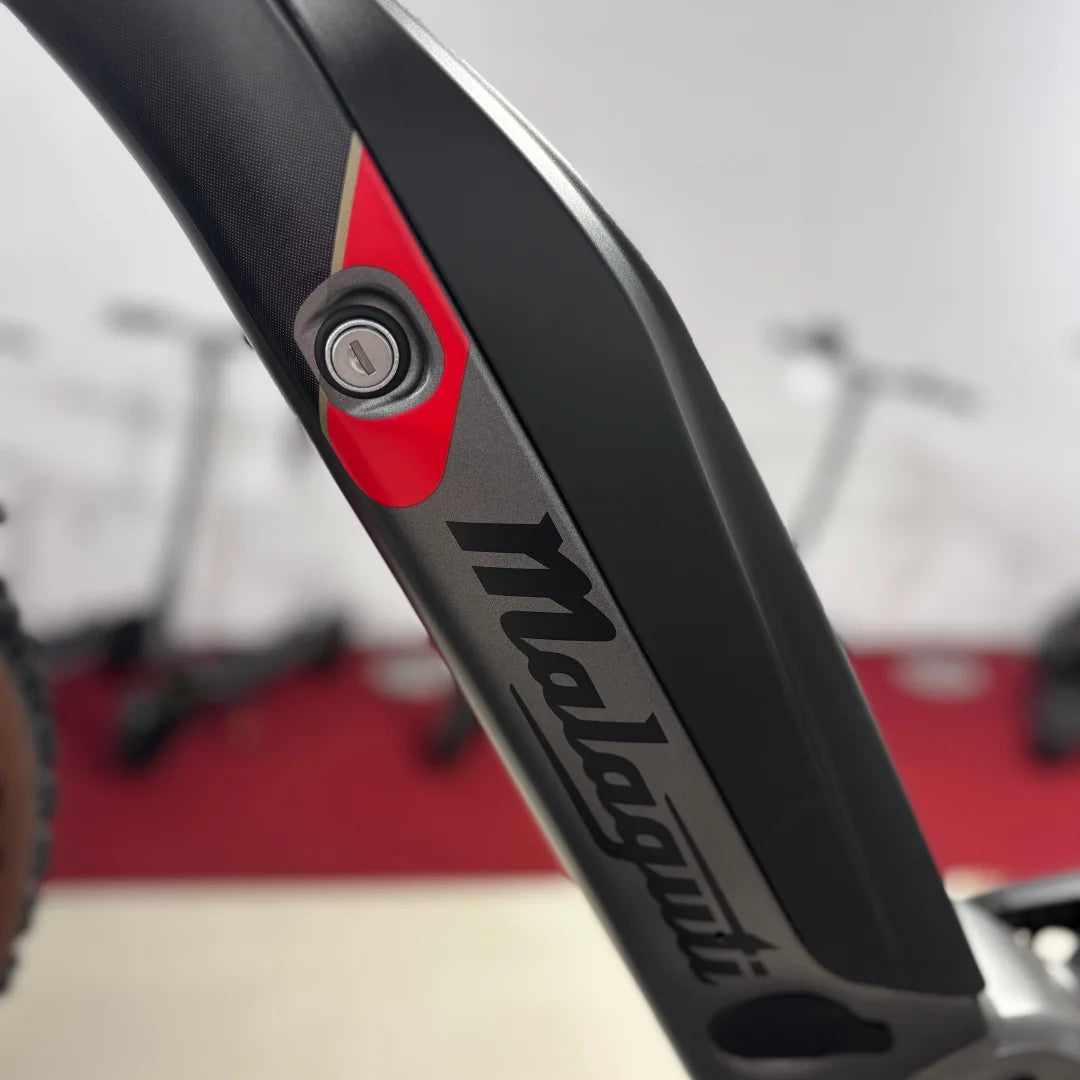

Battery | |
Maximum Range | 120 km |
Battery Capacity | 13.4 Ah |
Battery Voltage | 36 V |
Charging Time | 6-8 hours |
Charger Type | 1x Standard charger BOSCH 2A |
Suspension | |

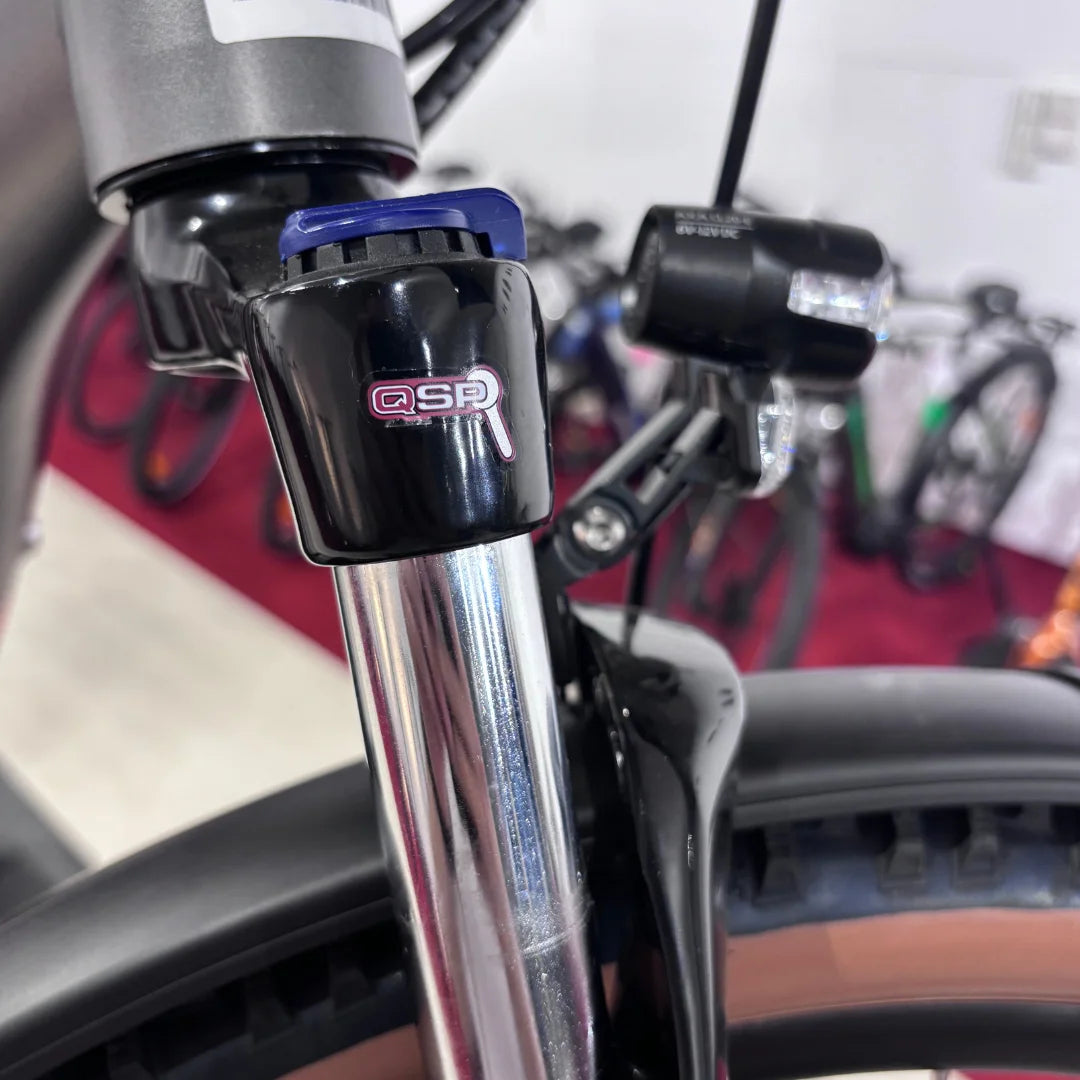

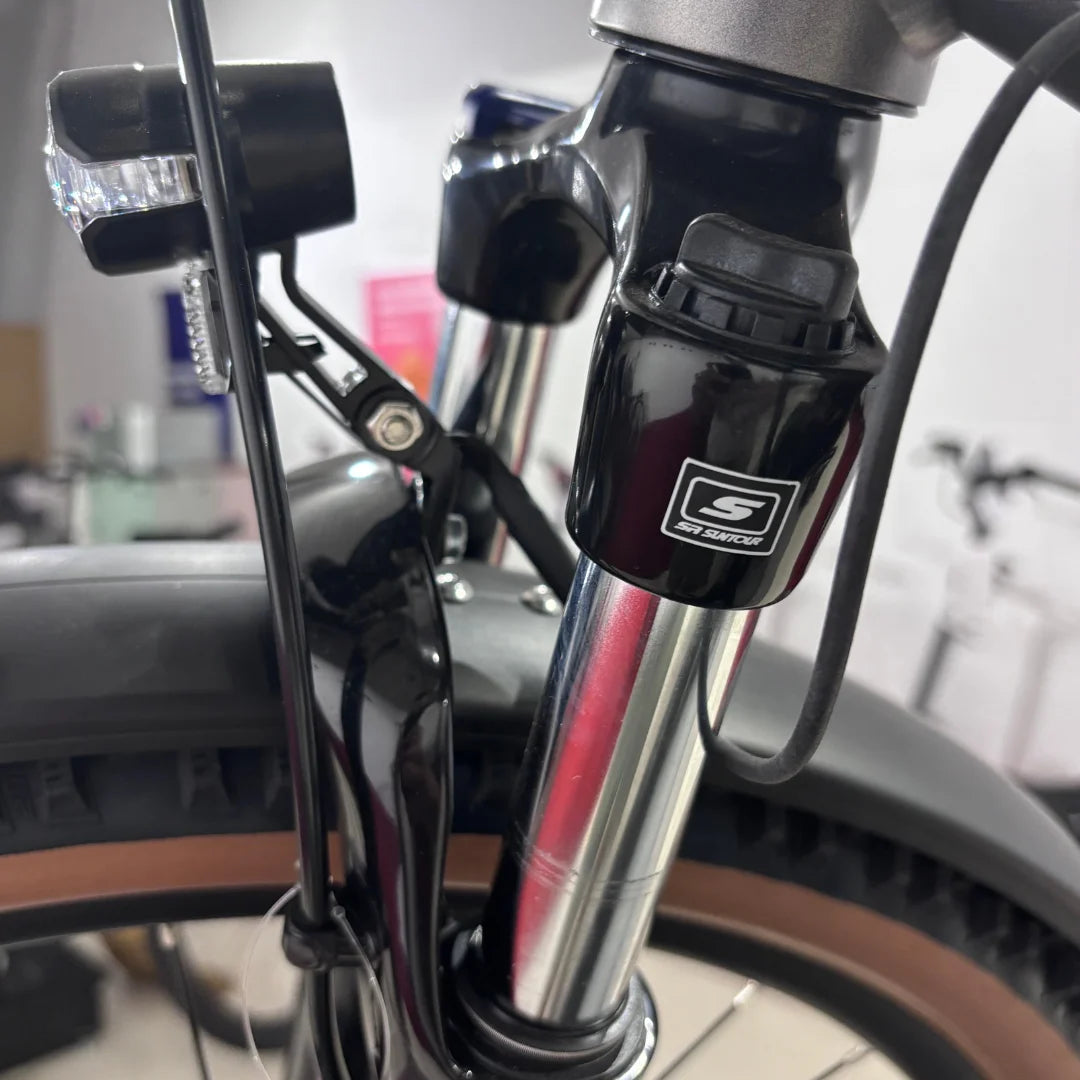

Front Suspension | SR Suntour XCR32 120mm |
Brakes | |
Front Brake | Tektro HD-T275N hydraulic disc brakes 180 mm |
Rear Brake | Tektro HD-T275N hydraulic disc brakes 160 mm |

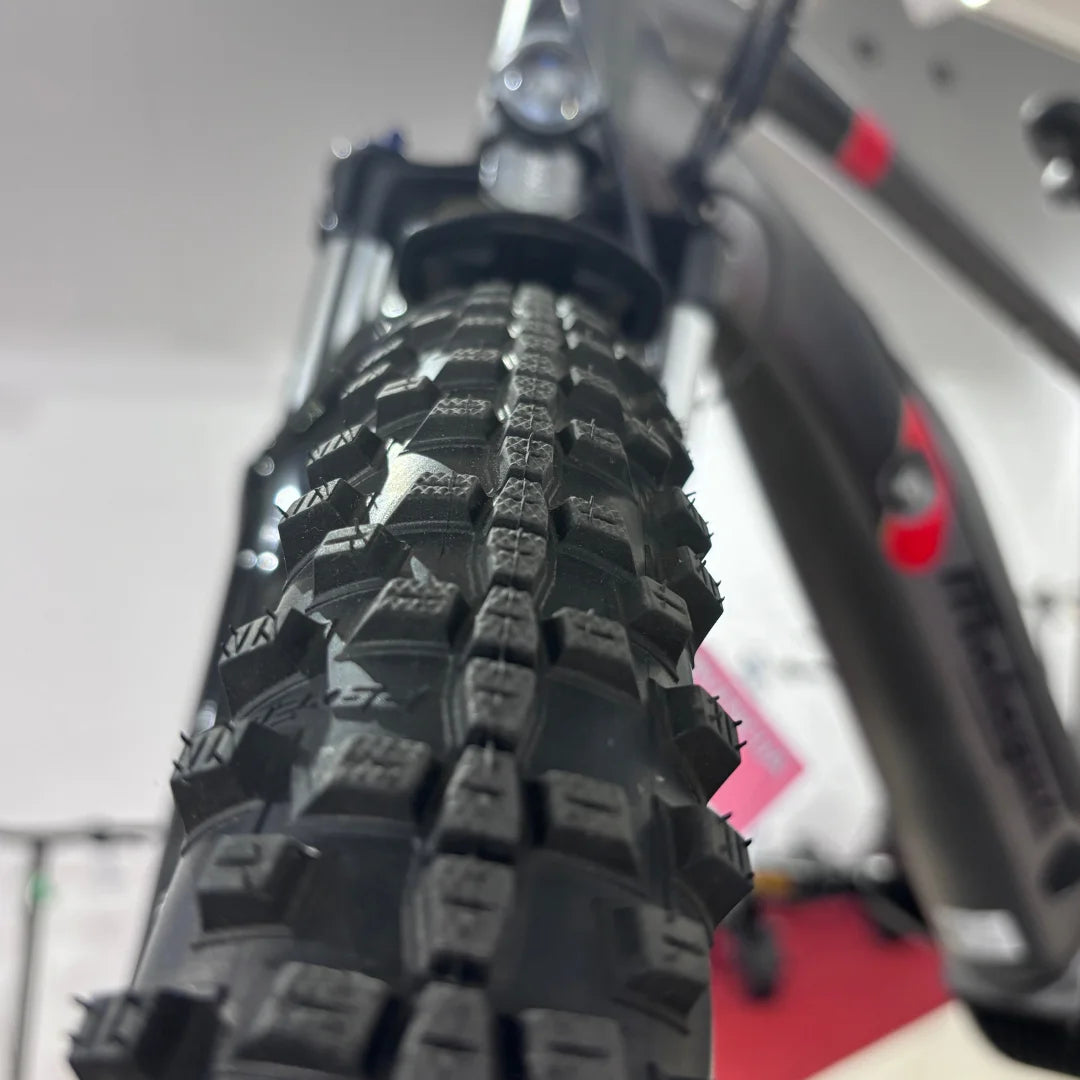

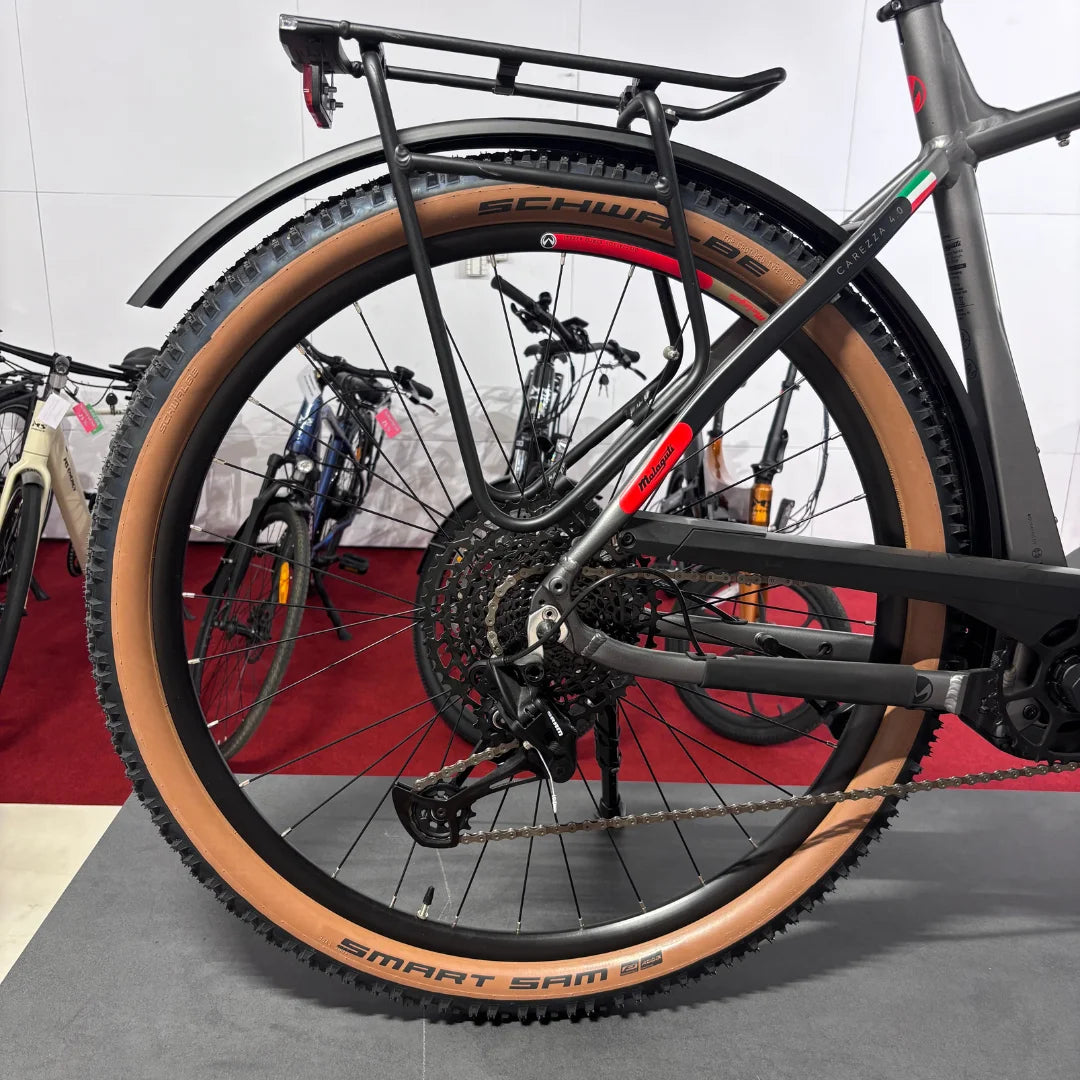

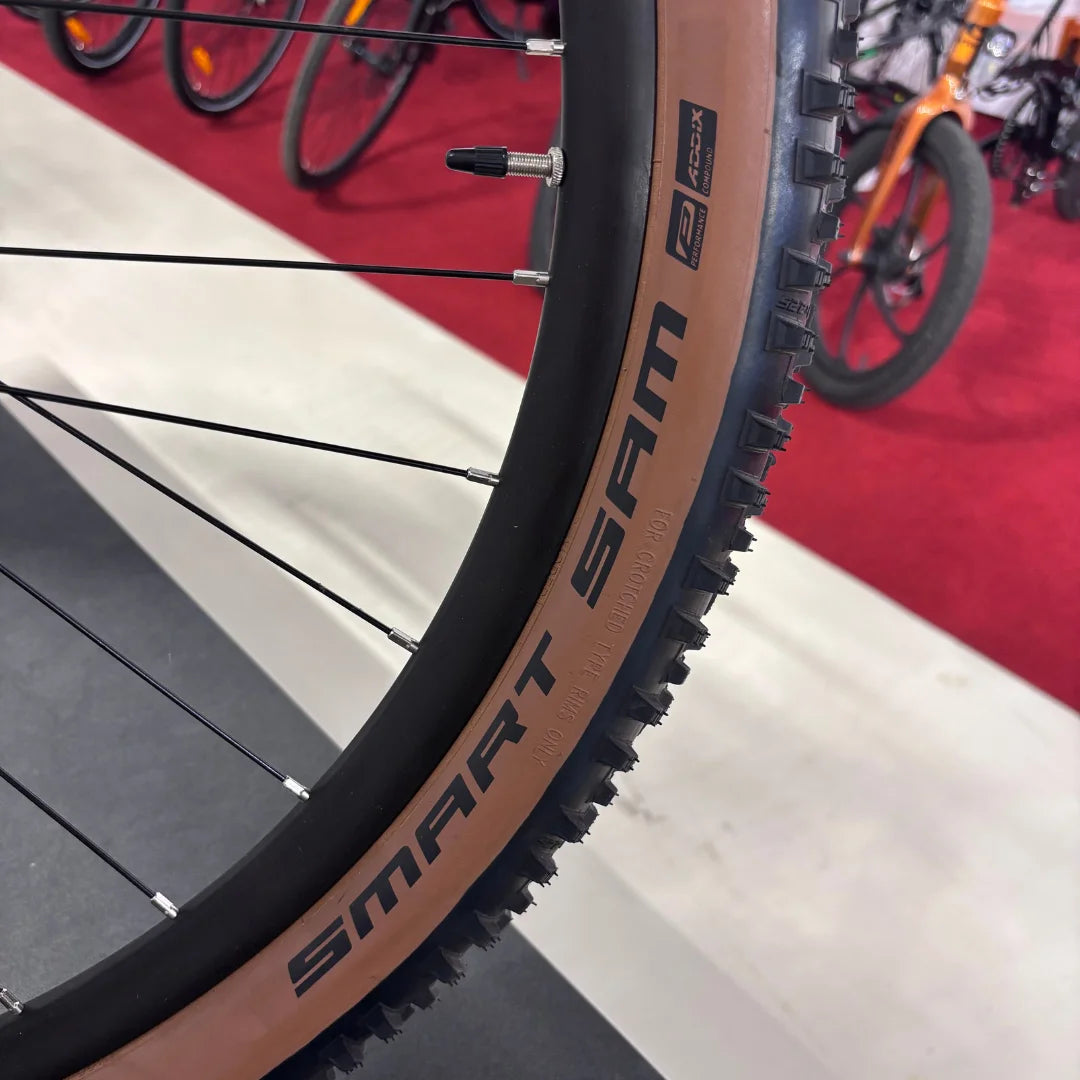

Tires | |
Tire Type | Inflatable |
Front Wheel Size | 29 x 2.25" |
Rear Wheel Size | 29 x 2.25" |

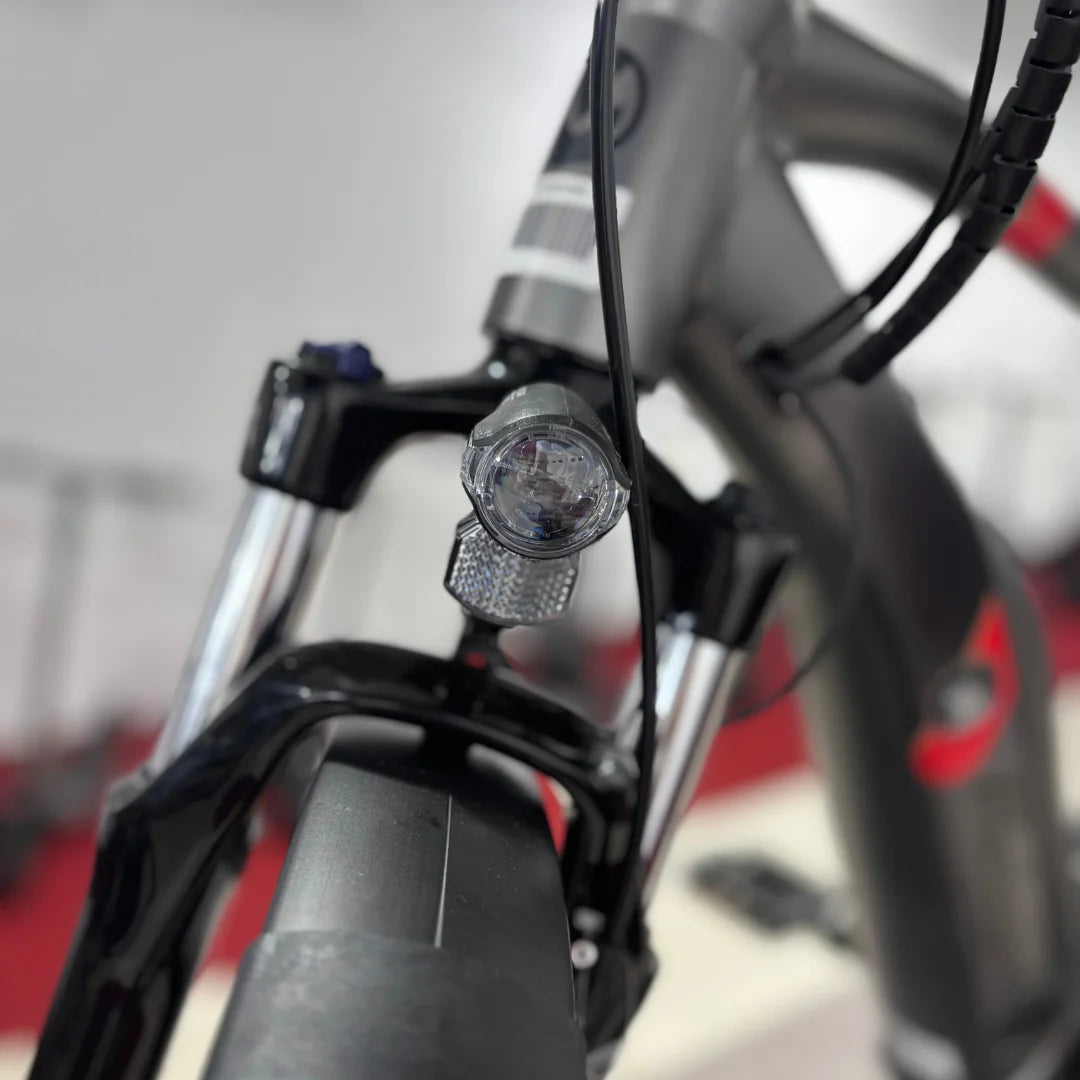

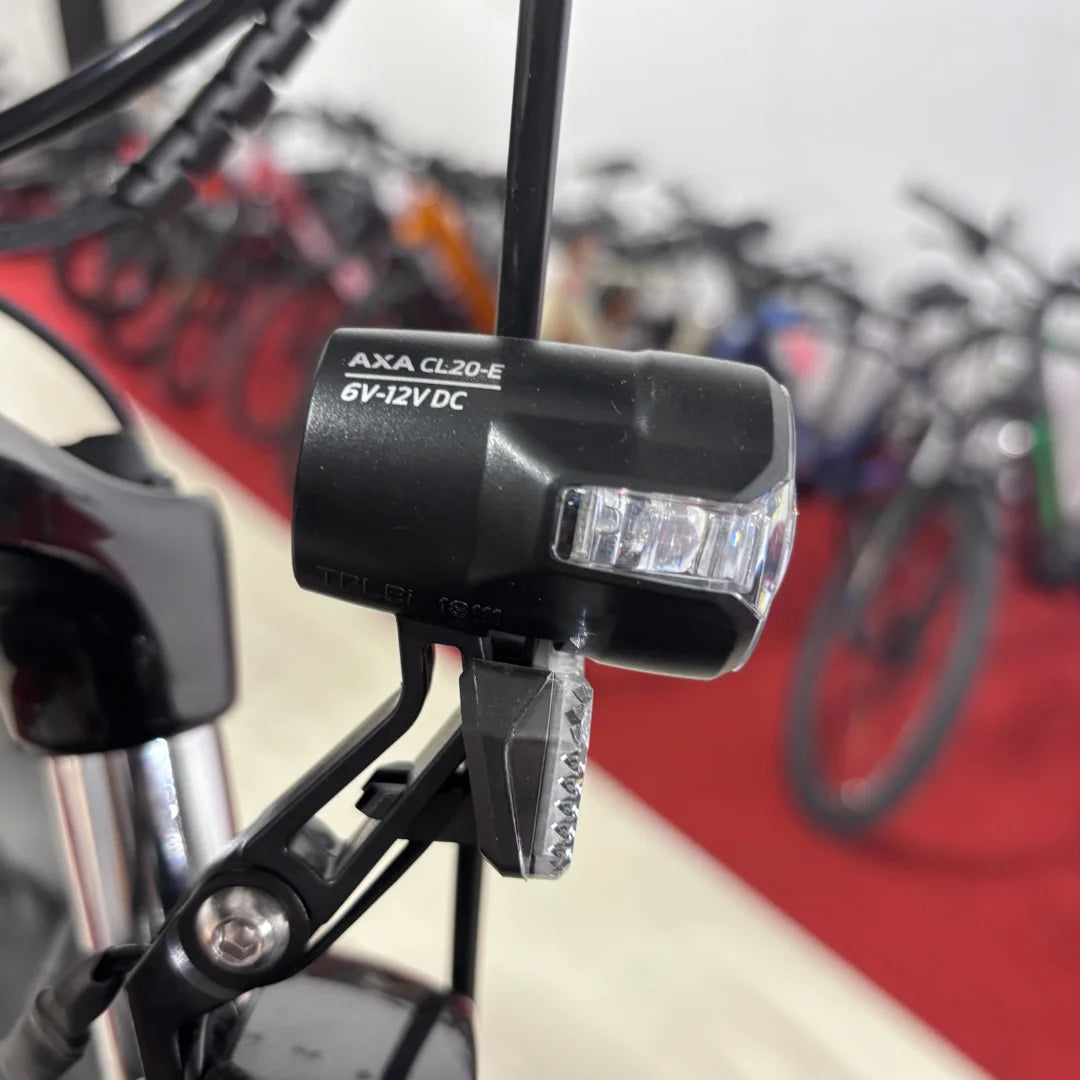

Lighting | |

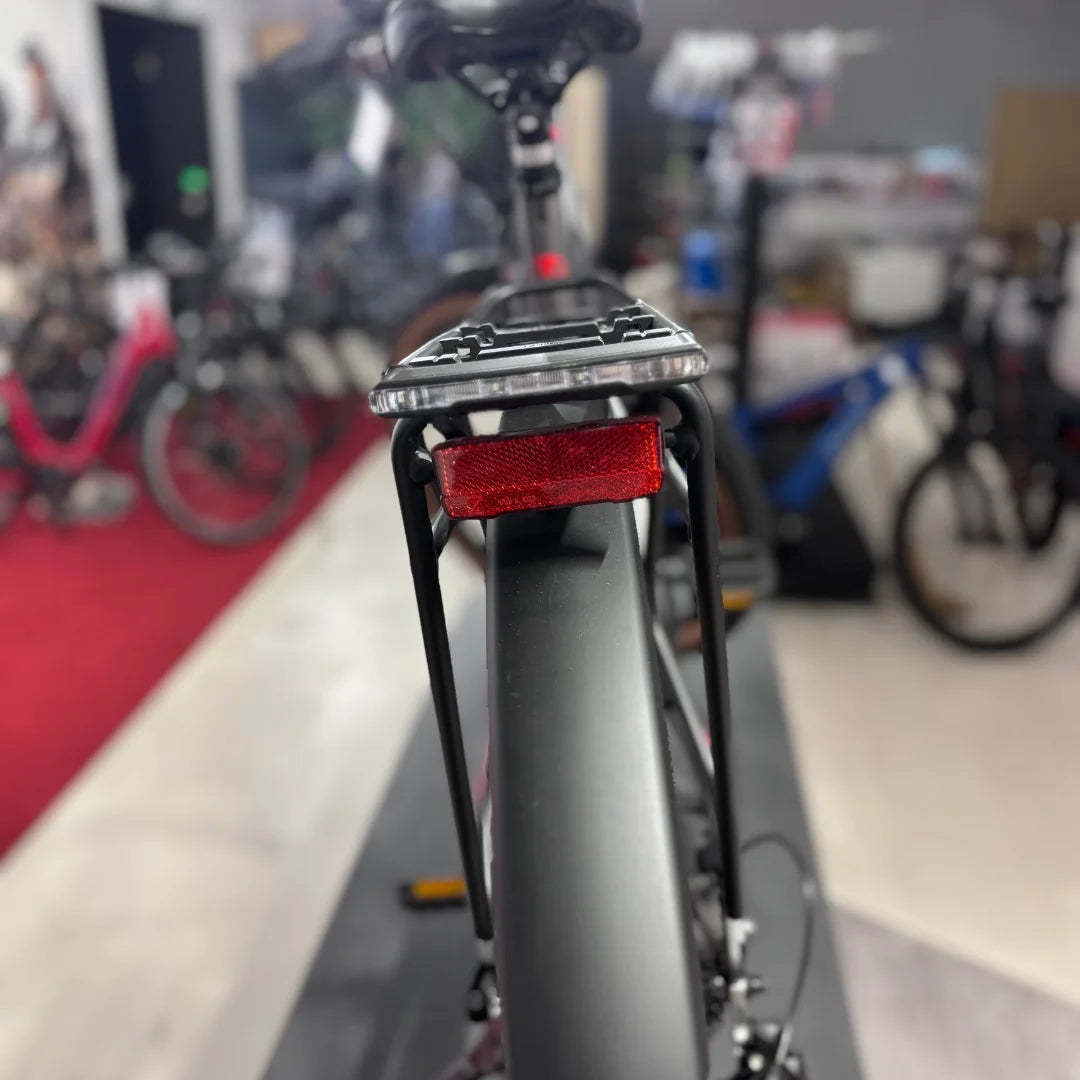

Front and rear | |
Water Protection | |
IPX5 - Protected from low-pressure water spray | |
Dimensions | |
Length | 194 cm |
Height | 110 cm |
Width | 76 cm |
Other | |
Recommended Height | 175-190 cm |
Net Weight | 25 kg |
Load Capacity | 120 kg |
Borzen Subsidy | Yes (-25%) |
Warranty | 2 years |
-
Comfort & Design

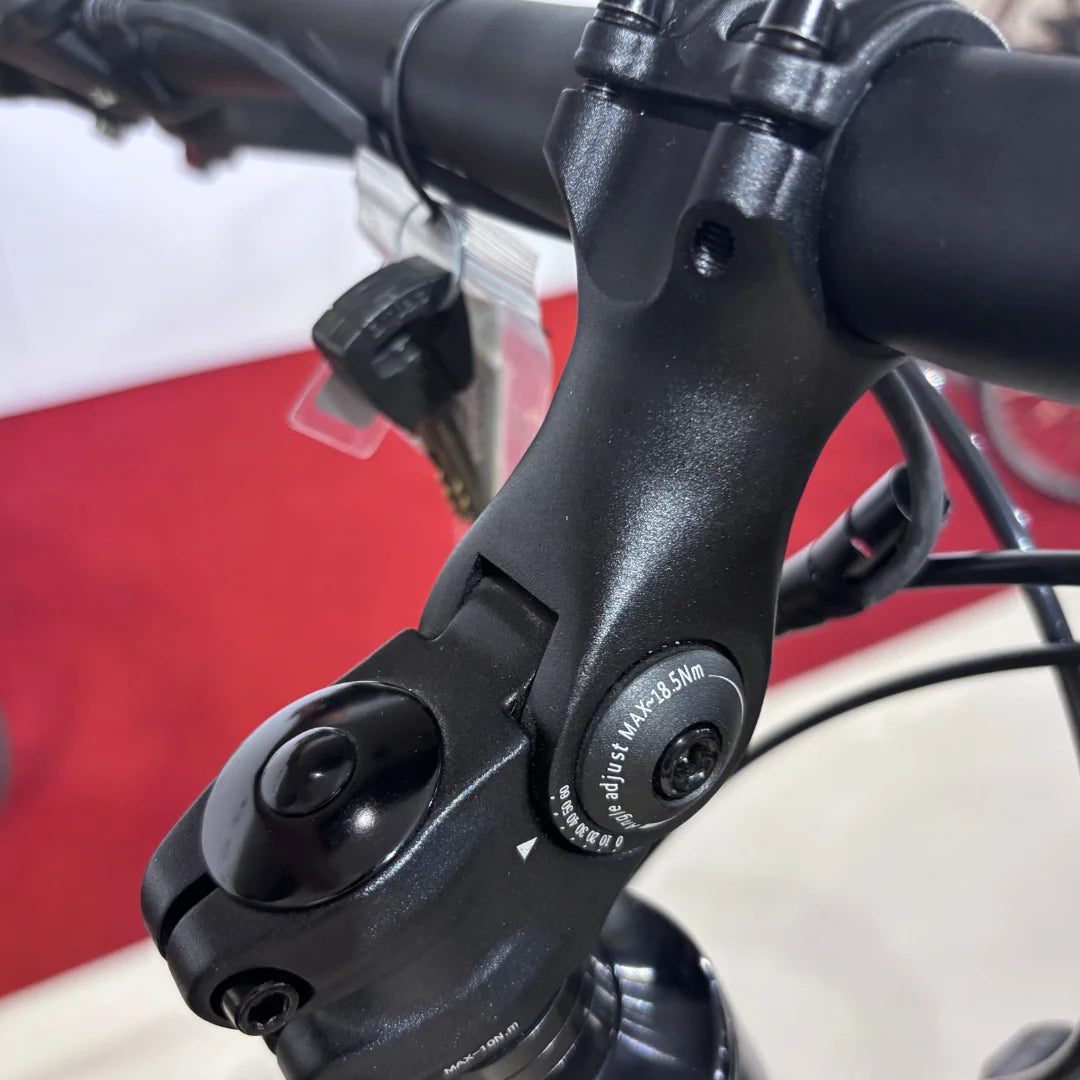

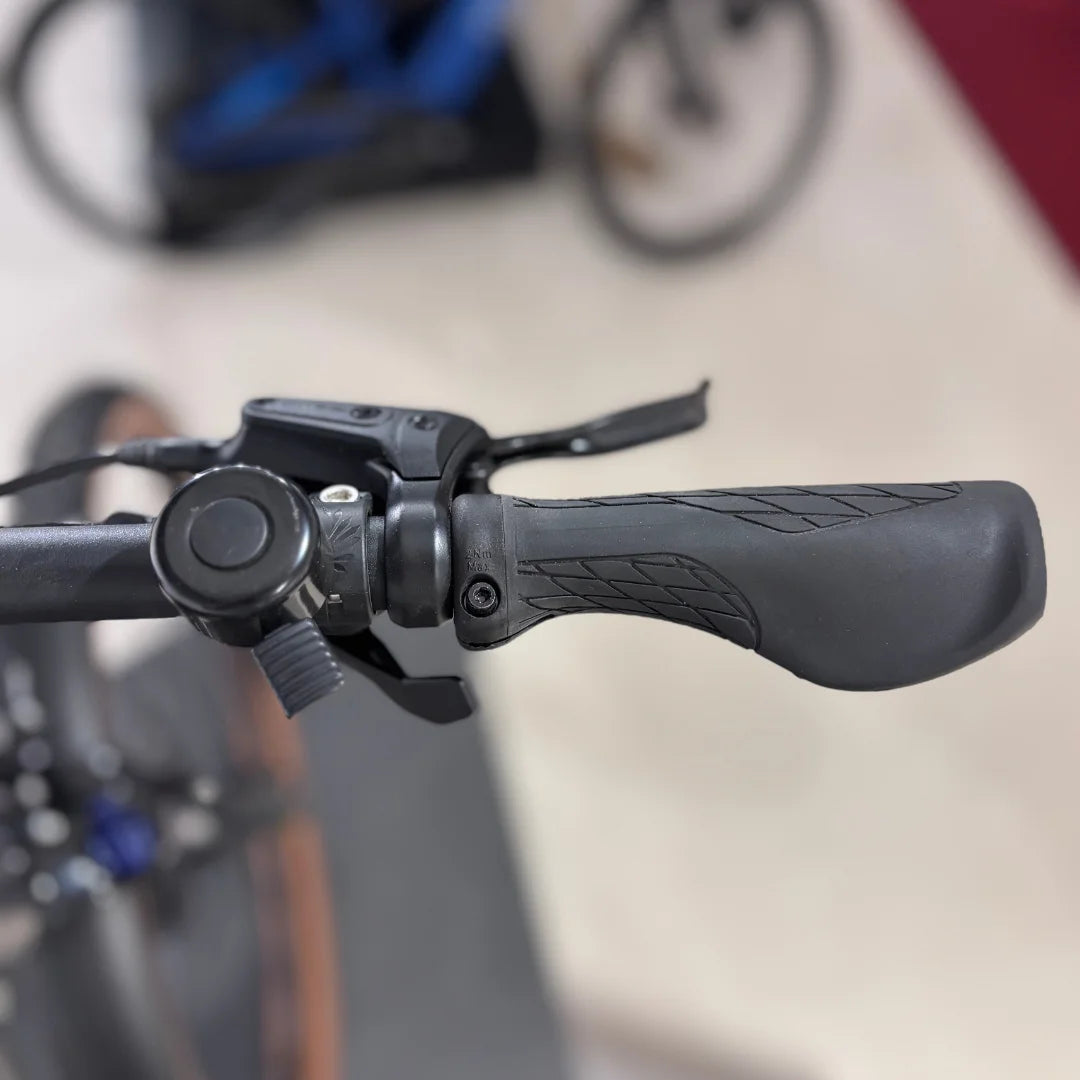

Trekking-optimized geometry ensures an upright, relaxed posture, reducing strain on the back and wrists. SR Suntour XCR32 suspension (120 mm travel) absorbs shocks, while large-diameter Jalco rims increase stability and rolling efficiency. Adjustable handlebar stem, ergonomic grips, and integrated accessories combine functional trekking features with refined Italian styling and precise German manufacturing.
-
Maintenance
Lubricate the chain every 200–300 km or after wet conditions. Check tire pressure weekly (3.5–4.0 bar recommended) and inspect brake pads every 500 km. Recharge the battery after each ride and avoid complete discharge to prolong service life. Service the SR Suntour XCR32 suspension fork every 100 riding hours. Perform a full Bosch system diagnostic at an authorized service center annually to ensure optimal motor and battery performance.
