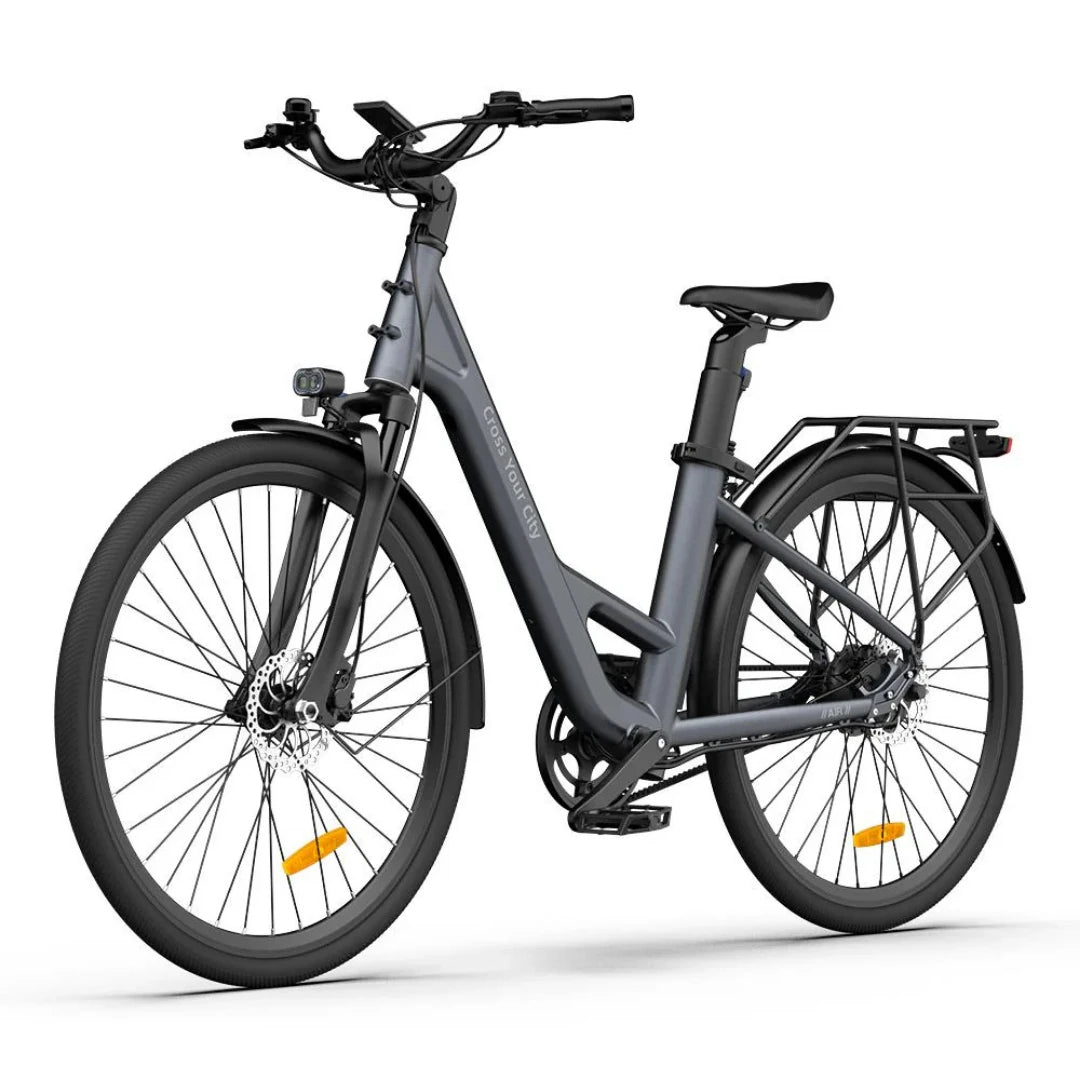

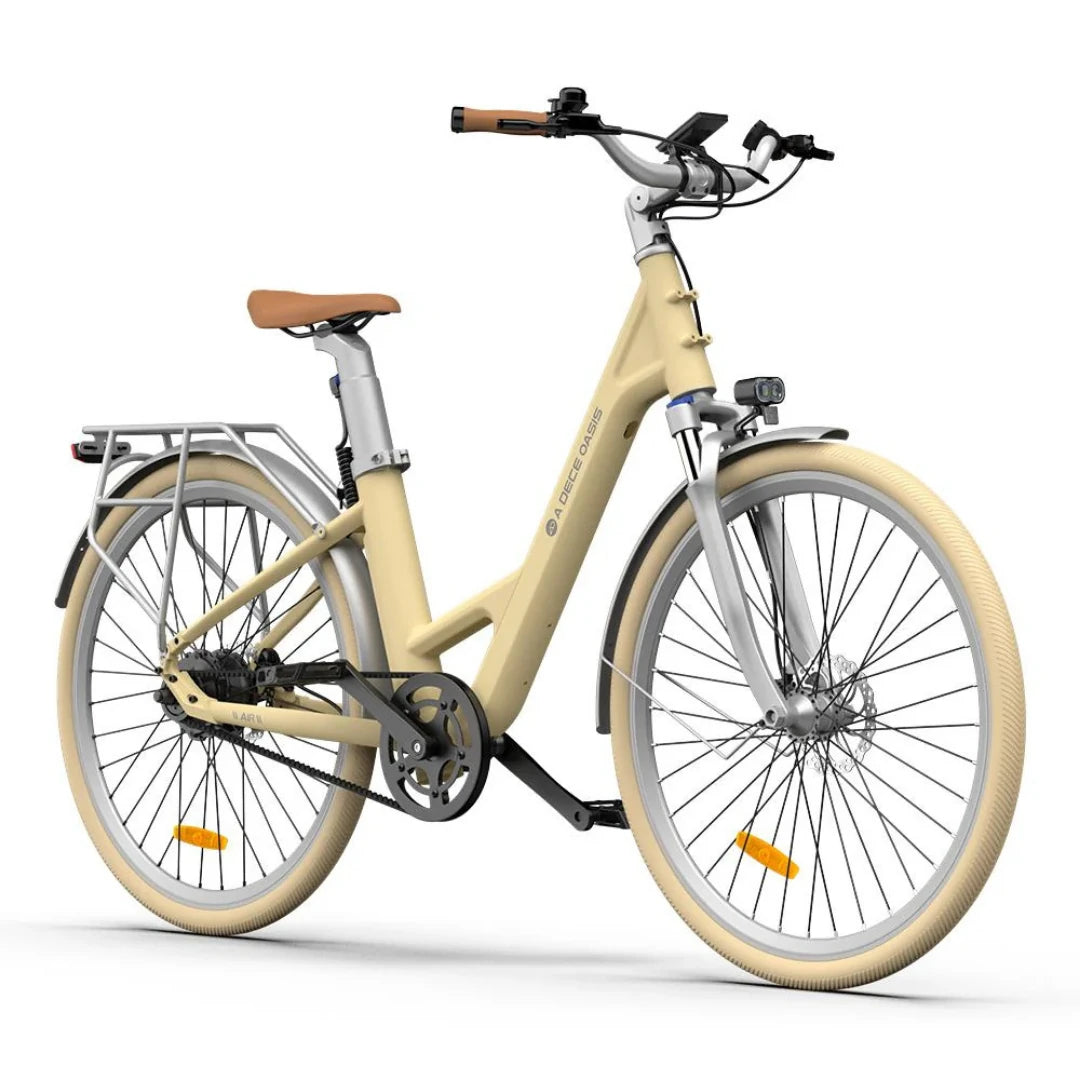

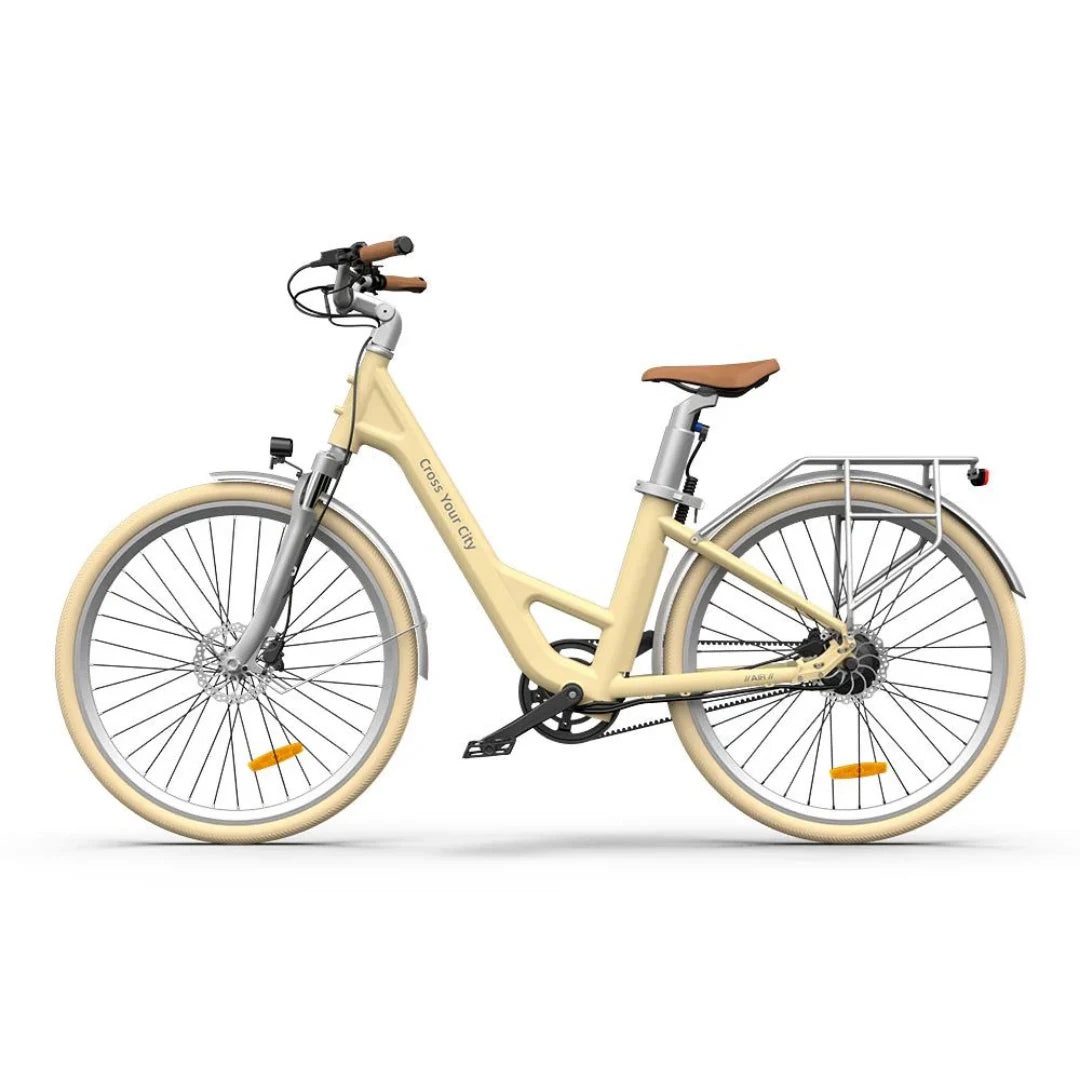

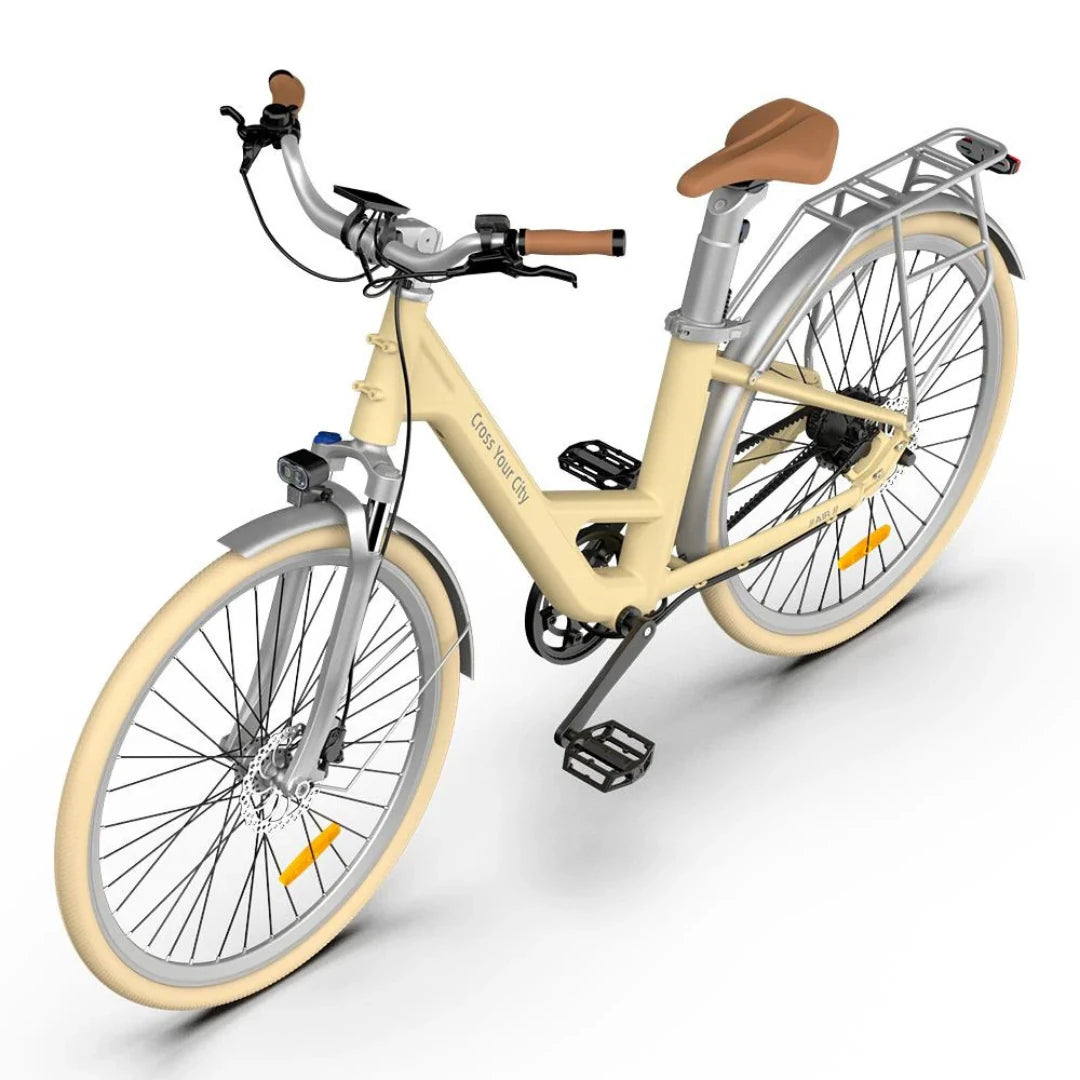

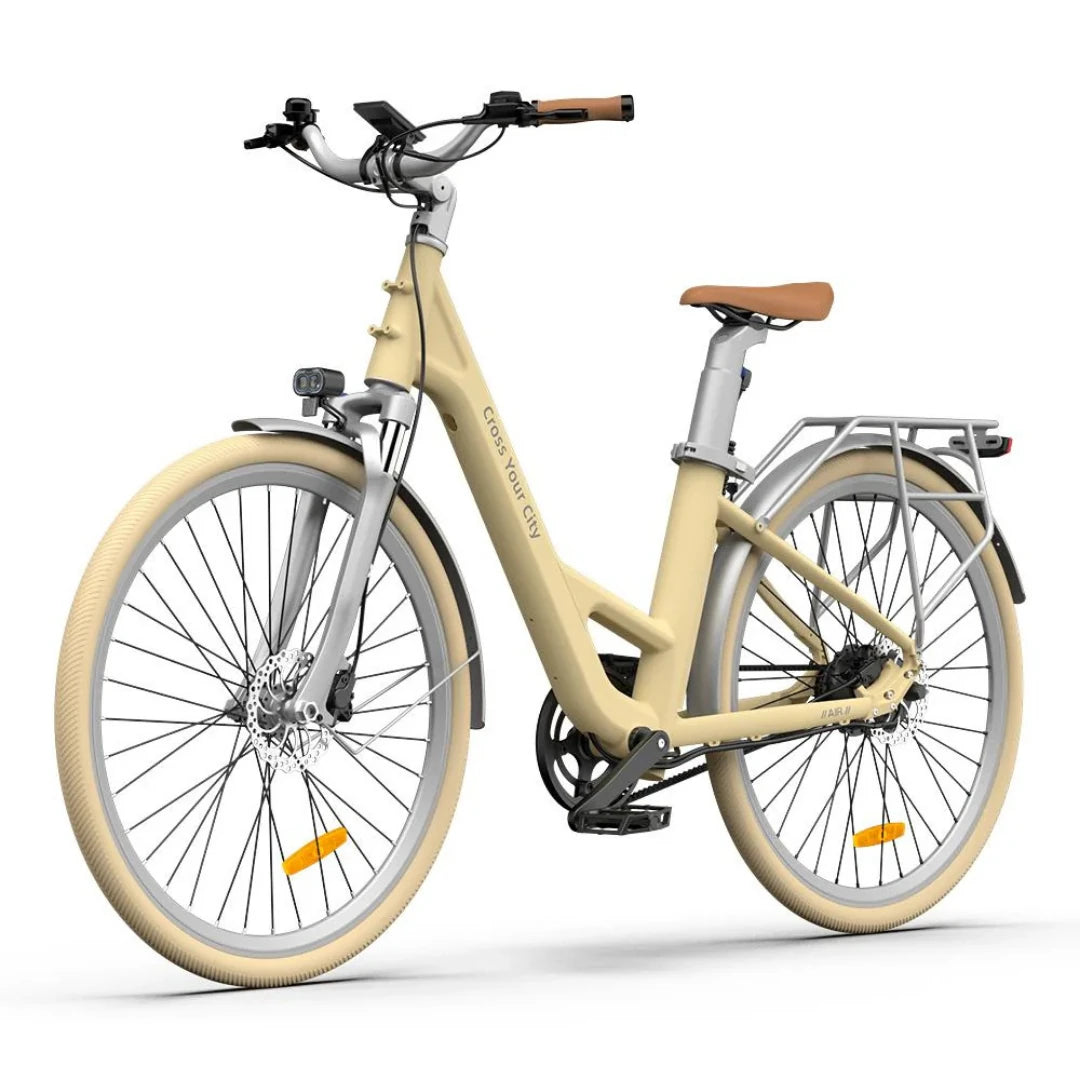

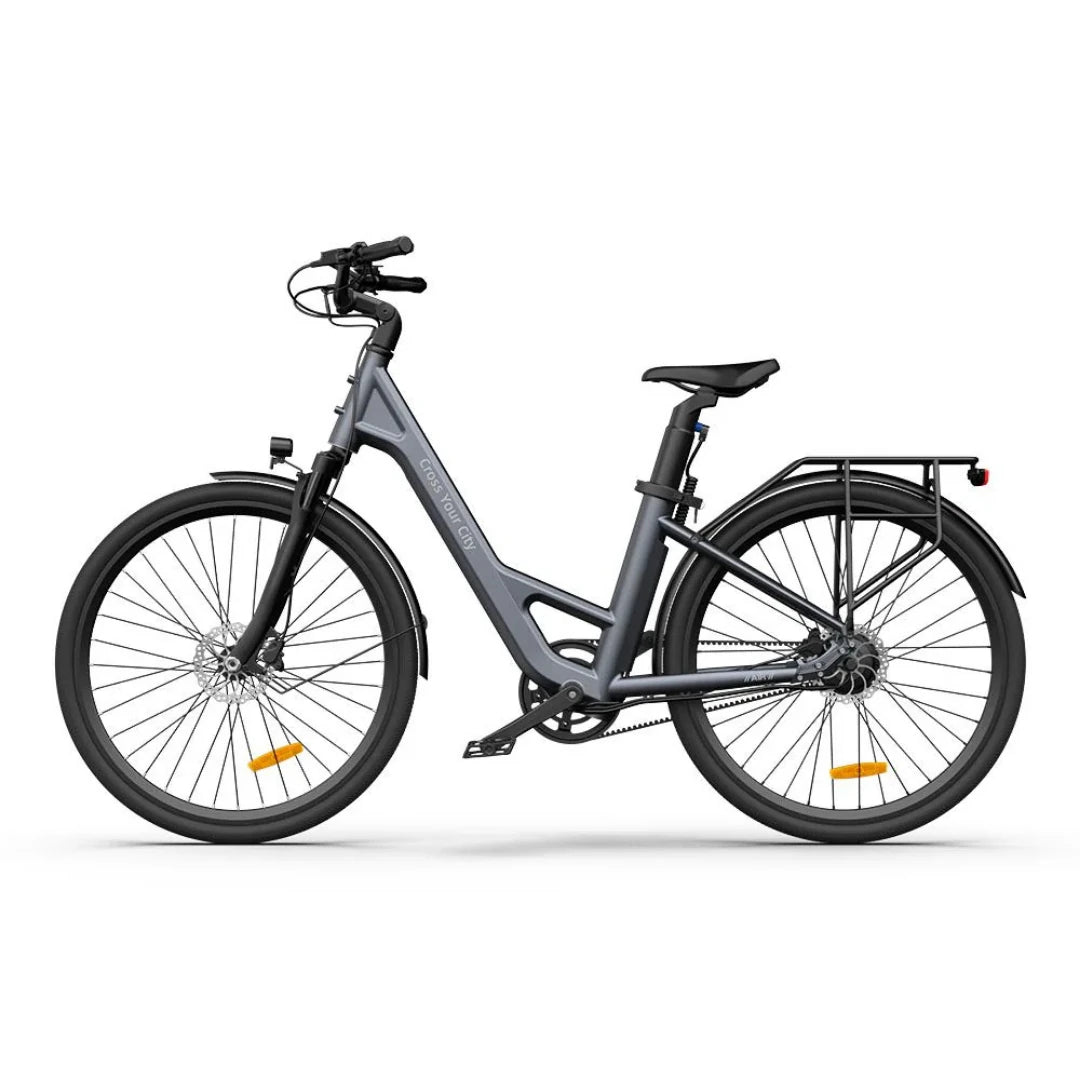

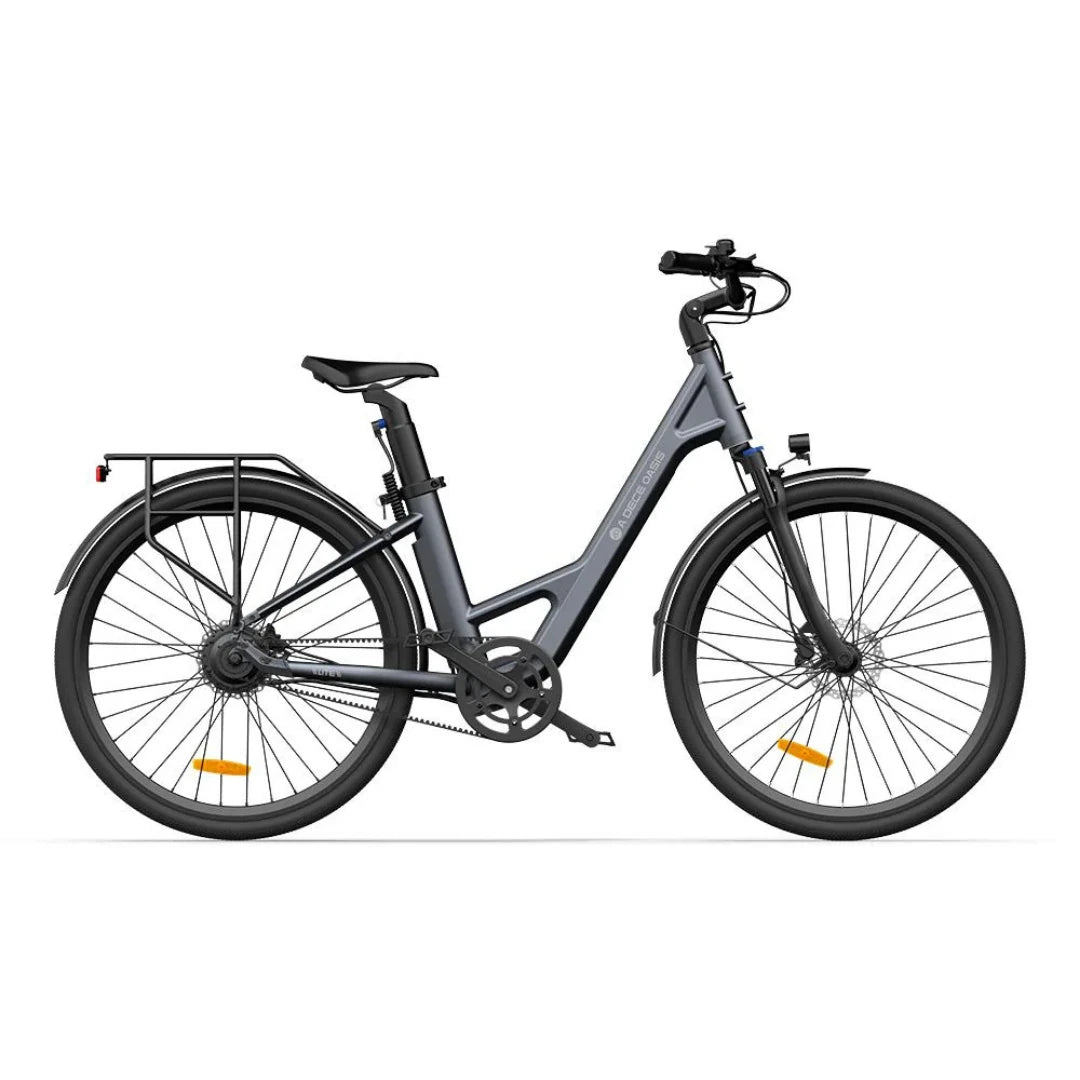

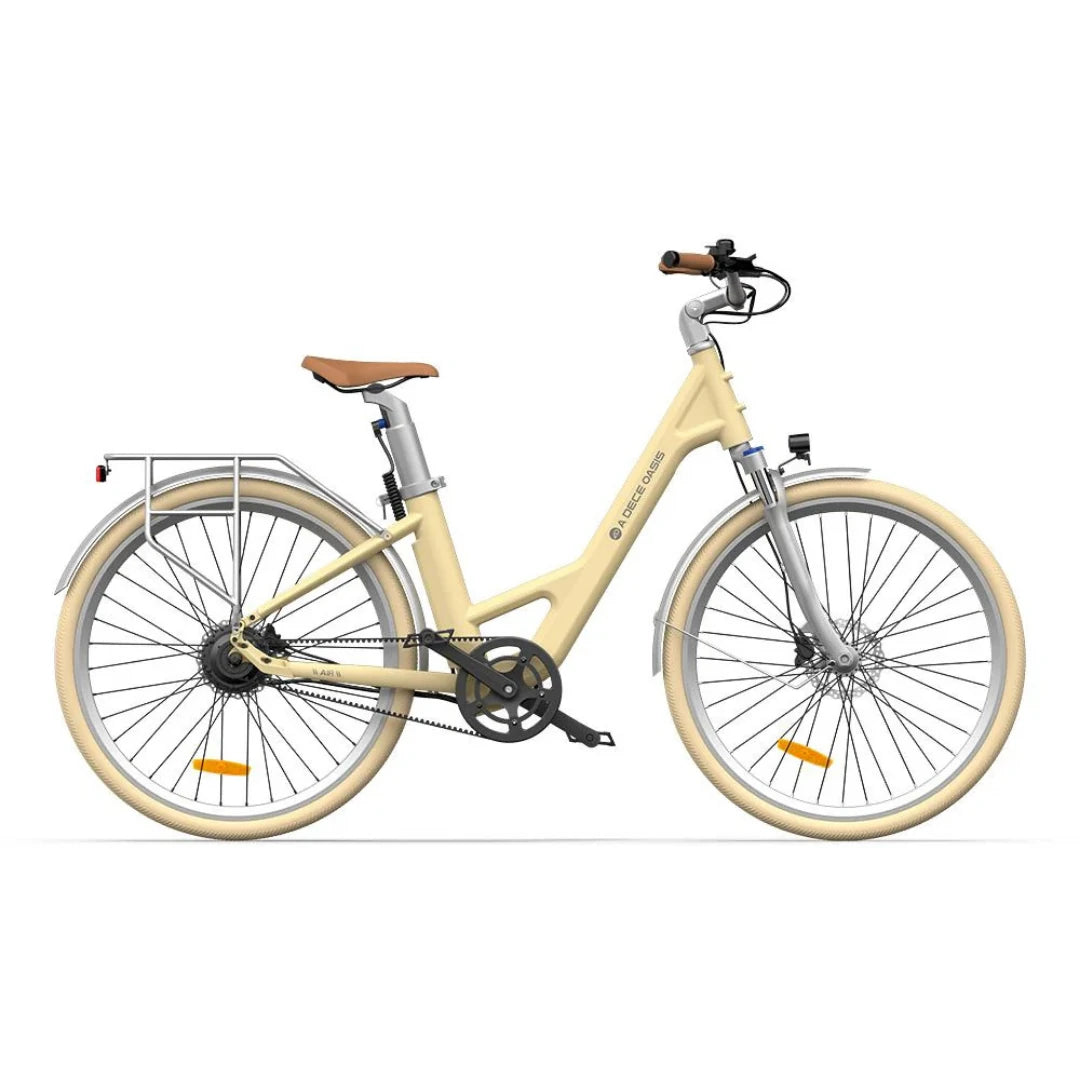

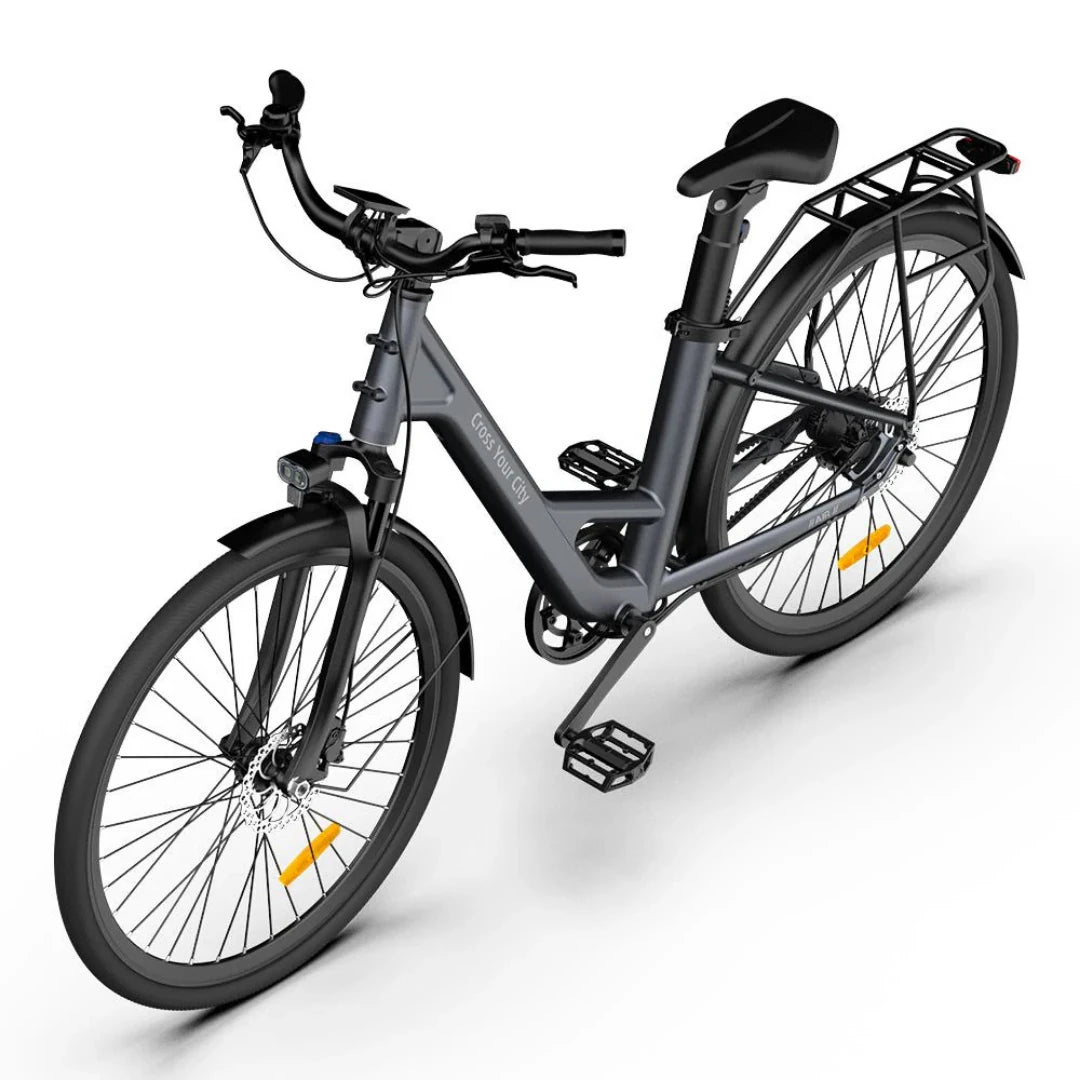

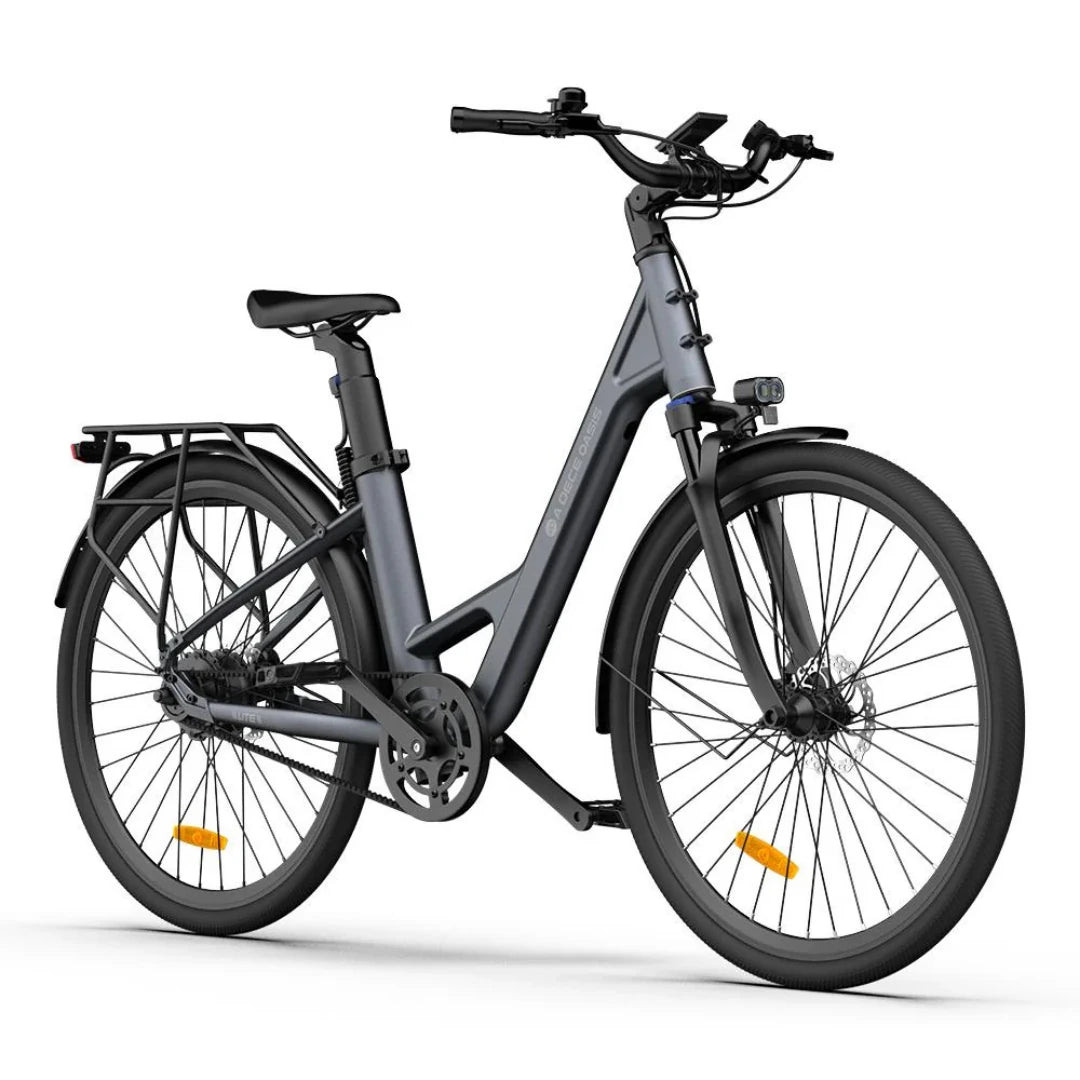

Electric Bike ADO Air 28
Premium city e-bike with carbon belt drive and smart connectivity for worry-free daily commutes

Who is this electric bike best for?
The ADO Air 28 city electric bike is designed for everyday urban riders and those seeking exceptional comfort and minimal maintenance. With a low aluminum frame (the "Dutch-style"), it allows for extremely easy mounting and dismounting, which is ideal for city rides with frequent stops. It is suitable for a wide range of rider heights, from 160 cm to 210 cm, meaning multiple family members can easily use it.

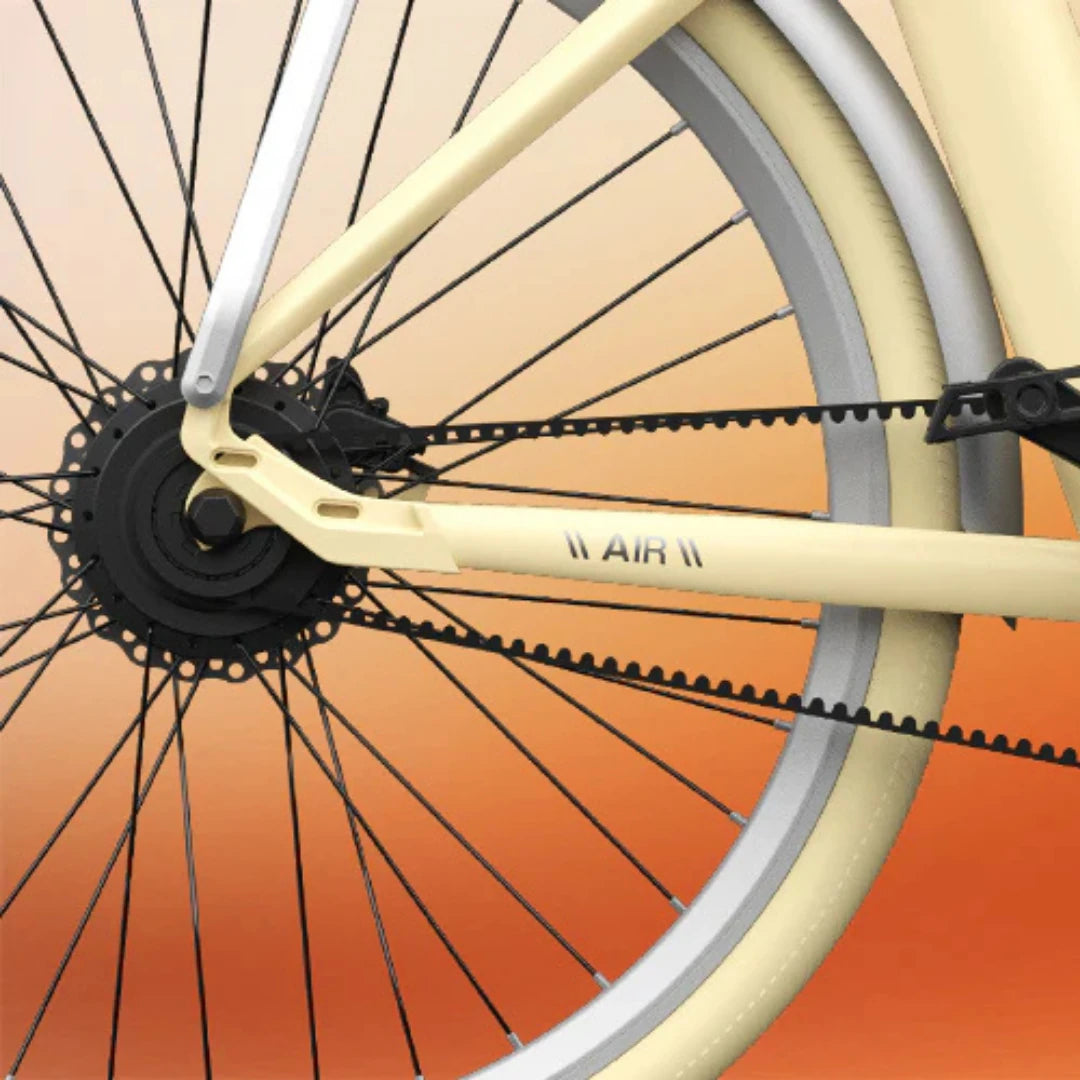

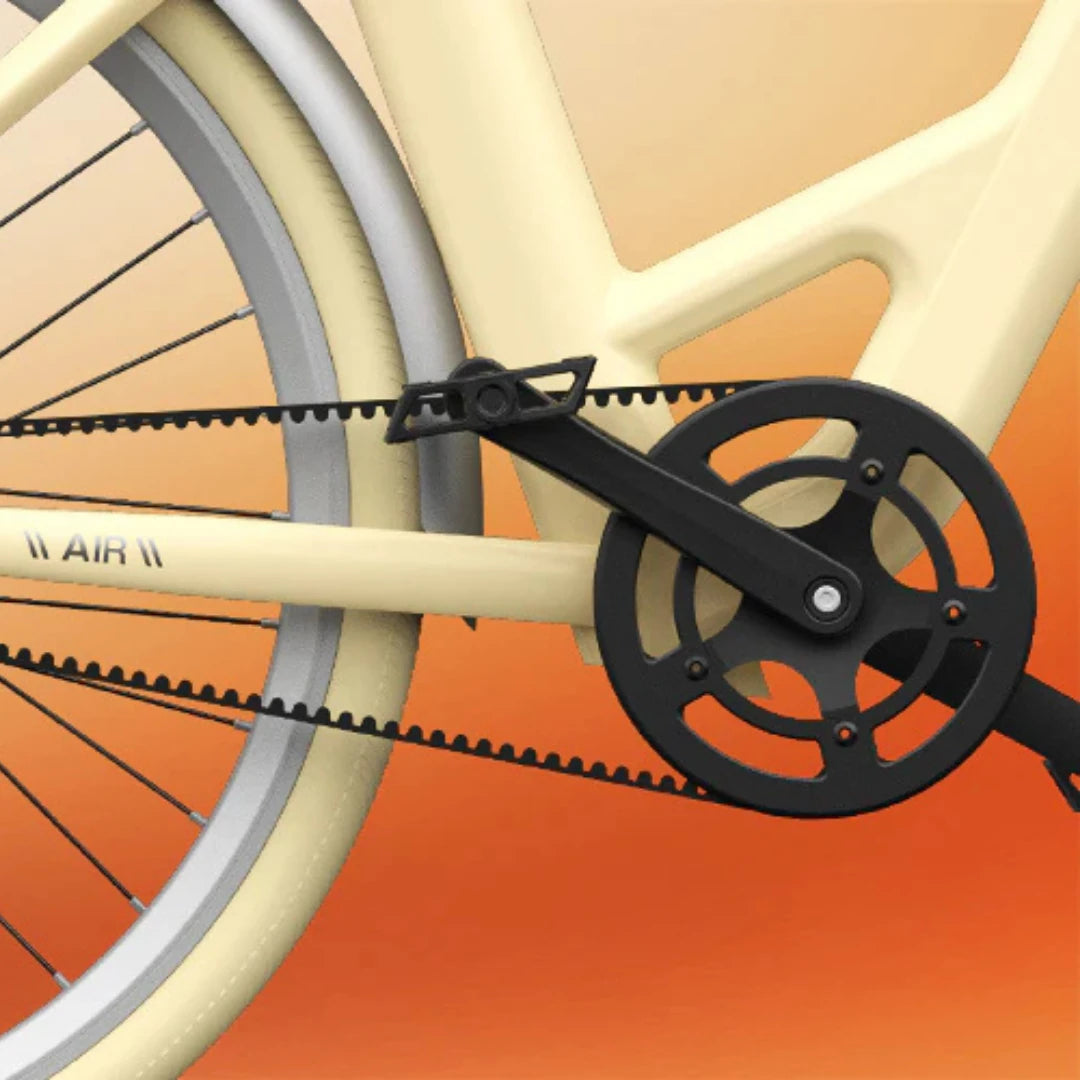

Maintenance-free Carbon Belt Drive
Forget dirty, greasy chains and loud mechanical sounds. The ADO Air 28 uses an advanced Carbon Belt Drive, which offers the strength of steel while operating completely quietly and smoothly. The biggest advantage? The belt operates without the need for lubrication or maintenance for 20,000 to 30,000 kilometers. Your clothes will stay clean, and your ride will be exceptionally pleasant and silent.

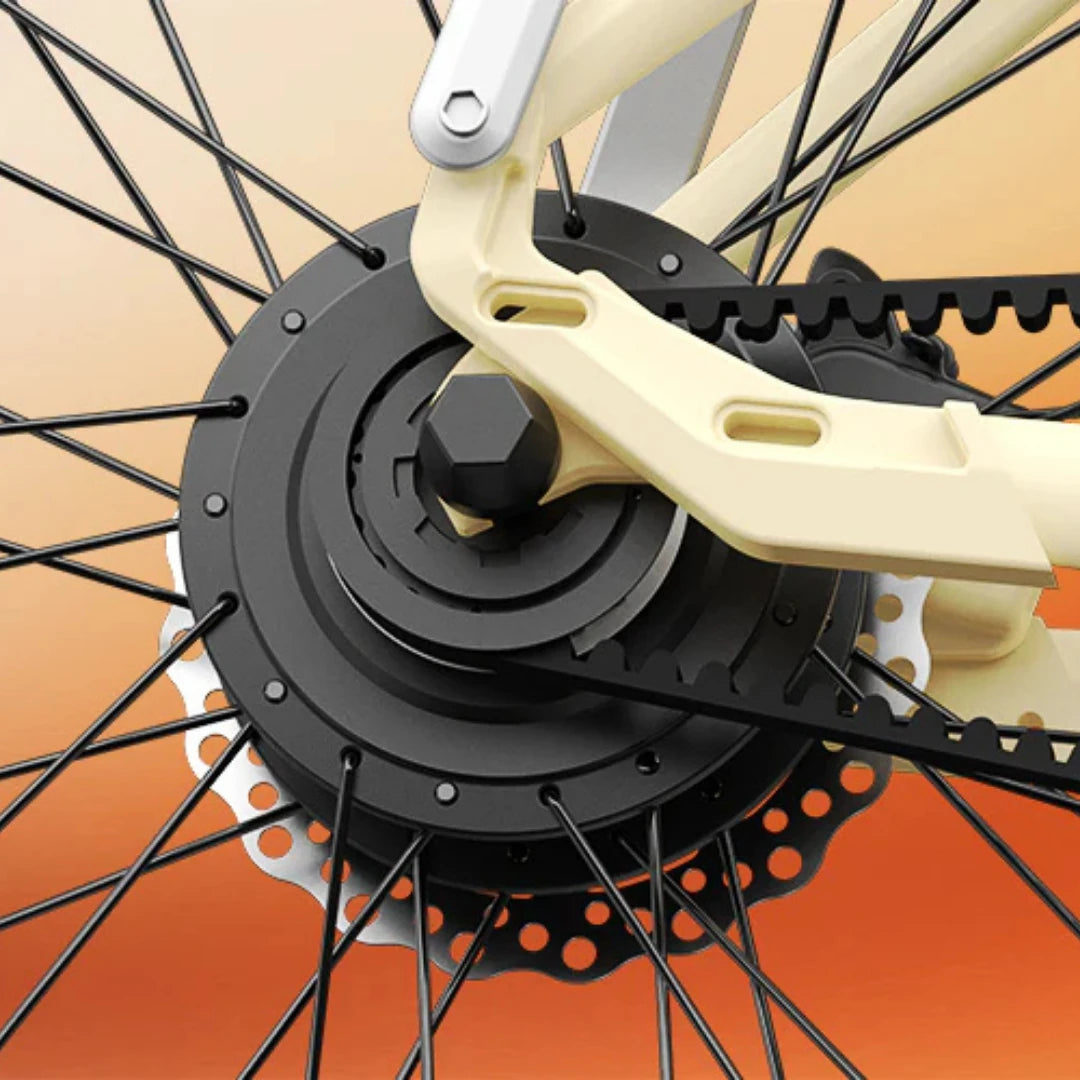

Brushless Motor and Responsive Torque Sensor
The bike is powered by a quiet and reliable brushless motor in the rear hub with a rated power of 250 W and a torque of 42 Nm. In combination with an advanced Torque Sensor, the system instantly detects the power of your pedal stroke and immediately adjusts the electric assistance accordingly. This means an extremely natural riding feel without sudden starts, ensuring complete control at every intersection.

Portable Seatpost Battery with up to 100 km Range
The elegantly designed battery with a capacity of 36V 9.6 Ah is integrated directly into the seatpost. This innovative solution combines aesthetics and functionality, as you can simply remove the seat with the battery from the bike and charge it anywhere (at home, in the office, or at a cafe). With a single charge, which takes between 4 and 6 hours, you can achieve a range of up to 100 km in assist mode.

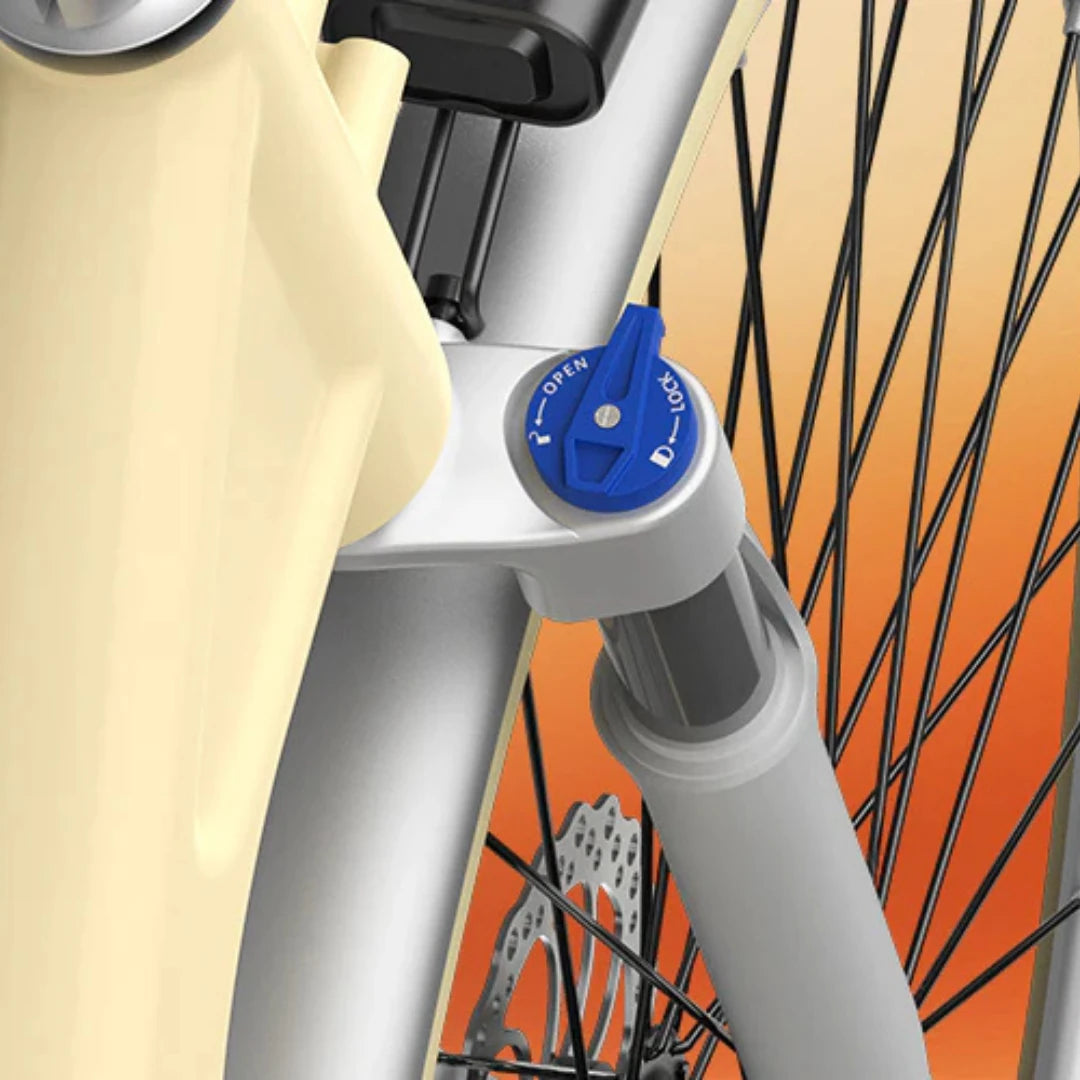

Lockout Suspension and Hydraulic Disc Brakes

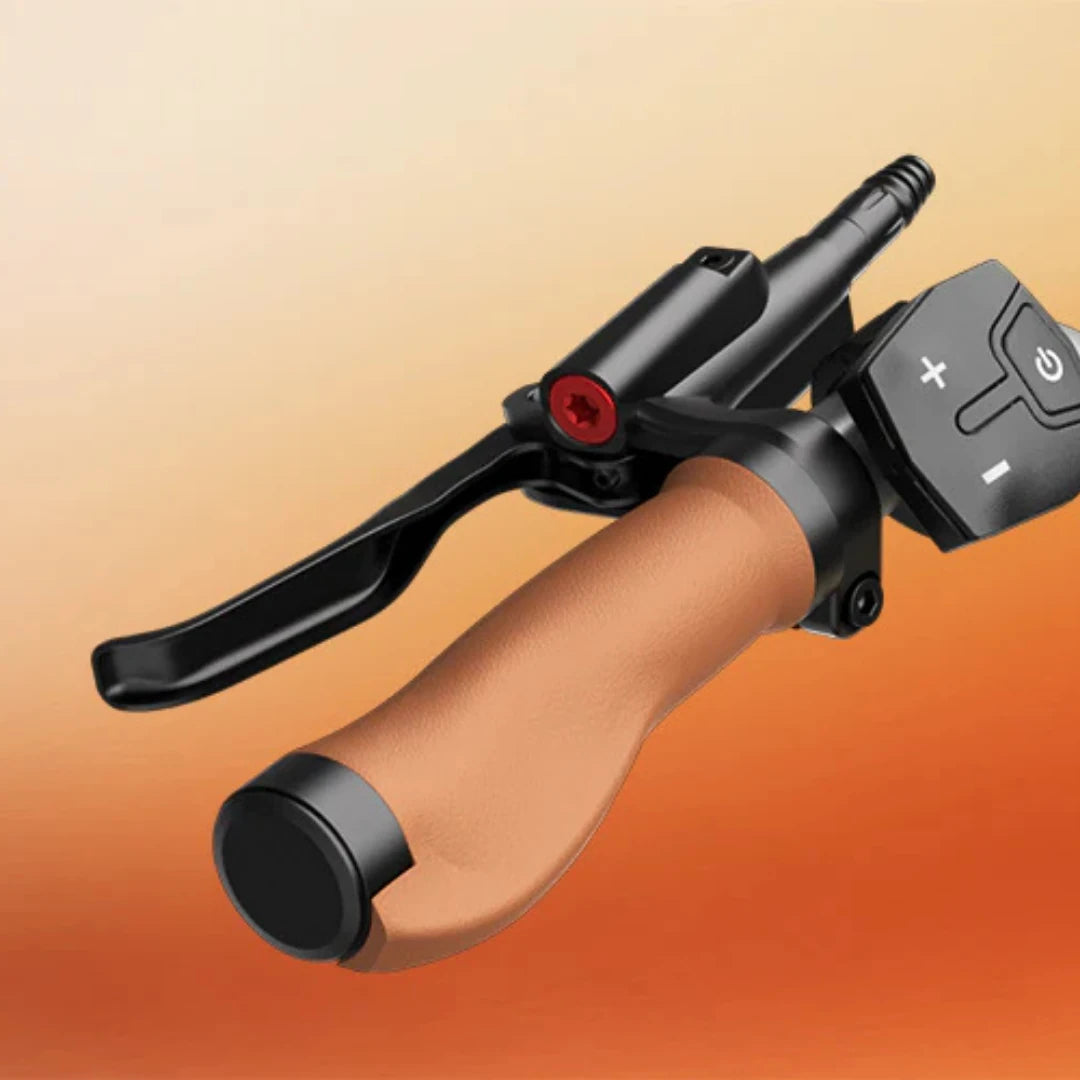

Adjustable front suspension with a lockout option (Lockout Suspension Fork) ensures safe and stable riding over city obstacles, cobblestones, or uneven paths. When riding on smooth asphalt, you can easily lock the suspension for greater power transfer efficiency. For safe and reliable stopping in all weather conditions, premium hydraulic disc brakes provide high braking power with minimal finger effort.

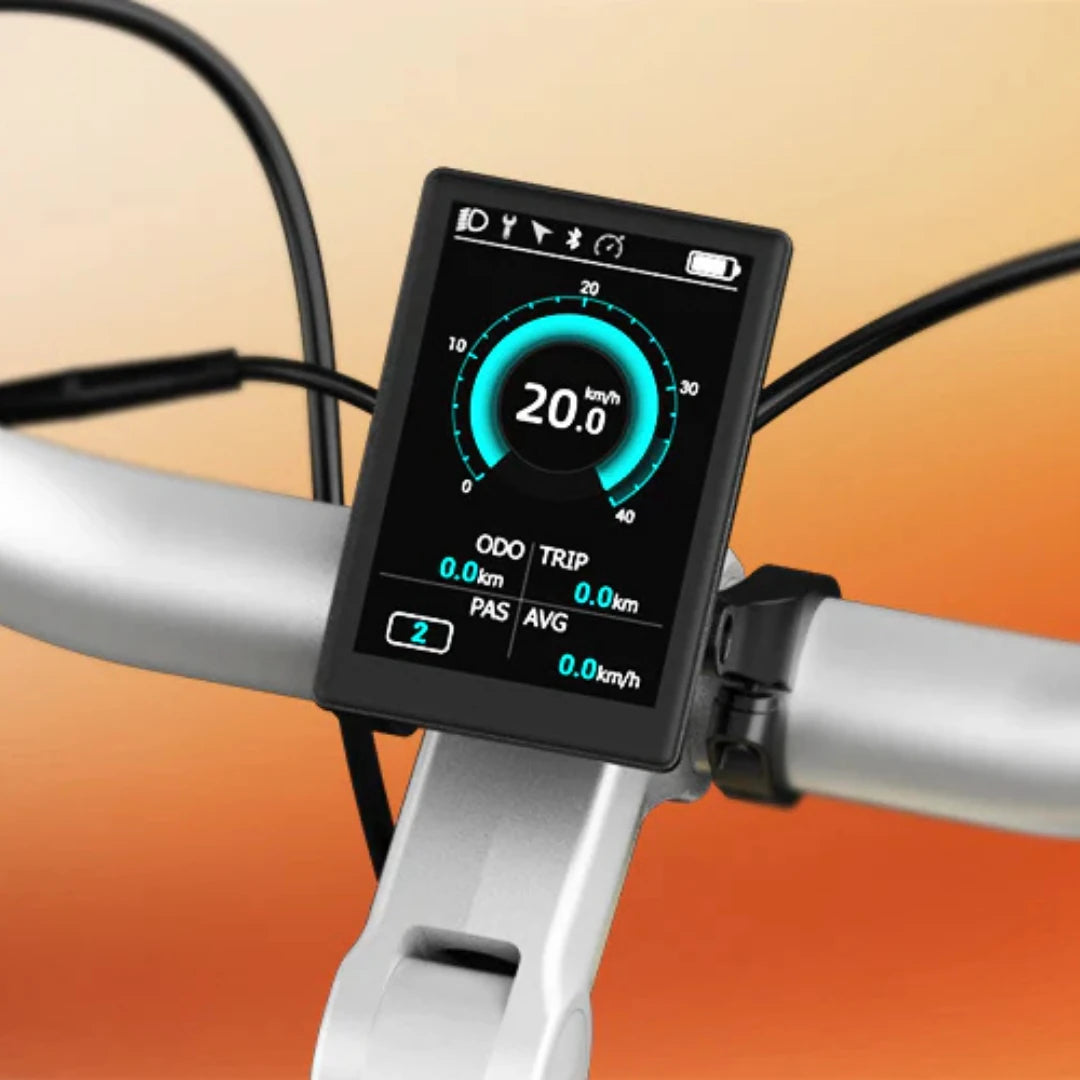

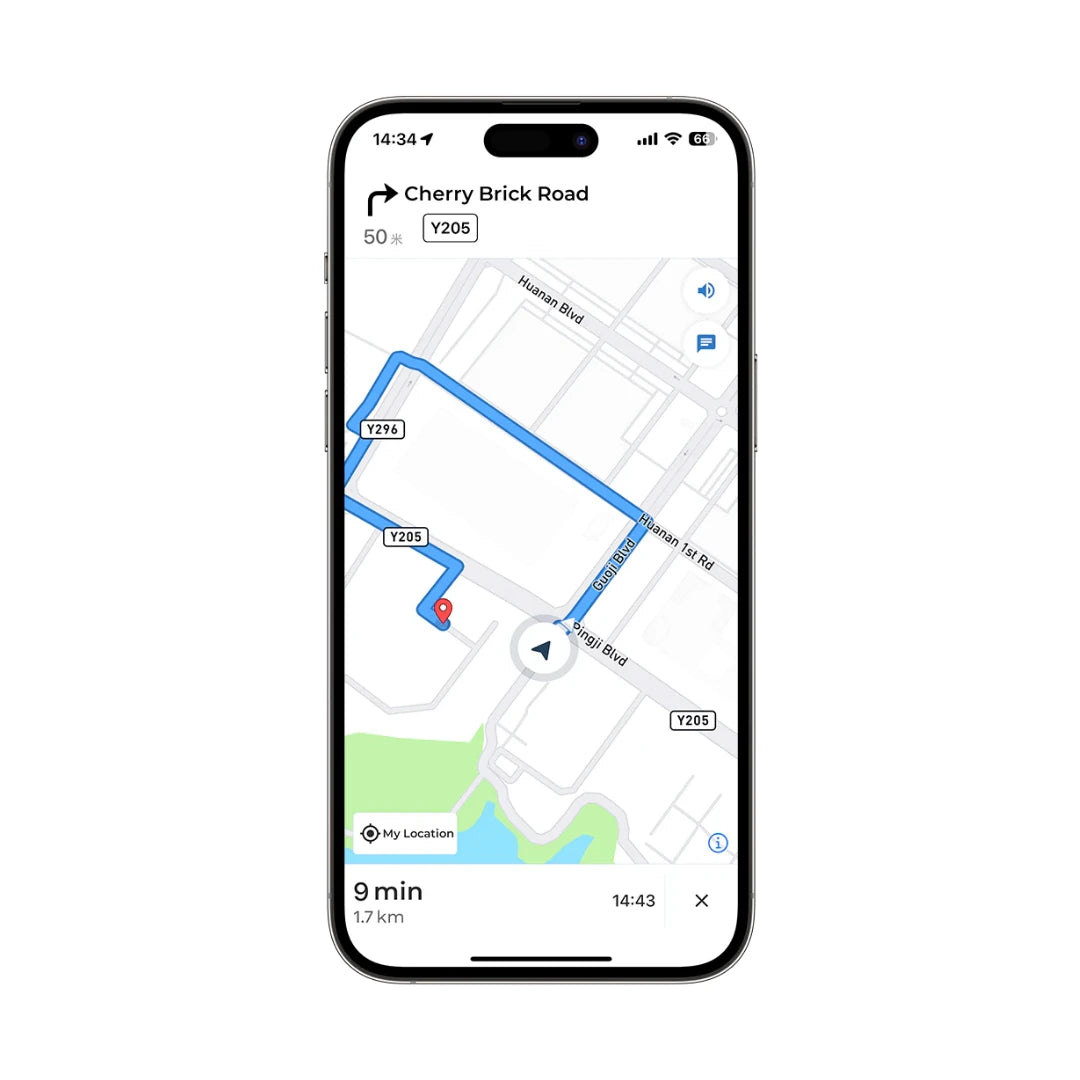

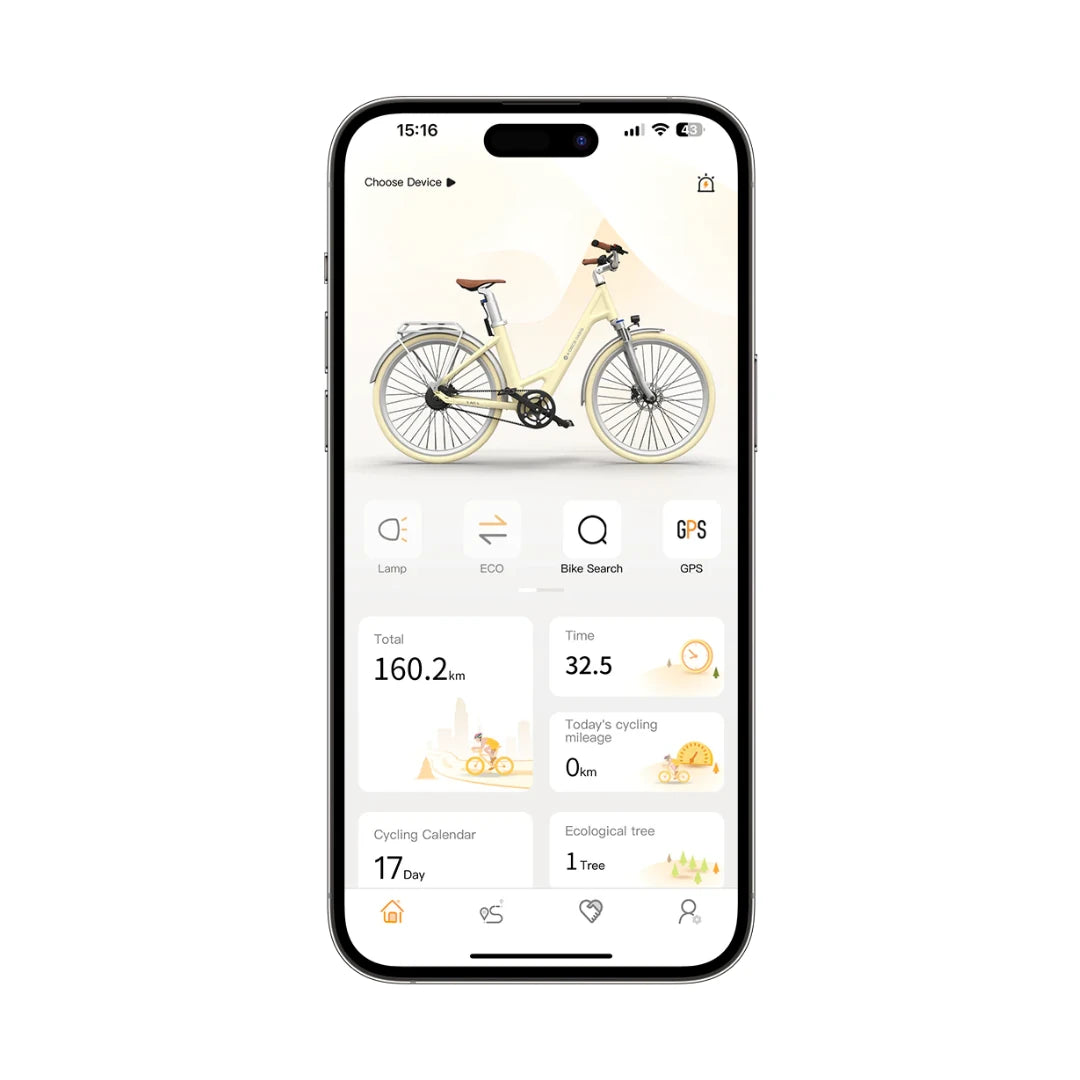

3.5" IPS Color Display and ADO Smart App

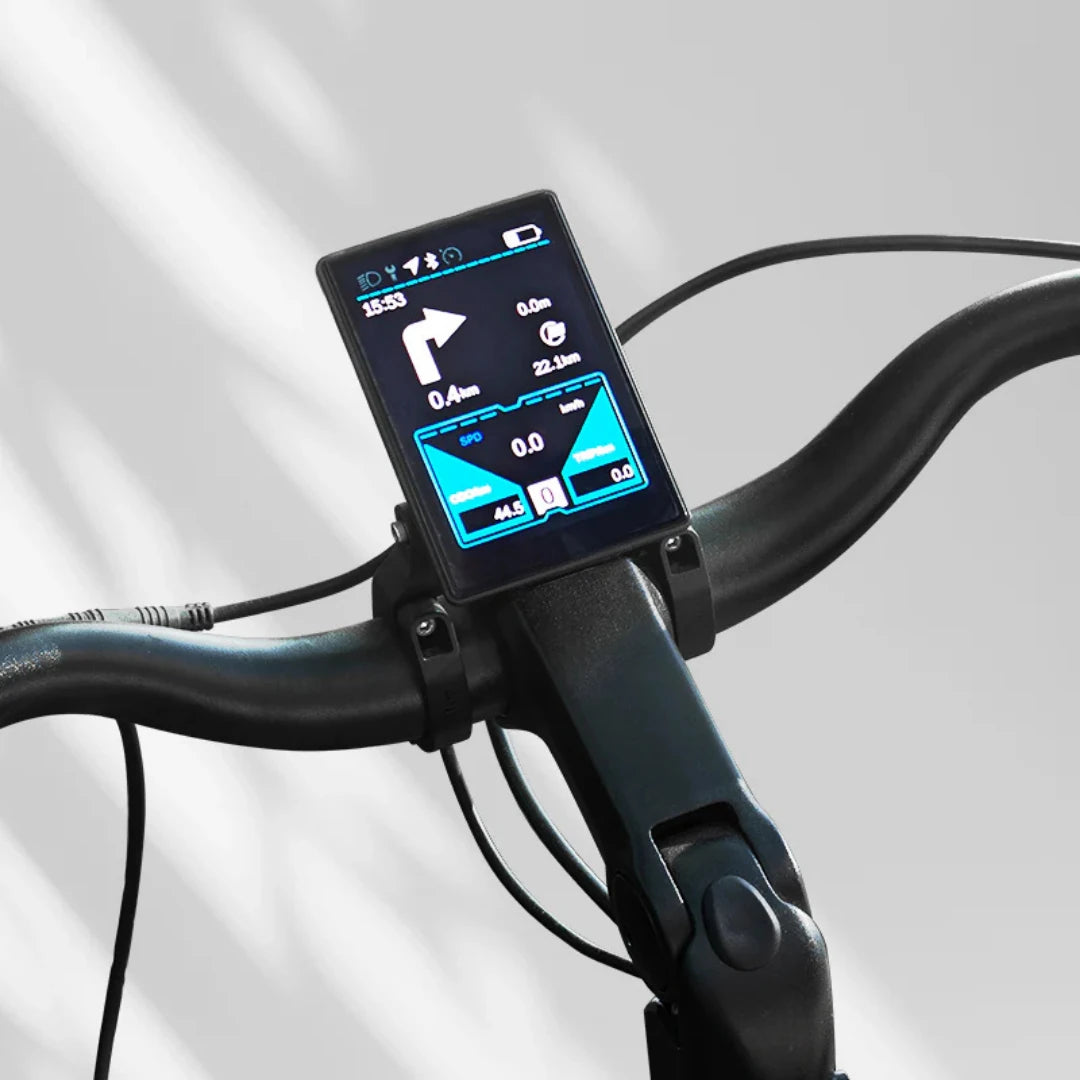

Stay connected to your bike throughout your journey. The exceptionally bright and clear 3.5-inch IPS color display offers an excellent overview of speed, battery status, and assistance level, even in strong sunlight. The bike supports connectivity with the ADO smart app, which allows real-time monitoring of ride statistics, direct projection of navigation directions onto the bike's display, and quick help seeking via the built-in support center. The bike also has a dedicated slot for installing AirTag or SmartTag trackers for additional theft protection.

Kevlar Puncture-Resistant Tires

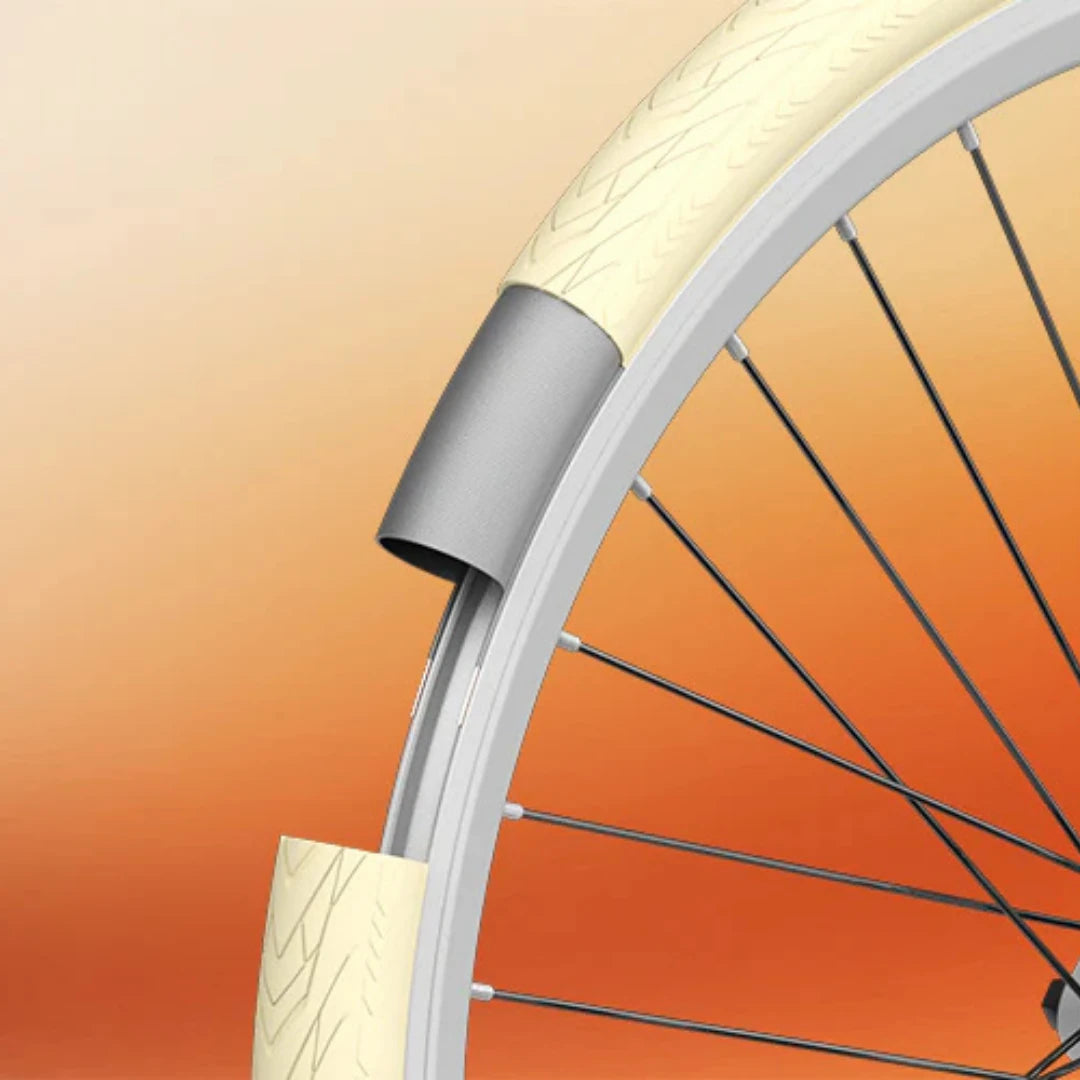

Nothing spoils a trip faster than a flat tire. That's why the ADO Air 28 is equipped with robust 28 x 1.8-inch tires made from a special Kevlar and rubber composite. This protective layer significantly increases resistance to punctures from sharp stones, glass, or thorns, while also offering excellent grip on wet and dry road surfaces.

Automatic Lighting and Thoughtful Accessories

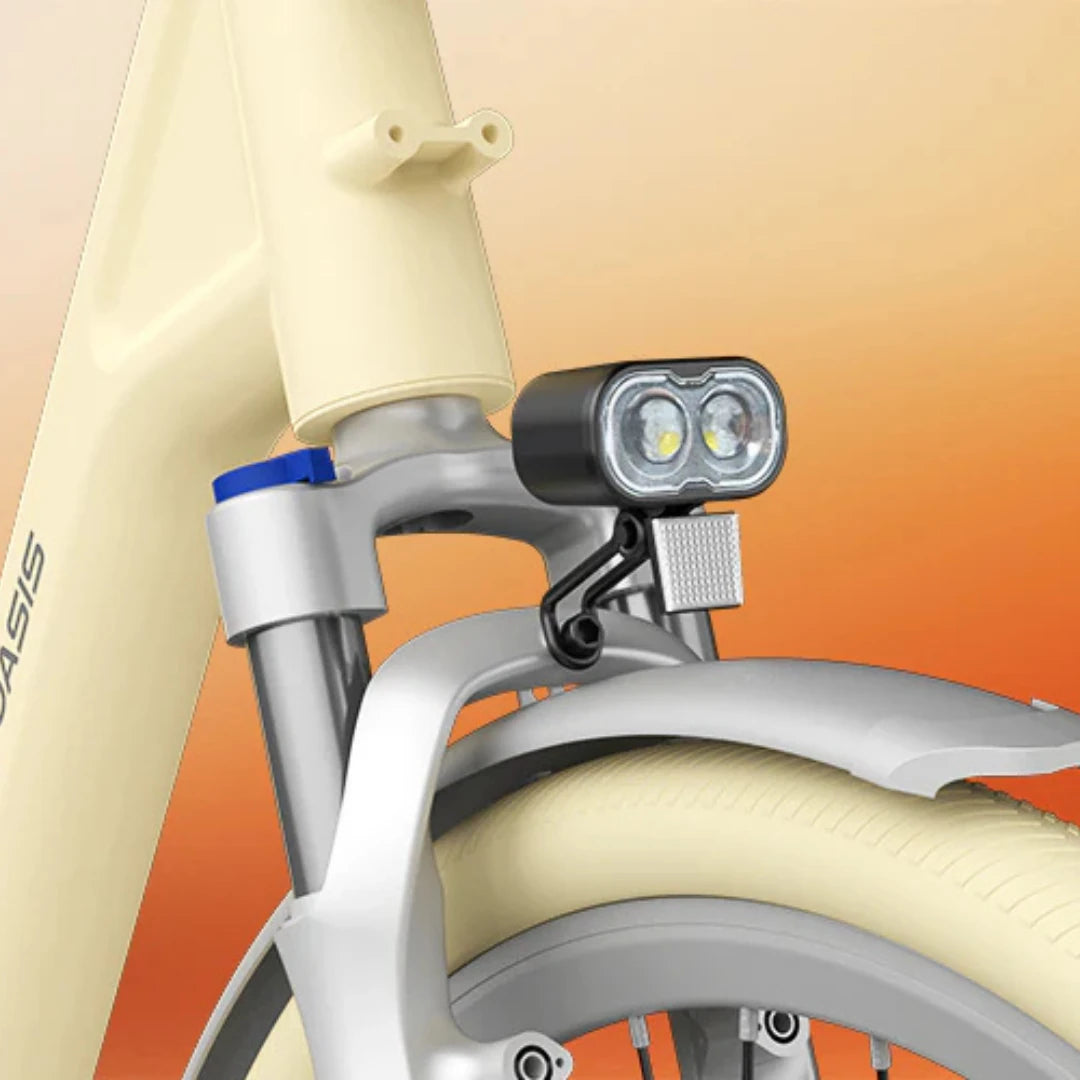

City riding requires maximum visibility. The bike is equipped with an integrated front headlight with a light sensor (E-Mark IPX5), which automatically turns on when it starts to get dark outside. The electric rear light ensures you are always visible from behind. Additional comfort is provided by lightweight aluminum fenders, which protect you from water spray, and ergonomic handlebars for a relaxed riding posture.
What do you receive with your purchase?
- Electric Bike ADO Air 28 (in chosen color)
- Removable seatpost battery 36V 9.6 Ah
- Battery charger (42V / 2A)
- Aluminum fenders (front and rear)
- Tool kit for easy assembly
- User manual and instructions
- Warranty: 2 years warranty on the aluminum frame and 12 months on the motor, battery, controller, fork, handlebars, and charger.
- Service and support at Tržaška cesta 222, 1000 Ljubljana.
Technical Specifications
| Model | ADO Air 28 (CE version) |
| Rated Motor Power | 250 W (Brushless motor in the rear hub) |
| Max Torque | 42 Nm |
| Battery | 36V 9.6 Ah (portable, integrated in seatpost) |
| Charging Time | 4 - 6 hours |
| Range | up to 100 km (depends on assistance level and terrain) |
| Max Speed | up to 25 km/h (limited according to CE/EN 15194 standards) |
| Assistance Sensor | Torque Sensor |
| Smart Assistance Levels | 3 levels (0-3 level system) |
| Display | 3.5" IPS color display (supports navigation display) |
| Drive | Gates Carbon belt (carbon belt drive) |
| Braking System | Hydraulic disc brakes (front and rear) |
| Suspension | Front suspension fork with lockout option |

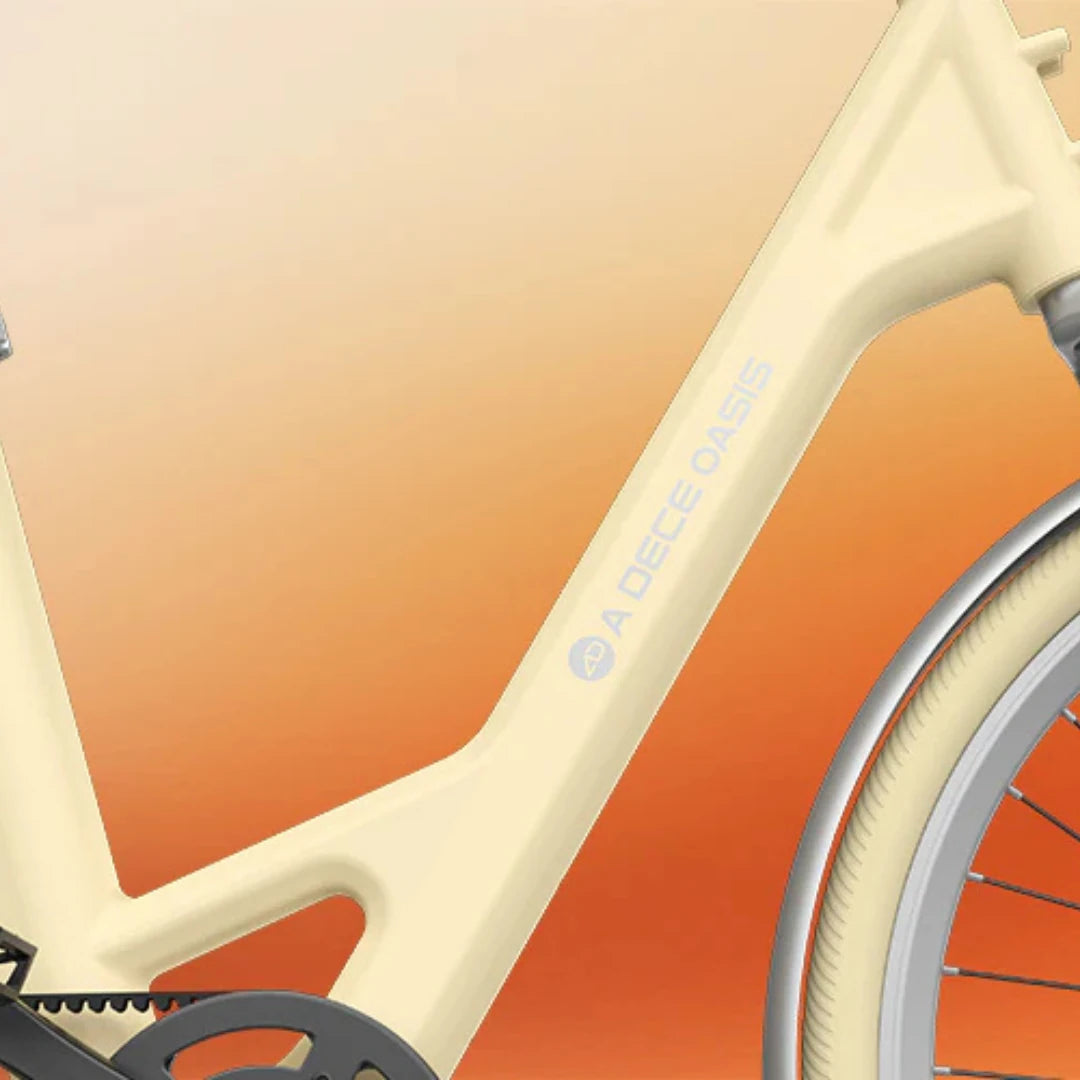

| Frame | Lightweight aluminum frame (low step-over height / Dutch-style) |
| Wheel Size / Tires | 28" x 1.8" (tires with Kevlar puncture protection) |
| Lights | E-Mark IPX5 front headlight with light sensor, electric rear light |
| Fenders | Aluminum fenders |
| Pedals | Folding pedals |
| Recommended Rider Height | 160 cm – 210 cm |
| Max Load Capacity | up to 120 kg |
| Operating Temperature | -10 °C to 50 °C |
| Weight (without rack) | 20 kg |
| Weight (with rack) | 21 kg |
| Certificates | SGS CE, EN 15194 (Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU), UN 38.3 (battery) |
| Geometry and Dimensions (mm) | |
| A - Max Seat Height | 1100 mm |
| B - Min Seat Height | 850 mm |
| C - Standover Height | 720 mm |
| D - Seat Tube Length | 450 mm |
| E - Handlebar Height | 1190 mm |
| F - Bottom Bracket Height | 193 mm |
| G - Front Axle - Crank Distance | 670 mm |
| H - Wheelbase | 1200 mm |
| I - Top Tube Length | 560 mm |
| J - Total Bike Length | 1935 mm |
