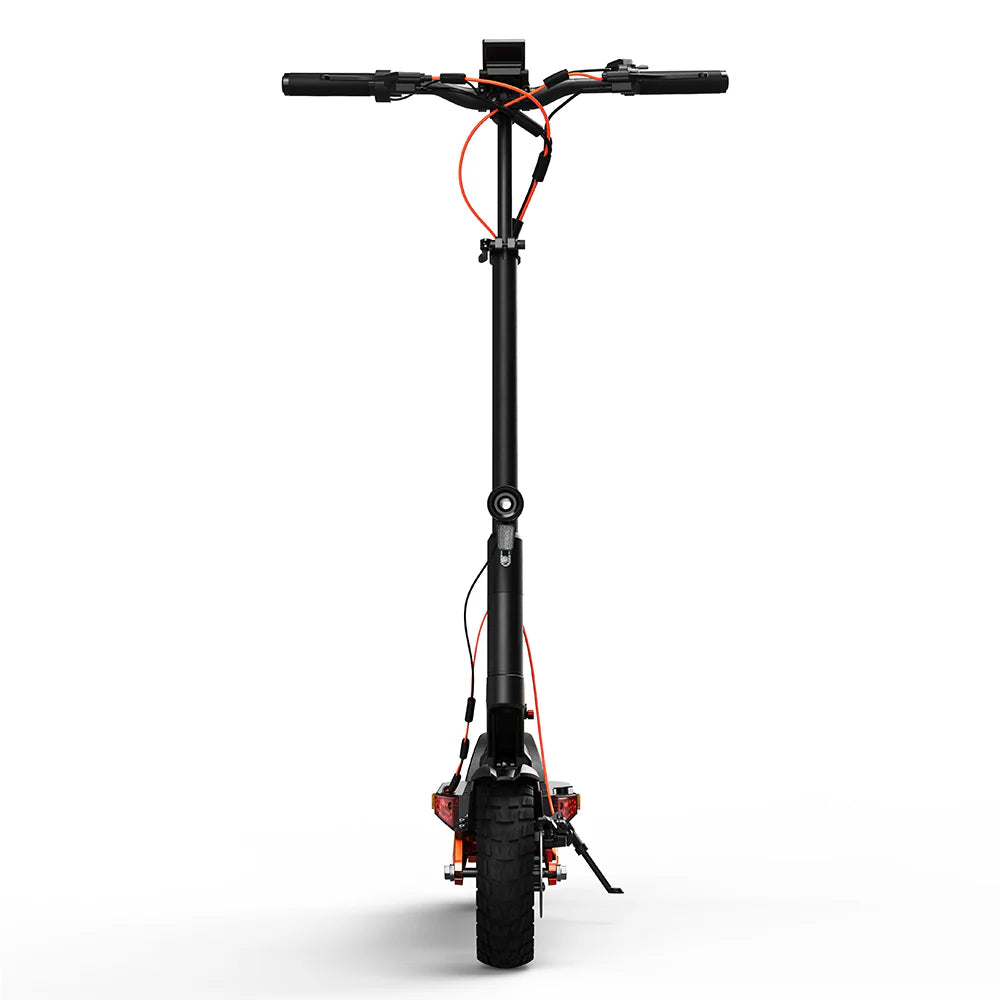

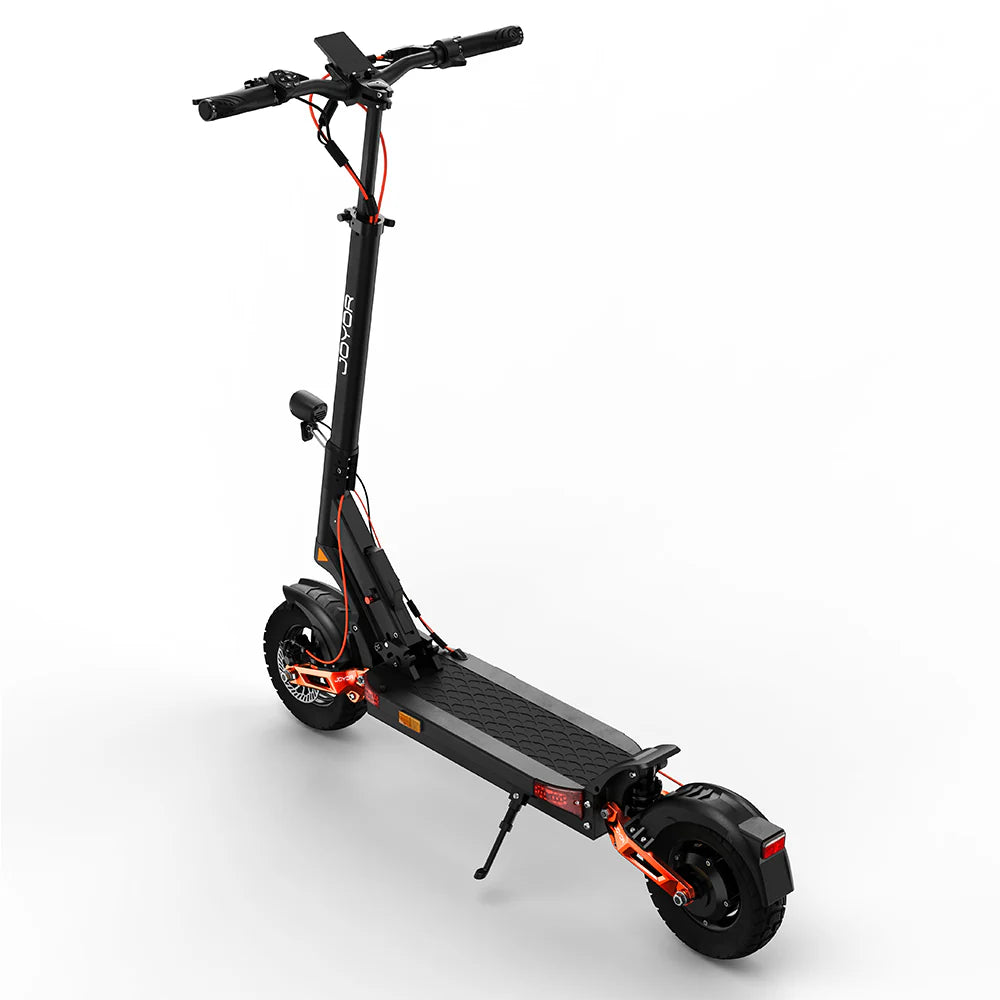

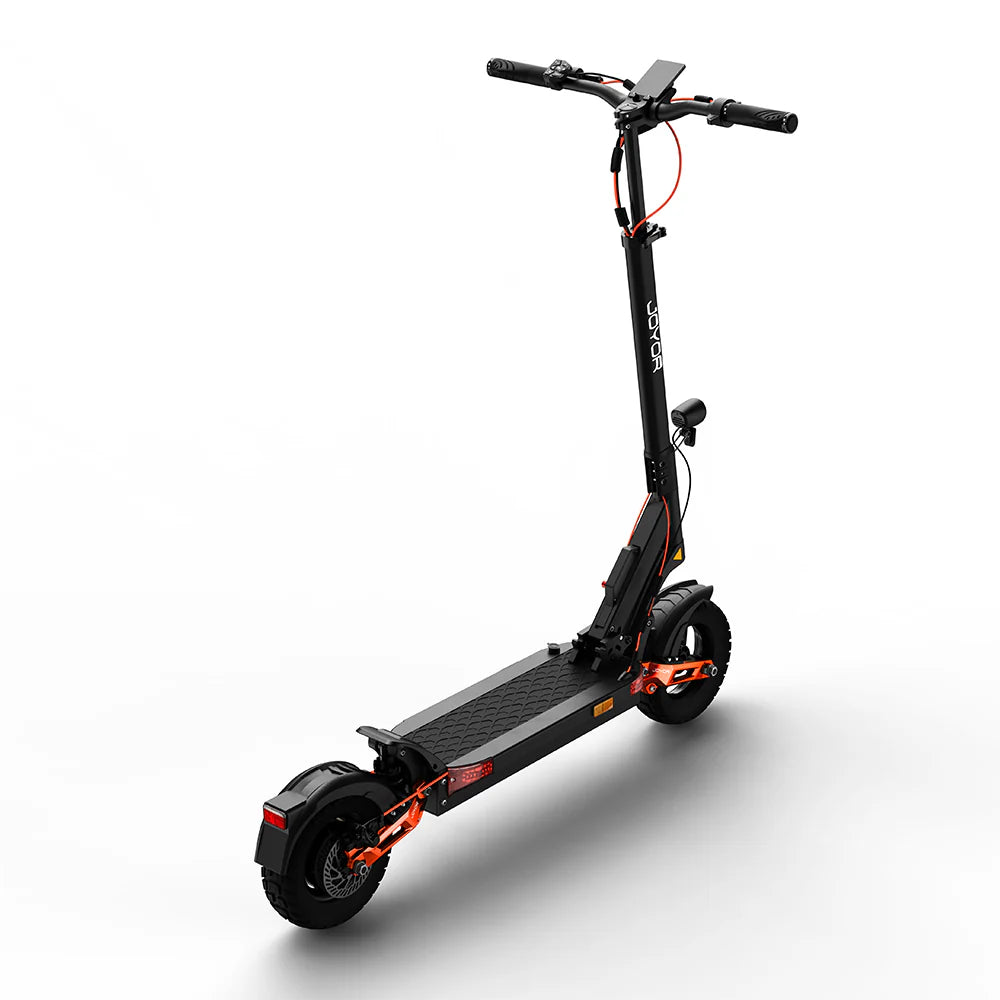

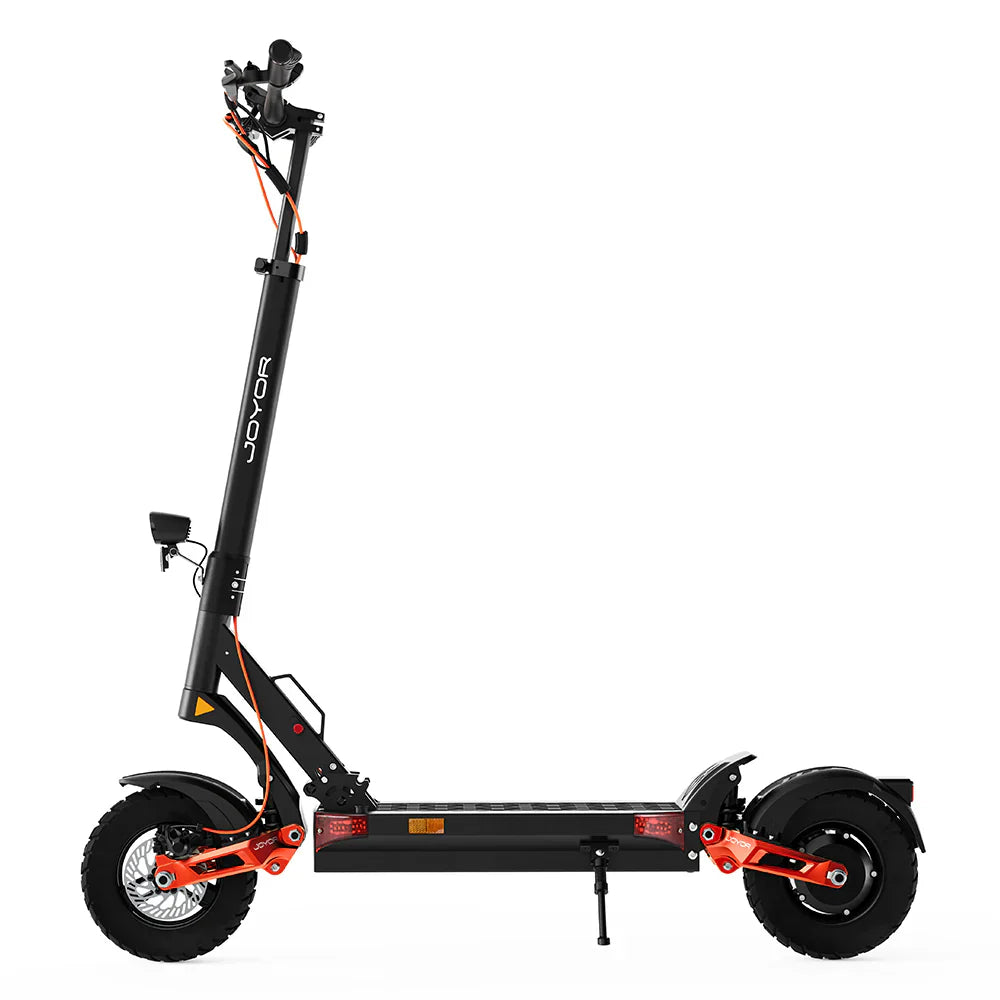

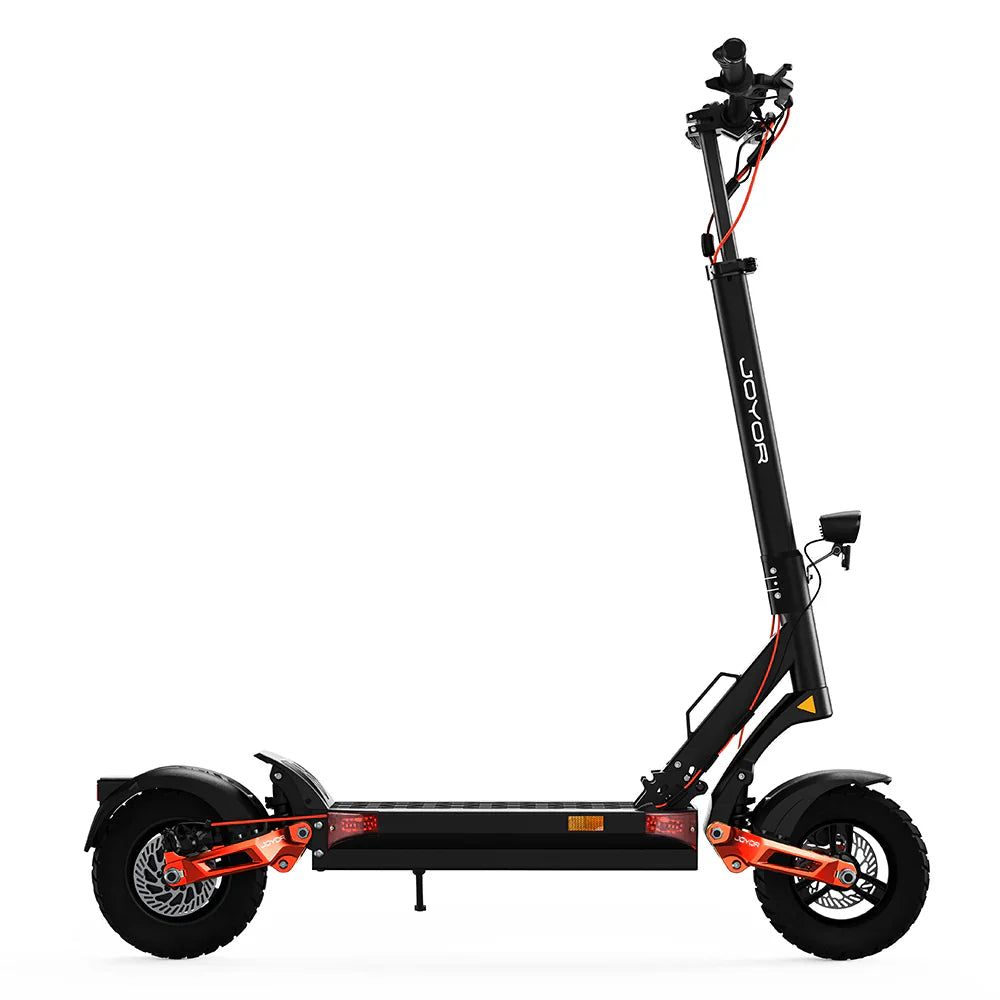

Off-road electric scooter
Joyor T6
Power Meets Precision
Specifications of
Joyor T6
Motor | |
---|---|
Drivetrain | Rear drive |
Nominal Power | 600 W |
Maximum Power | 1.100 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 3 speed modes |
Maximum Incline Angle | 25% |
Battery | |
Maximum Range | 70 km |
Battery Capacity | 18 Ah |
Battery Voltage | 48 V |
Charging Time | 9-10 hours |
Charger Type | 1x Standard charger |
Suspension | |

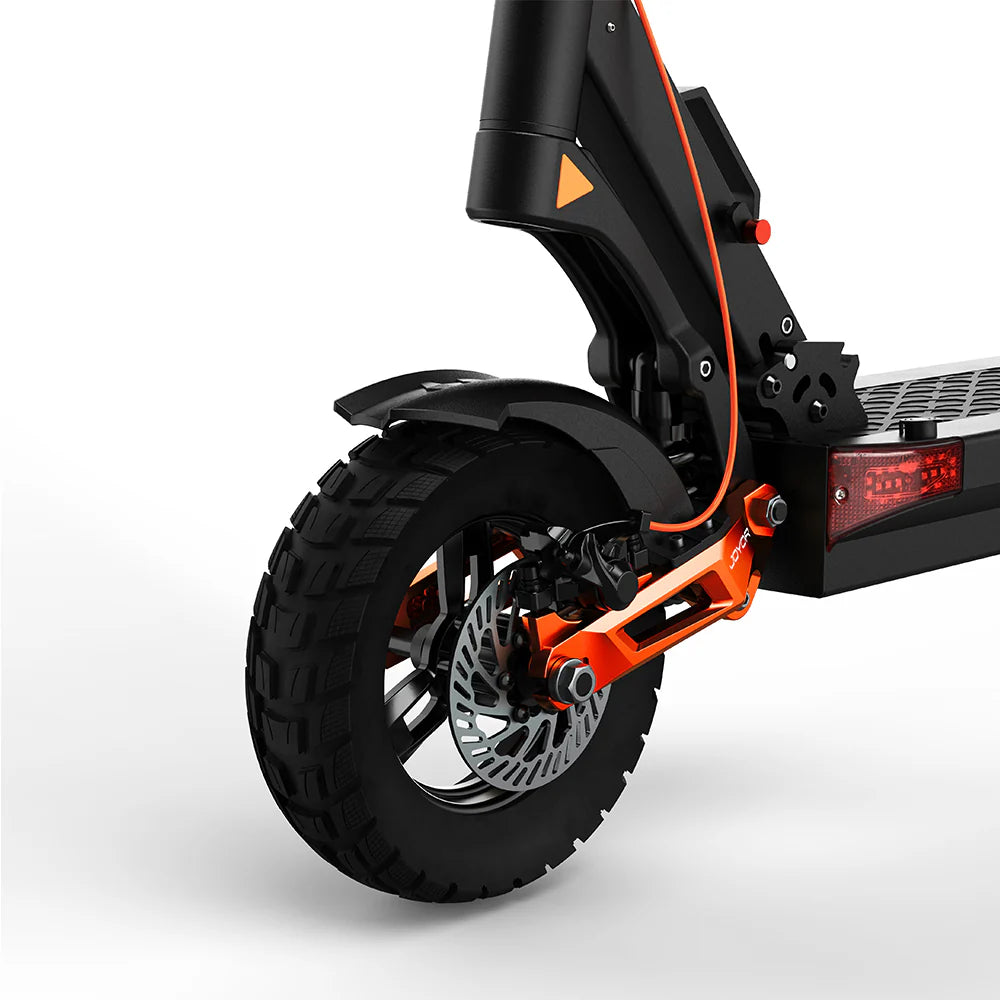

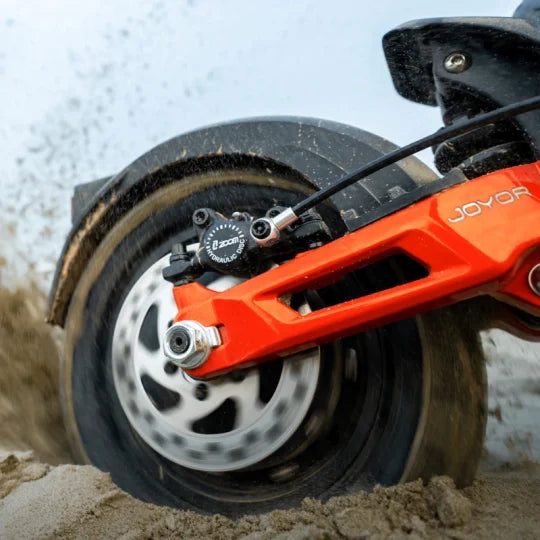

Front Suspension | Swingarm with hydraulic spring shock absorption |

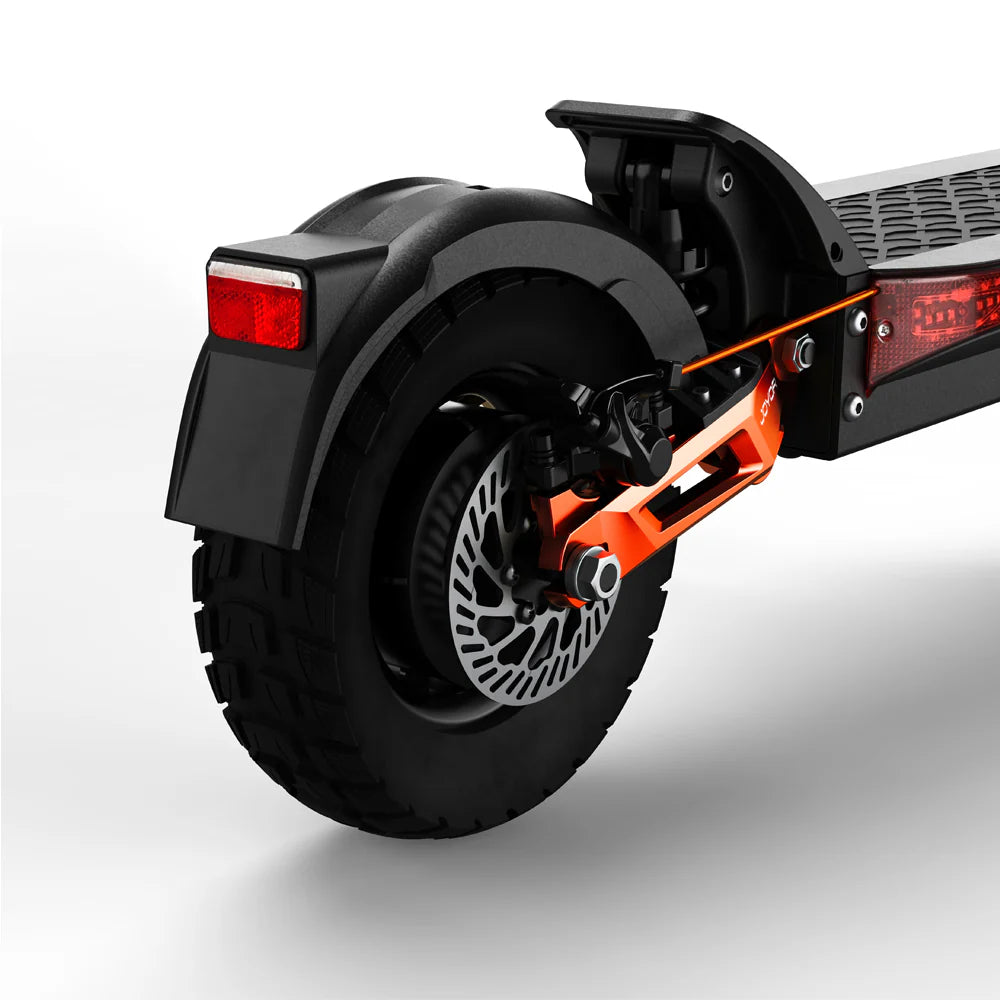

Rear Suspension | Swingarm with hydraulic spring shock absorption |
Brakes | |
Front Brake | Mechanical disc brake |
Rear Brake | Mechanical disc brake |
Tires | |
Tire Type | Pneumatic |
Front Wheel Size | 10" |
Rear Wheel Size | 10" |
Lighting | |
Front light, Brake rear light, Turning / Side light | |
Water Protection | |
IP54 - Protected from dust & light water splashes | |
Dimensions | |
Length | 1230 mm |
Height | 1305 mm |
Width | 630 mm |
Folded | |
Length | 1170 mm |
Height | 540 mm |
Width | 630 mm |
Other | |
Recommended Height | 160-200 cm |
Net Weight | 25.6 kg |
Load Capacity | 120 kg |
Warranty | 1 year |
-
Comfort & Design
The Joyor T6 electric scooter is meticulously designed for a comfortable and stable riding experience. It features a sophisticated dual swingarm suspension system with front and rear hydraulic spring shock absorption, which effectively minimizes vibrations on uneven surfaces. This is complemented by large 10-inch pneumatic off-road tires that offer excellent traction and cushioning. The scooter's ergonomic design includes a wide footboard for secure footing and control.
-
Maintenance
Maintaining the Joyor T6 electric scooter is straightforward, ensuring its long-term reliability. Regularly check the air pressure in the 10-inch tires to ensure optimal performance and comfort. It is crucial to inspect the mechanical disc brakes for proper alignment and pad wear. Adherence to the recommended charging protocol for the 48V battery will preserve its health. The scooter's aluminum alloy frame requires only simple cleaning to maintain its condition.
