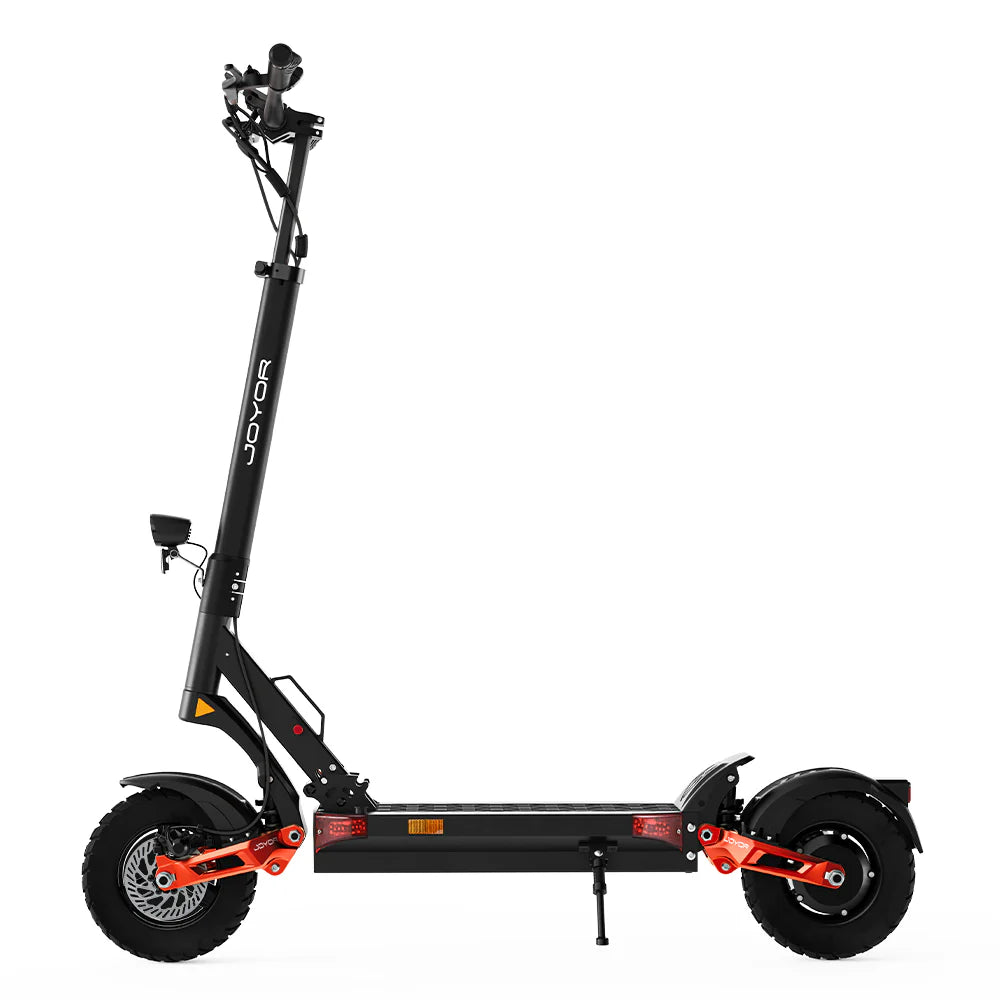

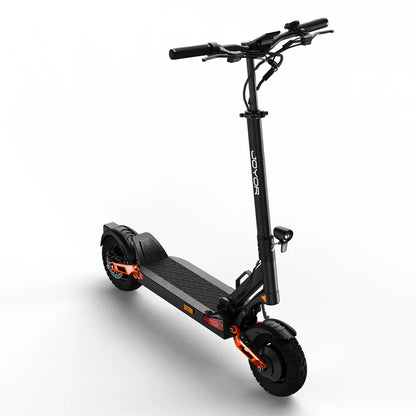

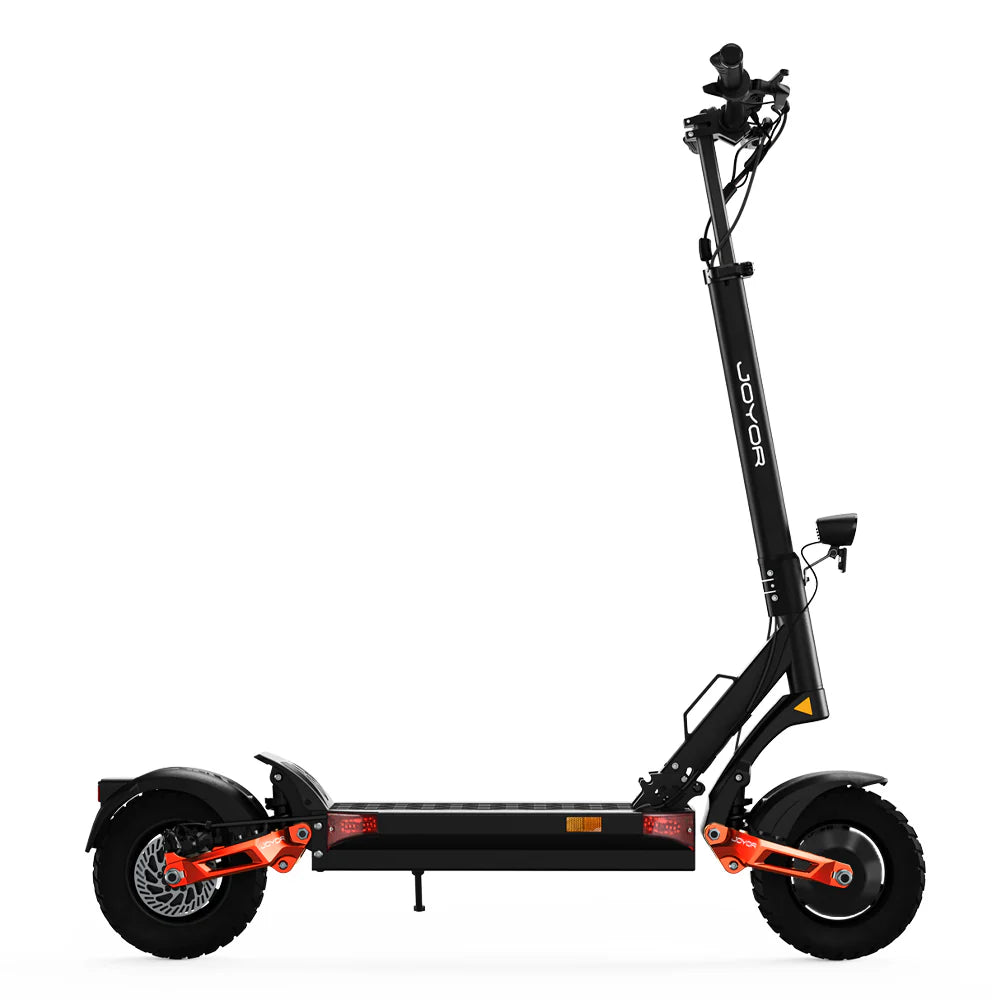

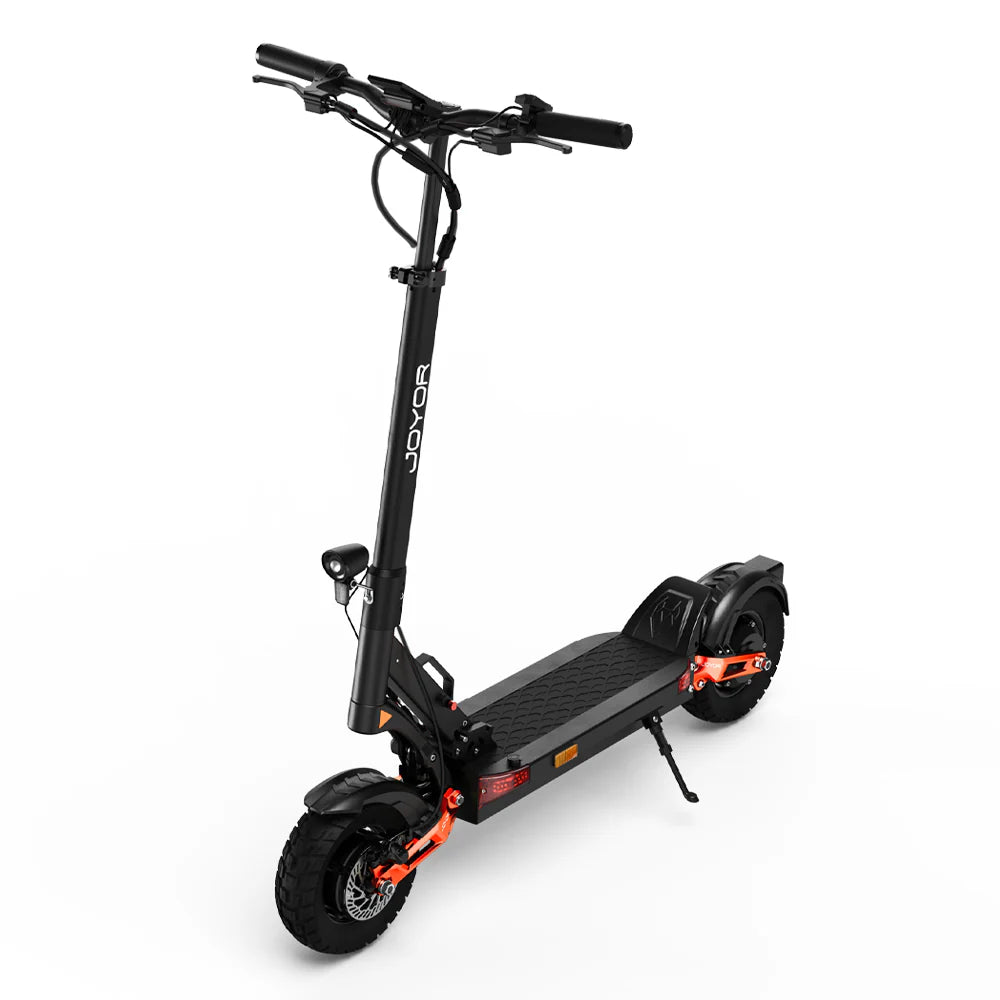

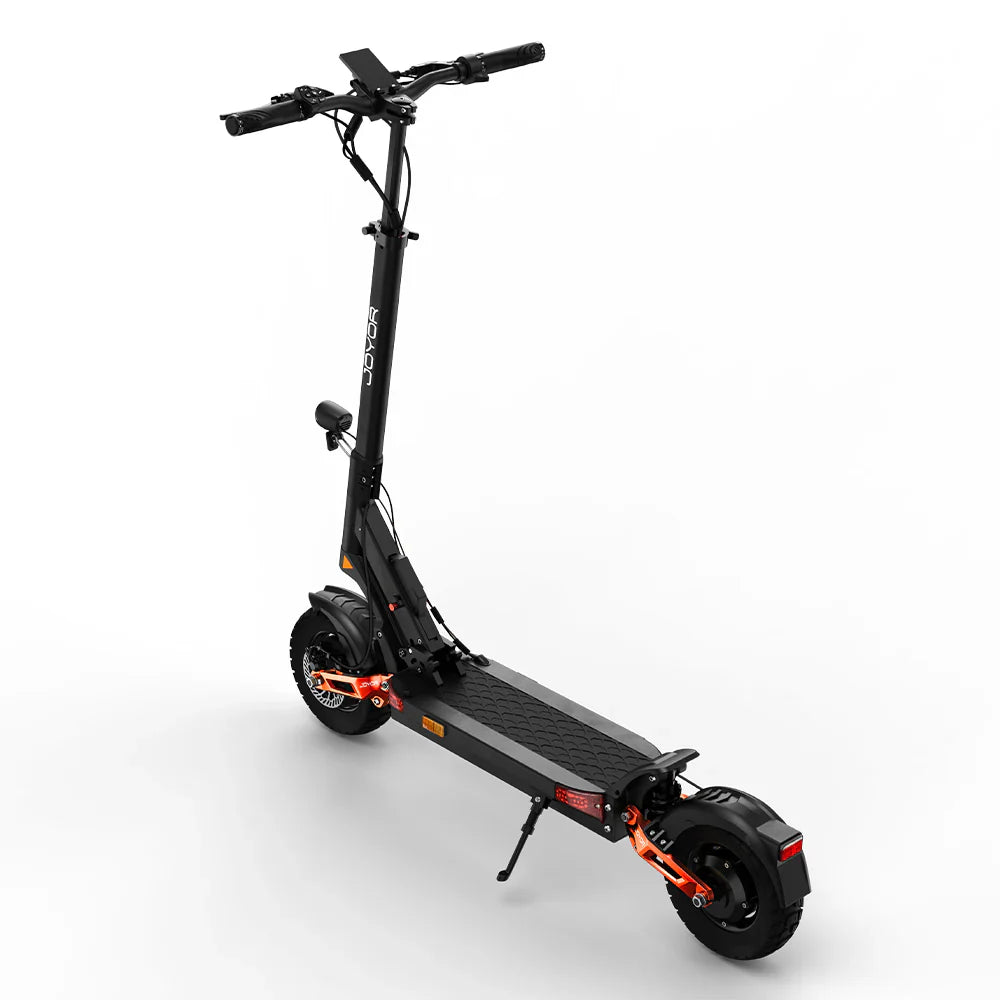

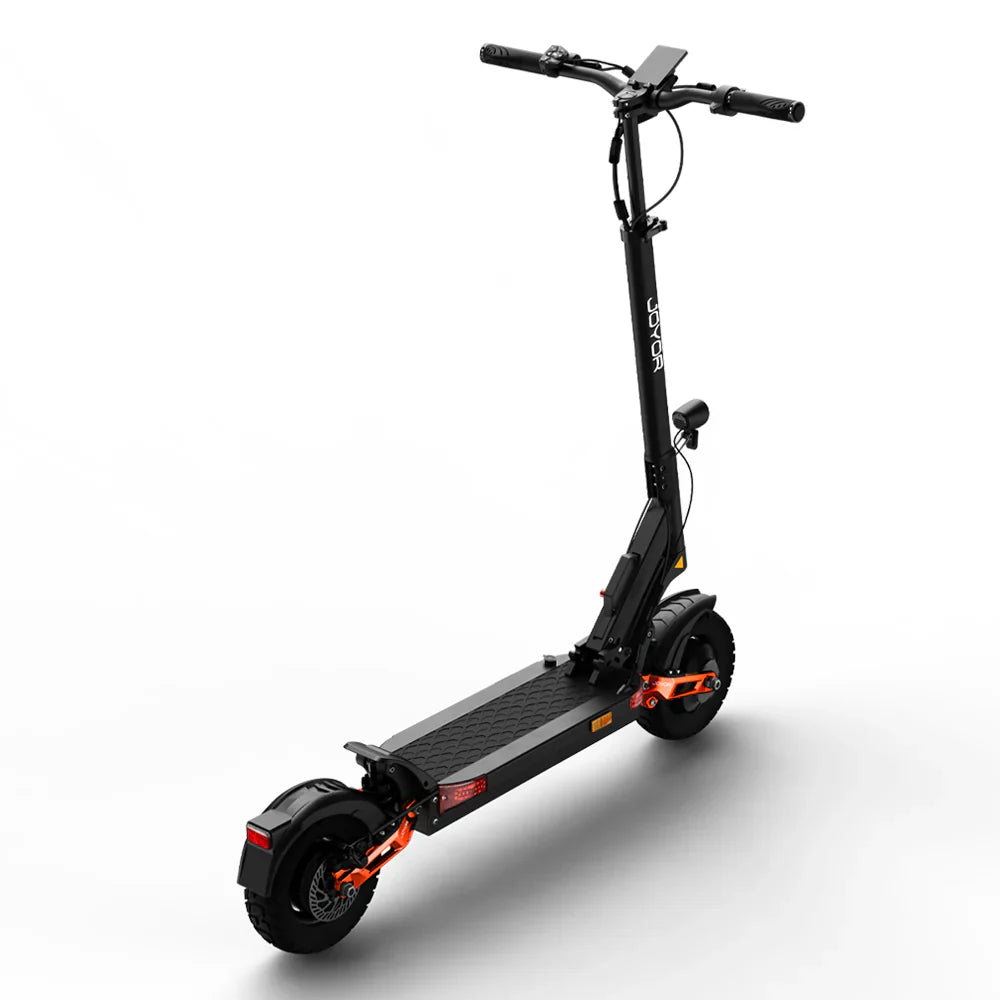

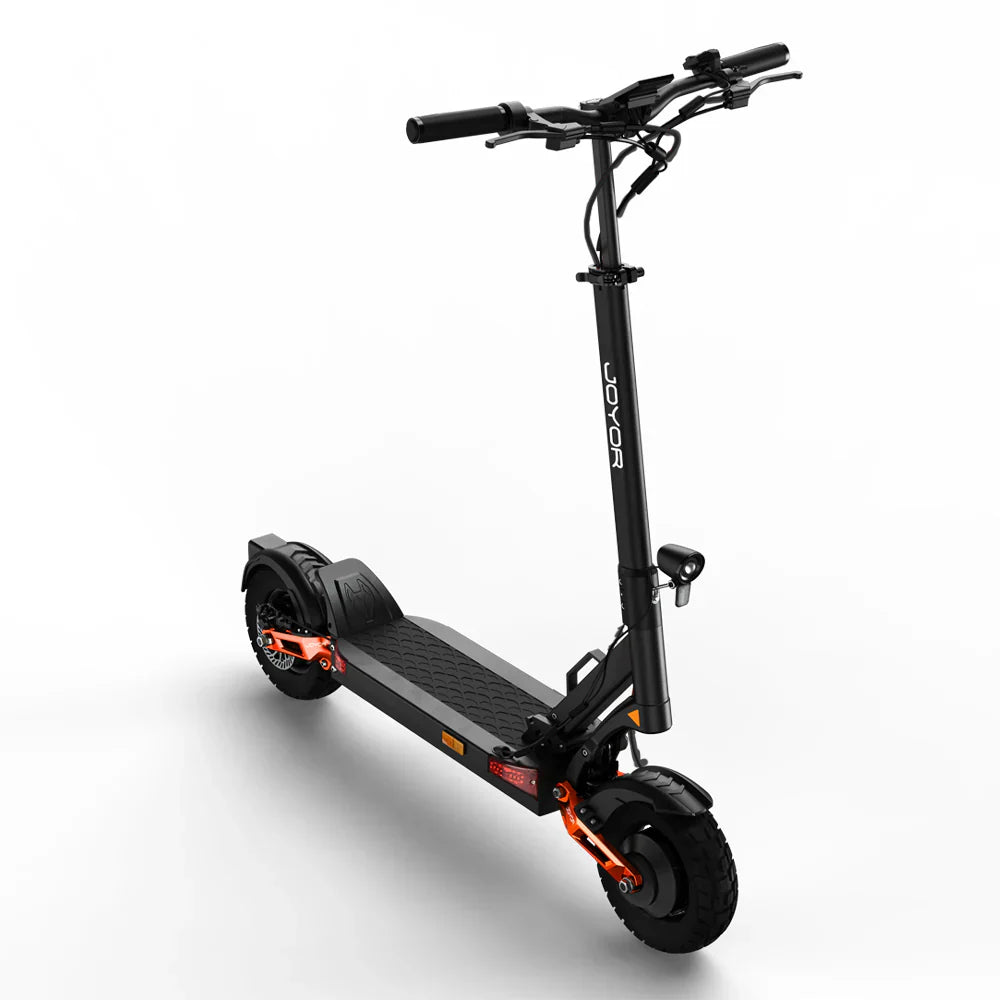

Off-road electric scooter
Joyor T10
Power Meets Precision
Specifications of
Joyor T10
Motor | |
---|---|
Drivetrain | Dual drive |
Nominal Power | 2 x 1.000 W |
Maximum Power | 2 x 1.400 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 3 speed modes |
Maximum Incline Angle | 35% |
Battery | |
Maximum Range | 75 km |
Battery Capacity | 18 Ah |
Battery Voltage | 60 V |
Charging Time | 9-10 hours |
Charger Type | 1x Standard charger |
Suspension | |
Front Suspension | Swingarm with hydraulic spring shock absorption |

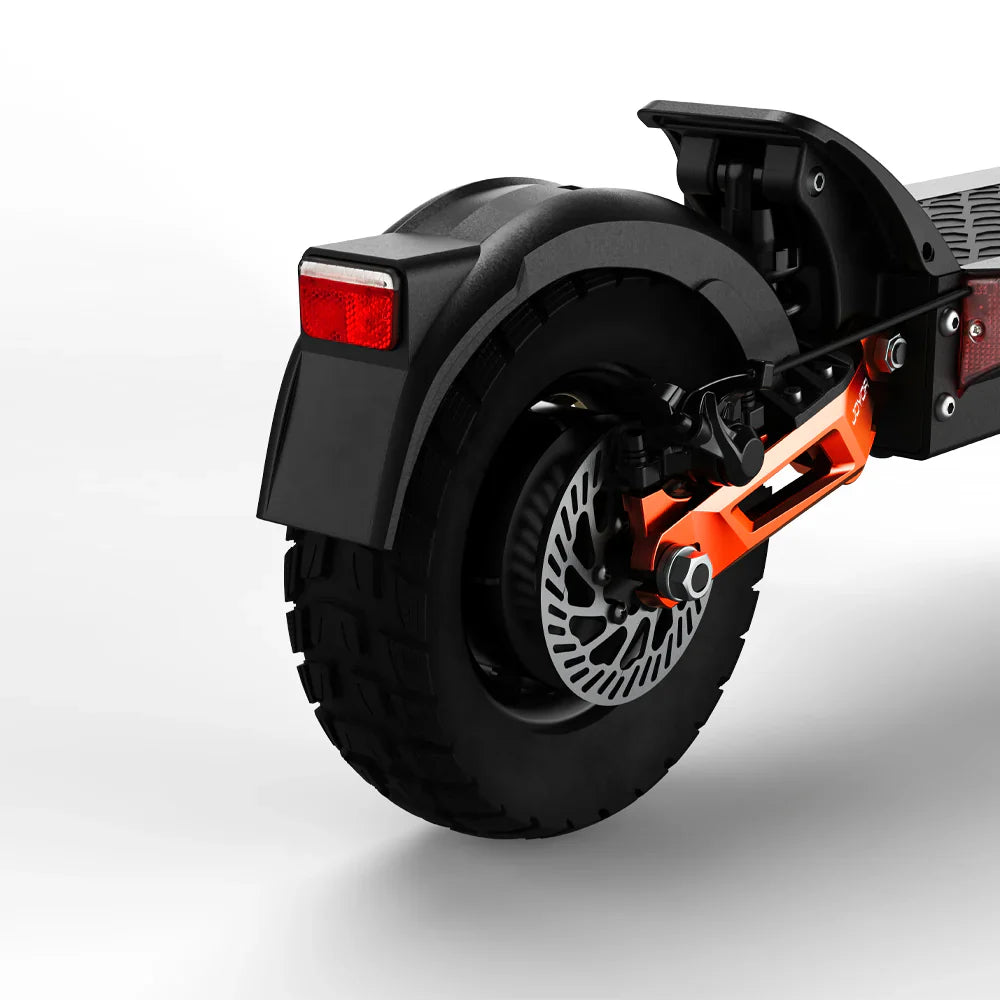

Rear Suspension | Swingarm with hydraulic spring shock absorption |
Brakes | |

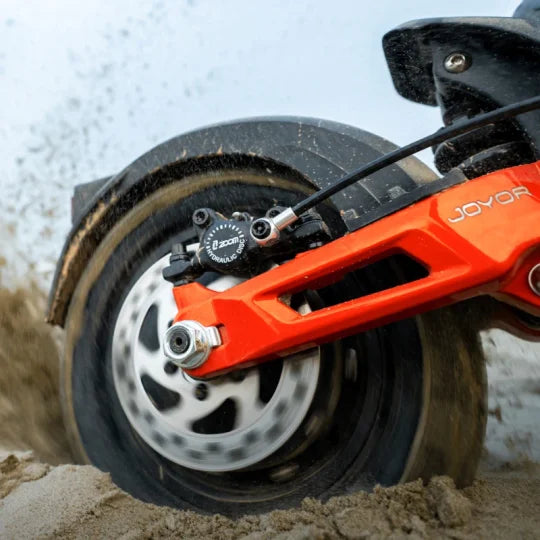

Front Brake | Hydraulic disc brake |
Rear Brake | Hydraulic disc brake |
Tires | |
Tire Type | Pneumatic |
Front Wheel Size | 10" |
Rear Wheel Size | 10" |
Lighting | |
Front light, Brake rear light, Turning / Side light | |
Water Protection | |
IP54 - Protected from dust & light water splashes | |
Dimensions | |
Length | 1230 mm |
Height | 1305 mm |
Width | 630 mm |
Folded | |
Length | 1170 mm |
Height | 540 mm |
Width | 630 mm |
Other | |
Recommended Height | 160-200 cm |
Net Weight | 29.6 kg |
Load Capacity | 120 kg |
Warranty | 1 year |
-
Comfort & Design

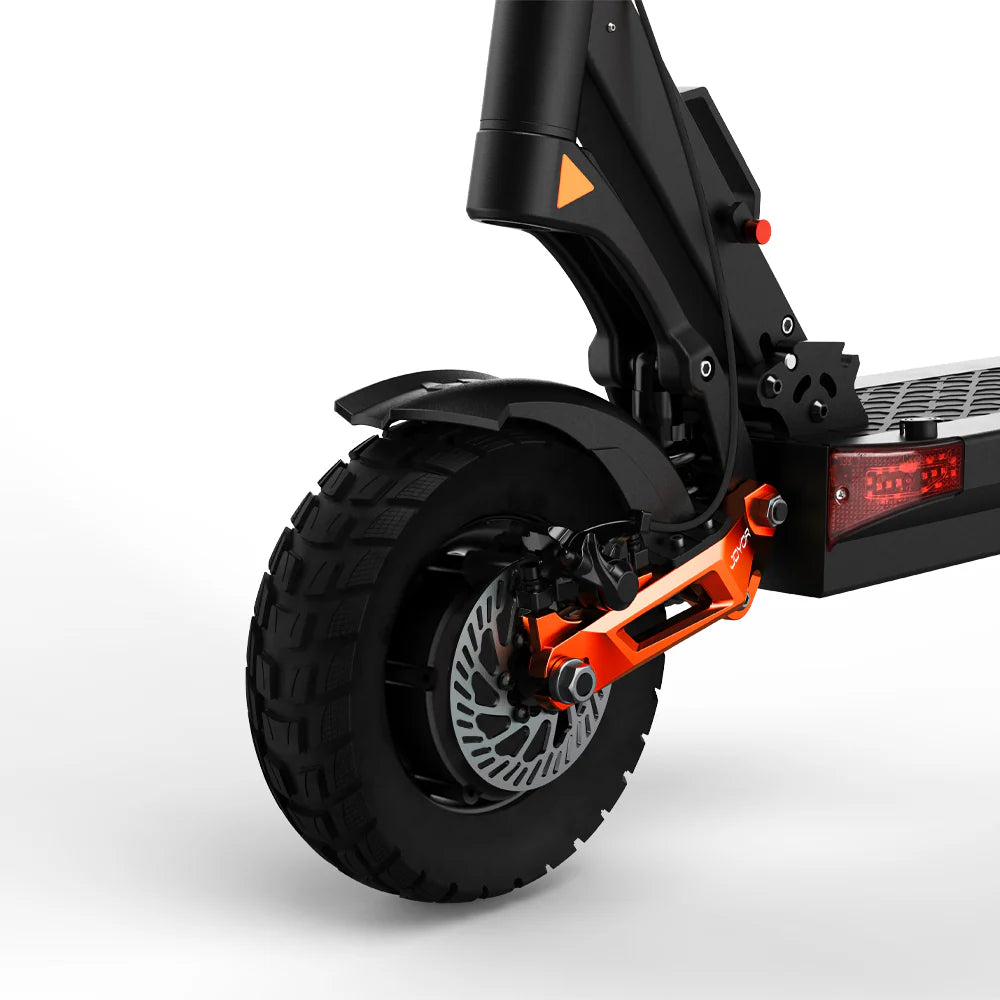

The Joyor T10 is engineered for superior ride comfort and stability across varied terrains. Its dual swingarm suspension system, featuring front and rear hydraulic spring shock absorption, effectively dampens vibrations and impacts. Paired with large 10-inch pneumatic off-road tires, the scooter provides exceptional grip and a smooth ride. The design incorporates a wide footboard and high ground clearance, enhancing ergonomics and control for the rider.
-
Maintenance
To ensure optimal performance and longevity for your Joyor T10 electric scooter, routine maintenance is essential. Regularly inspect the pressure of the 10-inch pneumatic tires and check the integrity of the hydraulic brake system for consistent stopping power. Maintain battery health by adhering to the recommended charging cycles. The scooter's durable aluminum alloy construction minimizes complex upkeep, ensuring your Joyor T10 remains a reliable vehicle for years.
