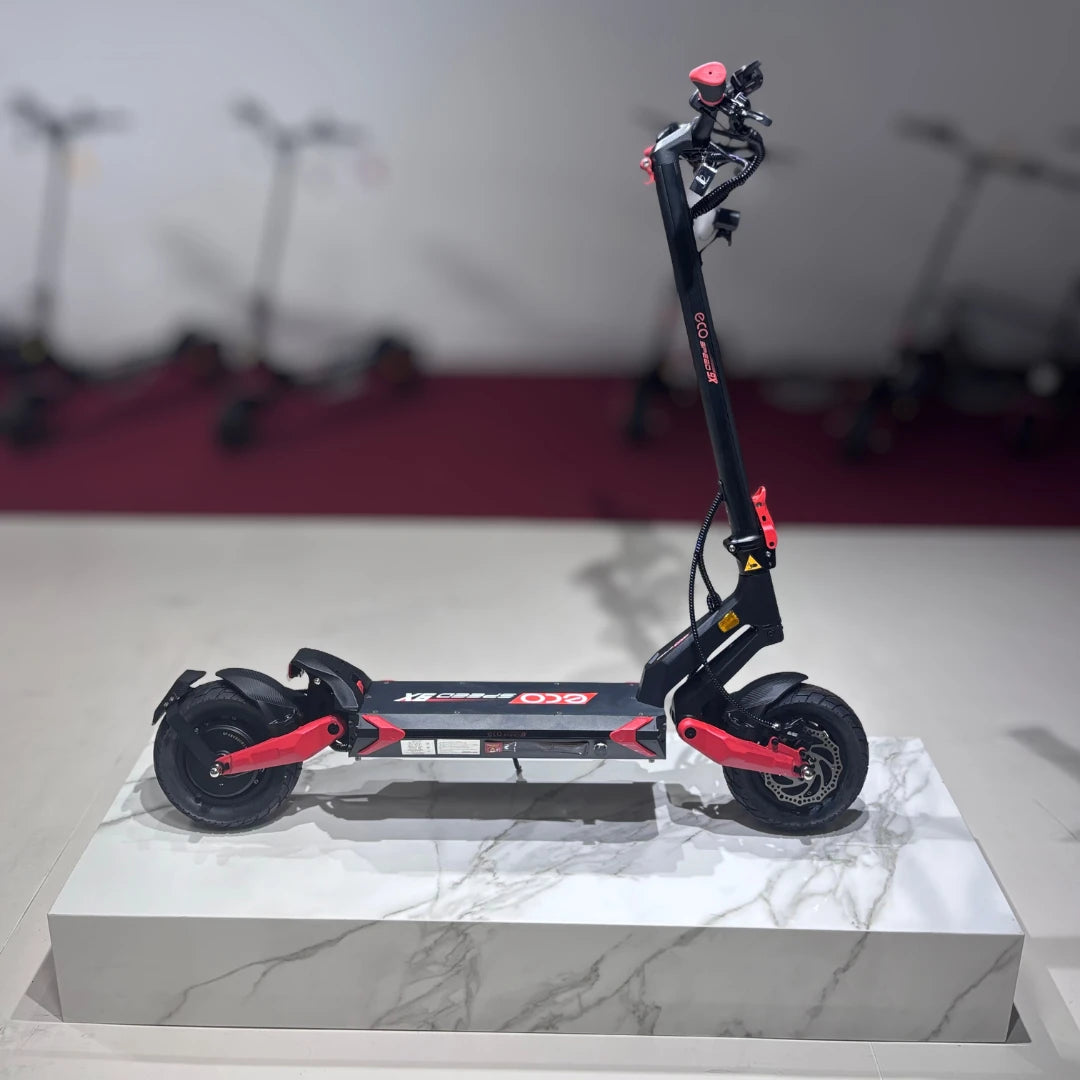

Off-road electric scooter
ECO Speed 9X
Power and range for your ride.
Specifications of
ECO Speed 9X
Motor | |
---|---|
Drivetrain | Dual drive |
Nominal Power | 2 x 800 W |
Maximum Power | 2 x 1.200 W |
Speed | |
Limited Speed | 25 km/h |
Speed Modes | 3 speed modes |
Maximum Incline Angle | 20° |
Battery | |
Maximum Range | 60-70 km |
Battery Capacity | 23.4 Ah |
Battery Voltage | 48 V |
Charging Time | 4-5 hours (with 5A fast charger) |
Charger Type | 1x Fast charger 5A |
Suspension | |

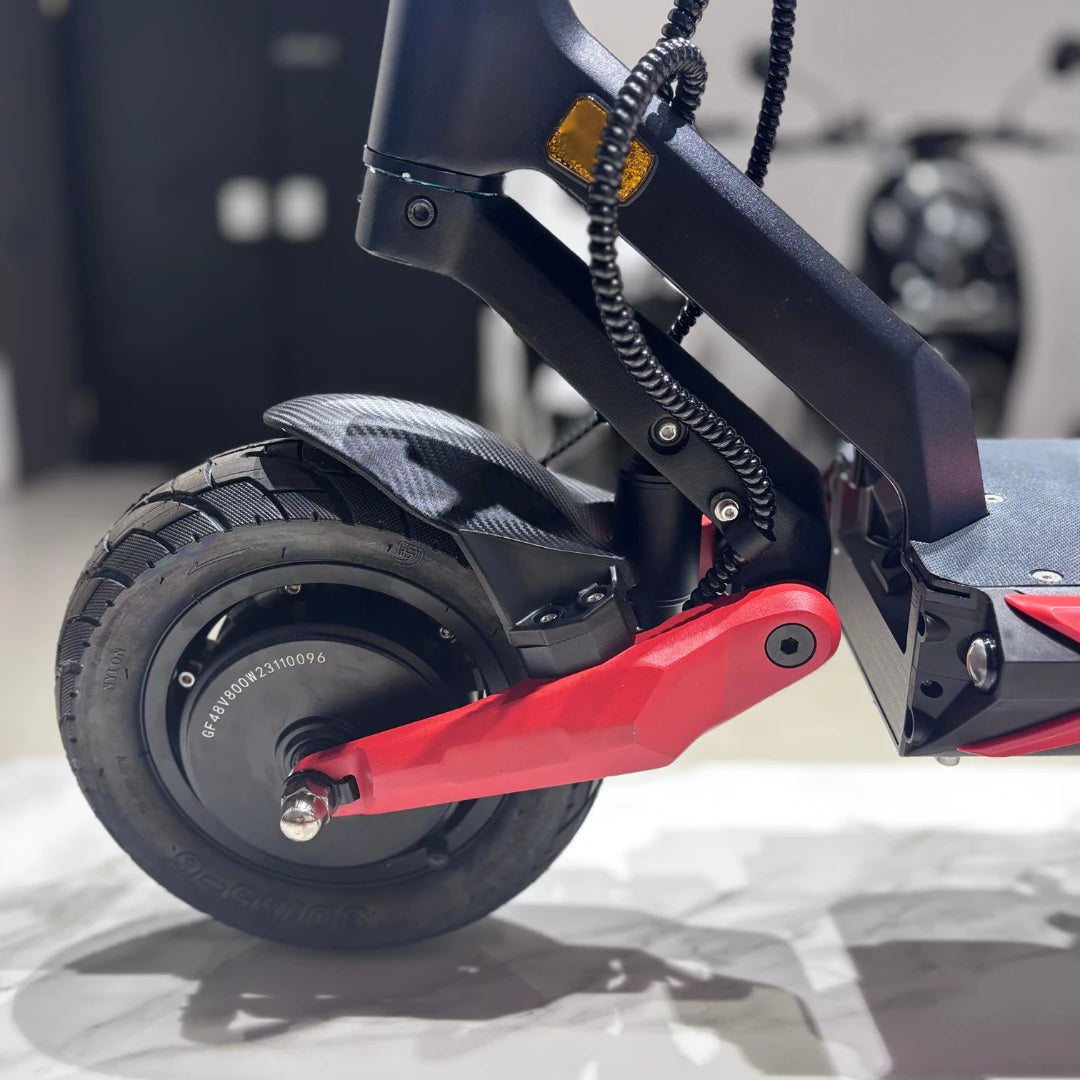

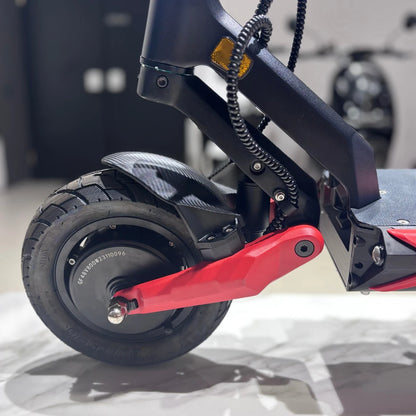

Front Suspension | Spring |

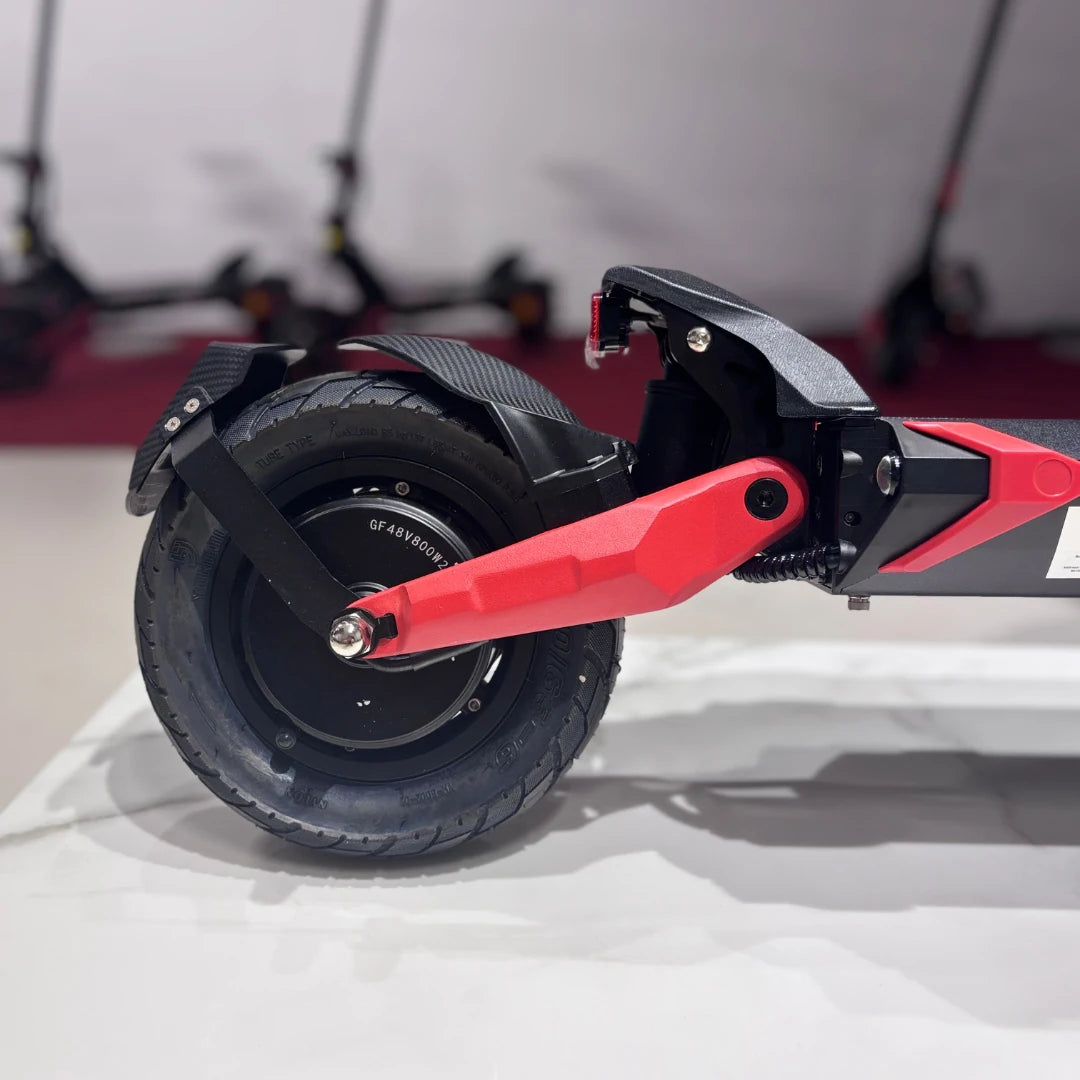

Rear Suspension | Spring |
Brakes | |

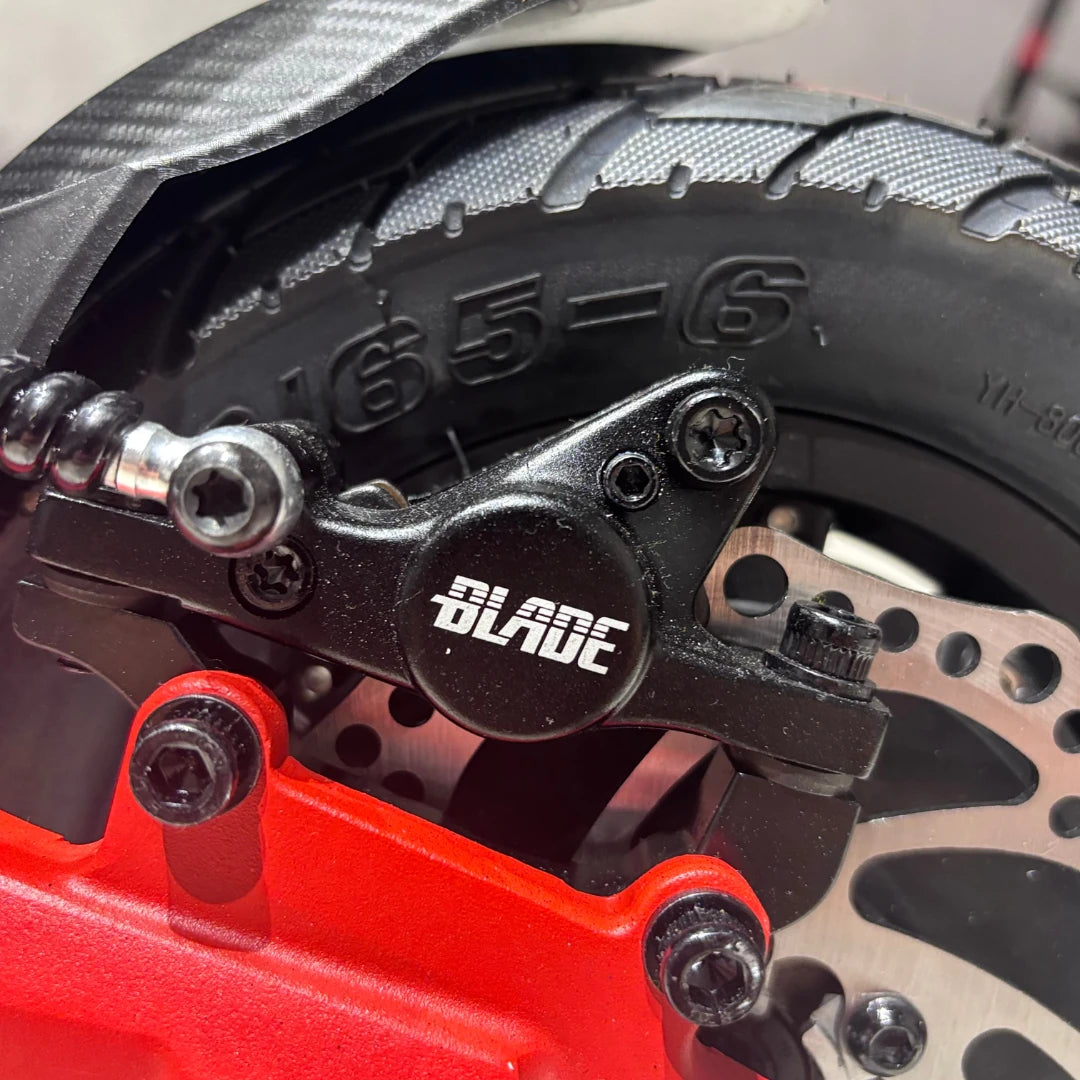

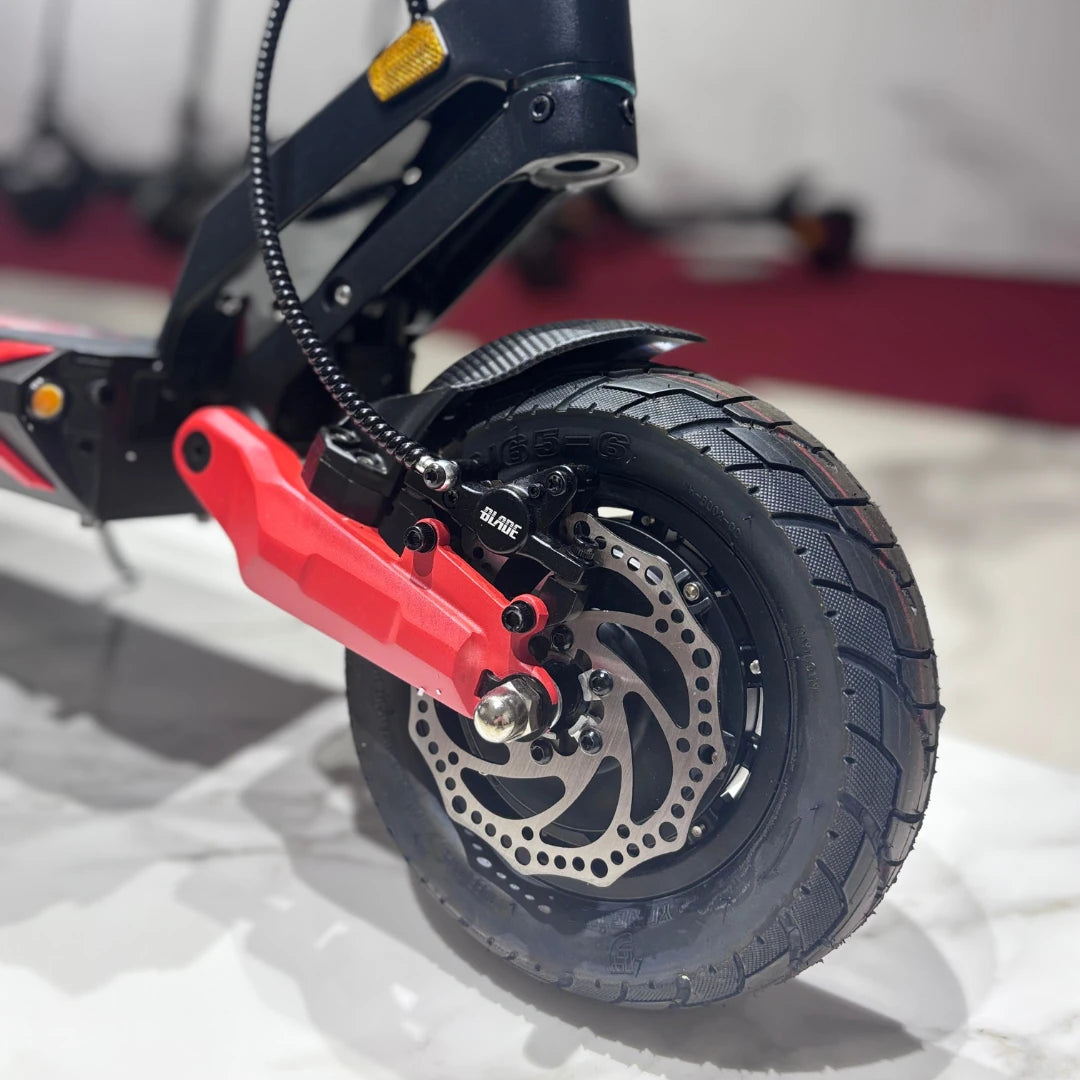

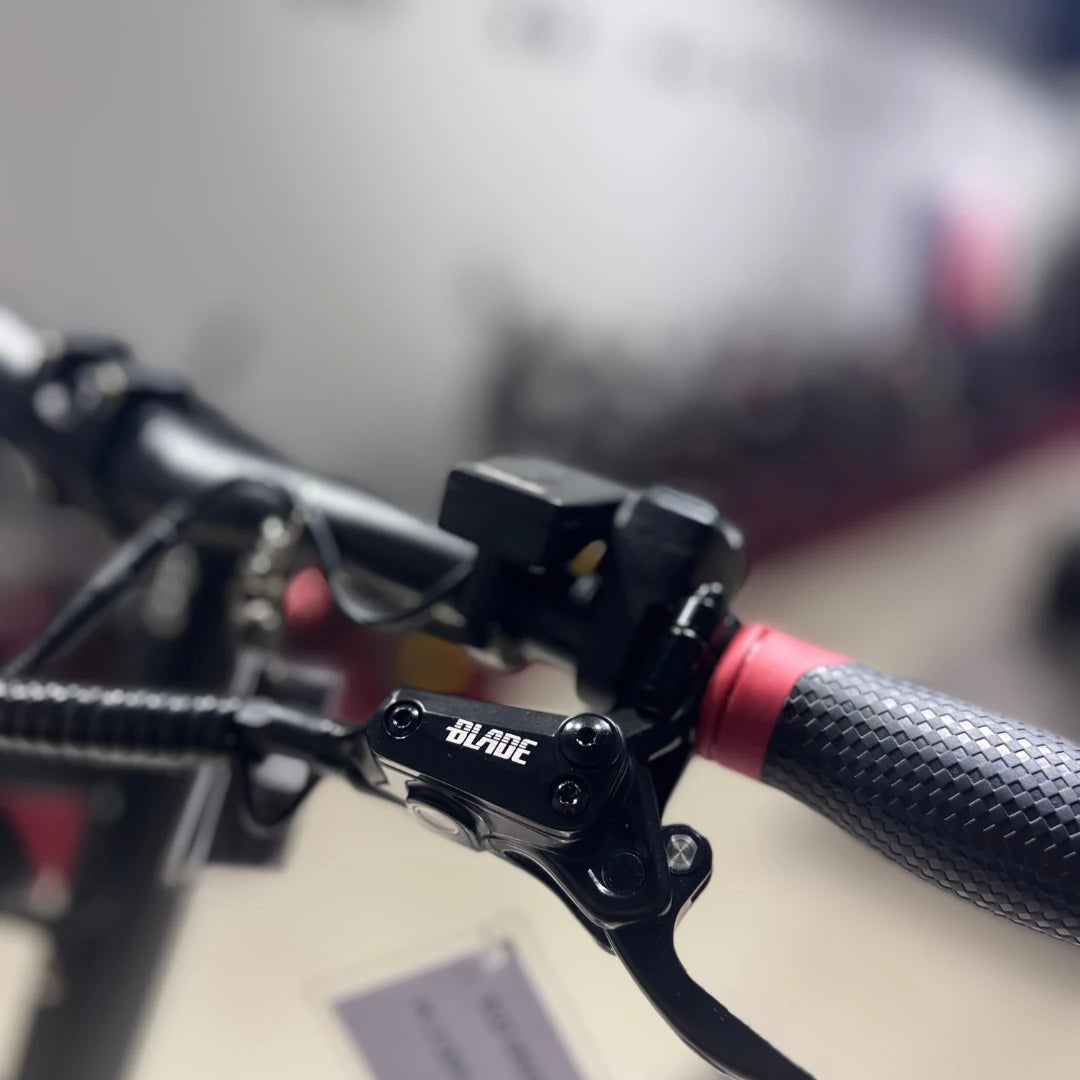

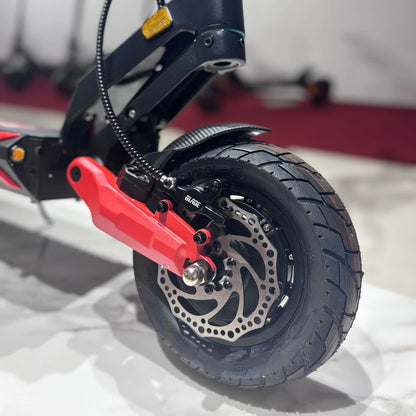

Front Brake | Disc hydraulic 140 mm |
Rear Brake | Disc hydraulic 140 mm |
Tires | |
Tire Type | Pneumatic |
Front Wheel Size | 9" |
Rear Wheel Size | 9" |
Lighting | |

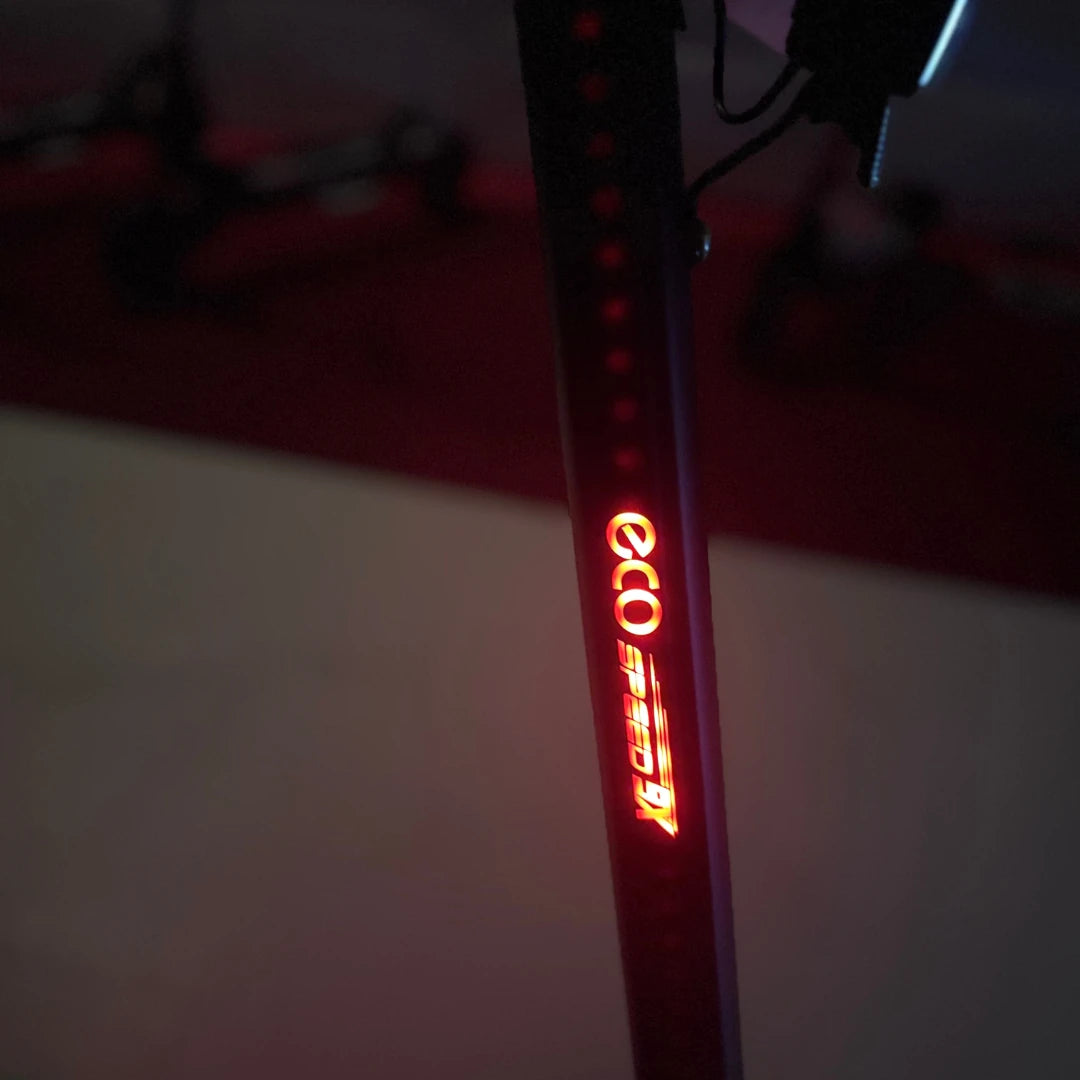

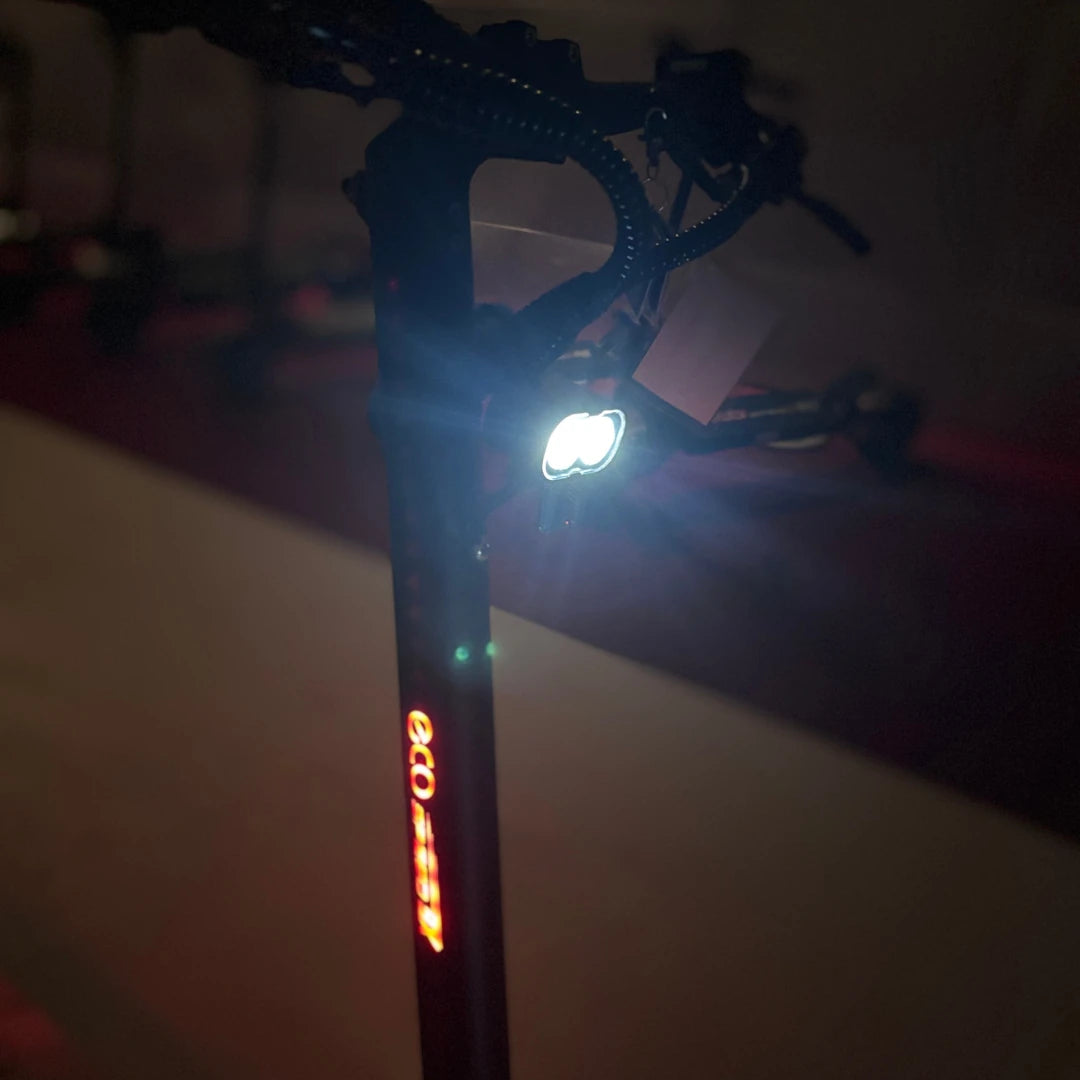

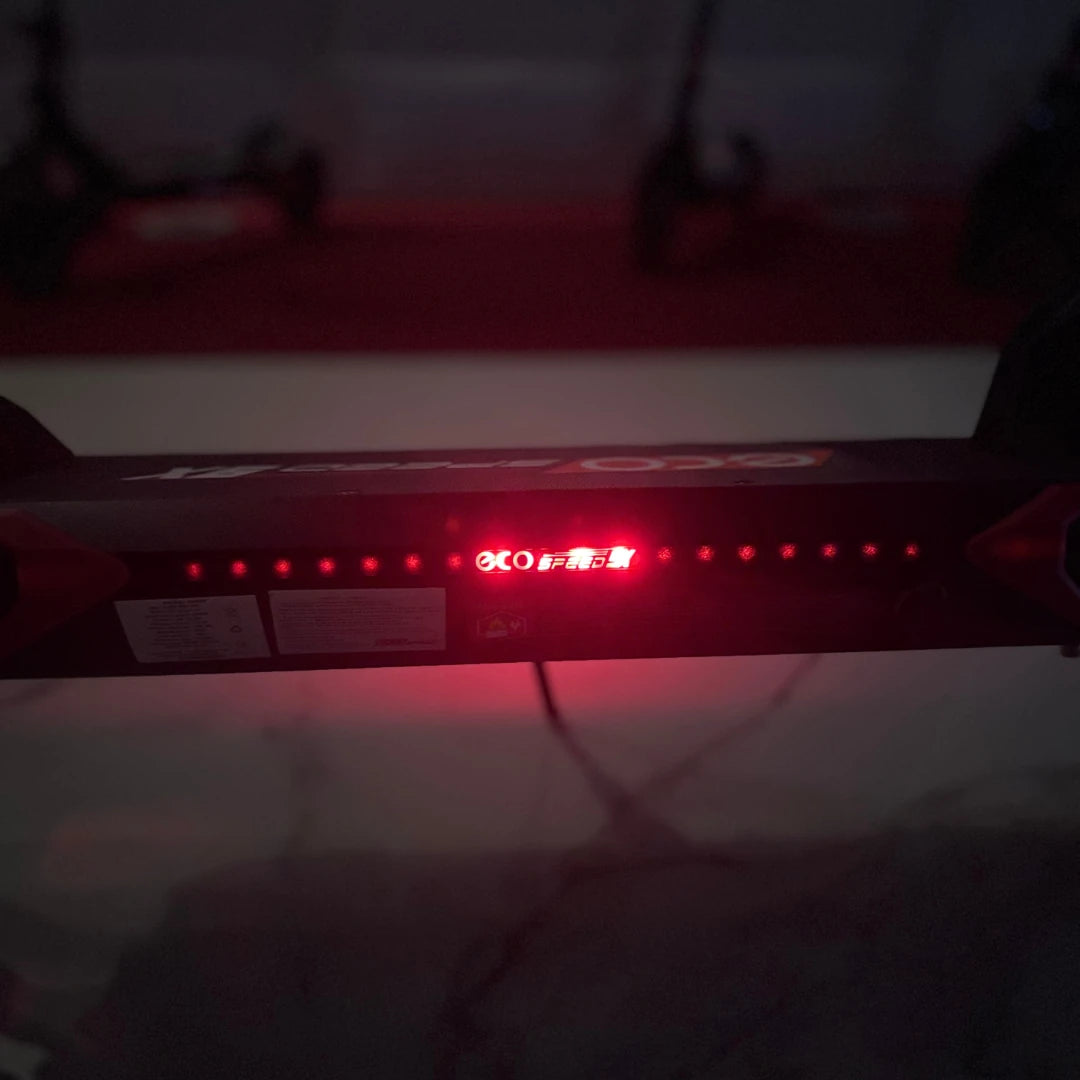

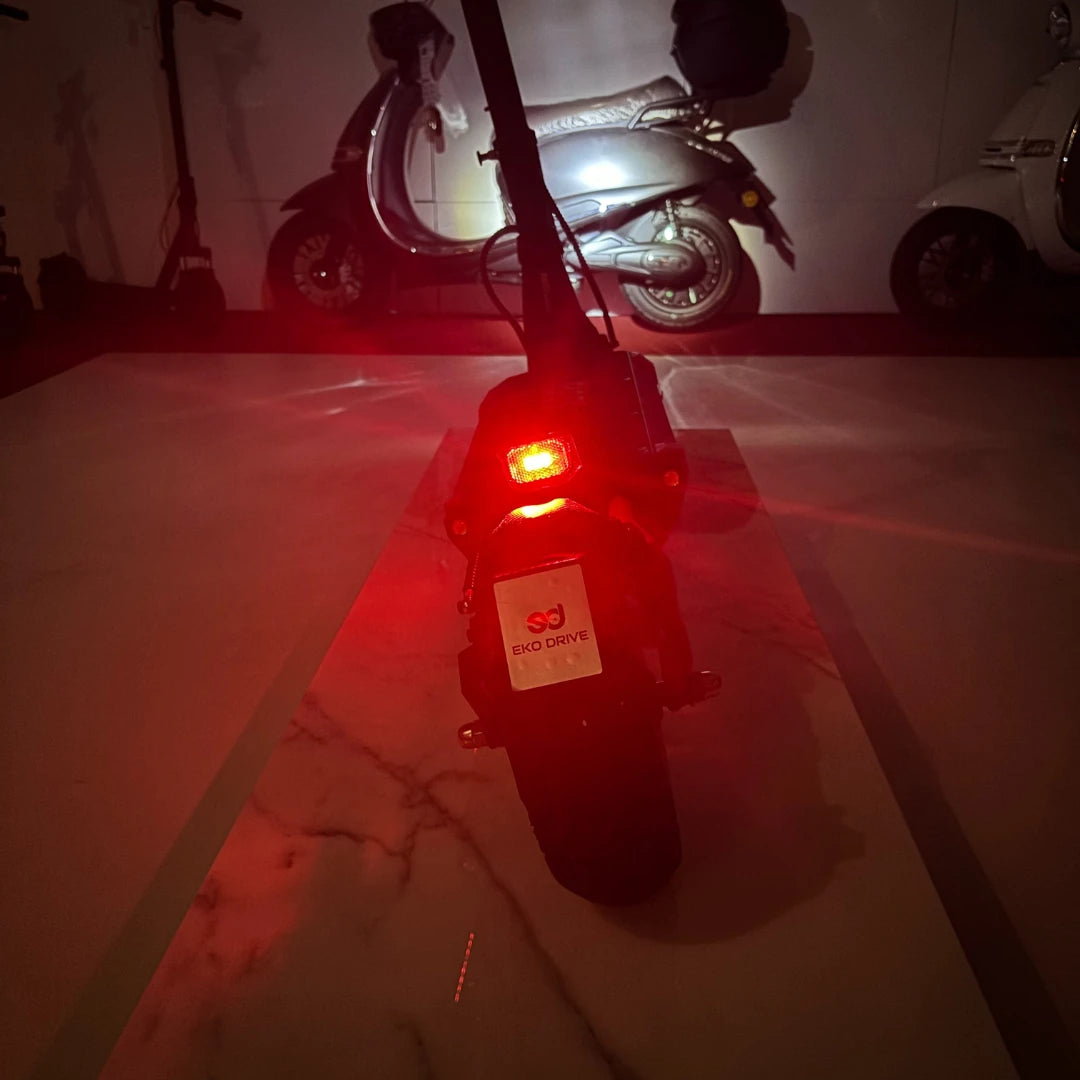

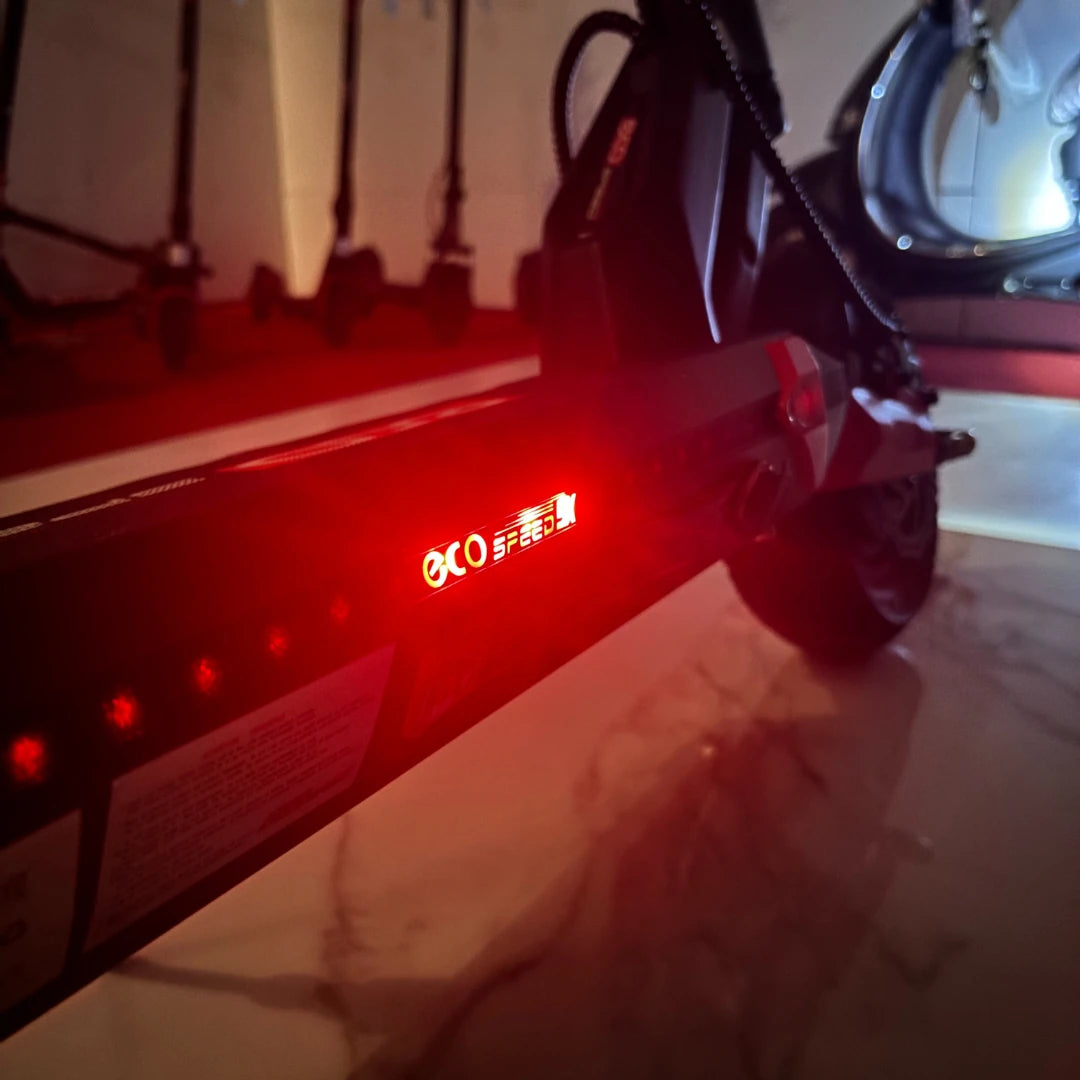

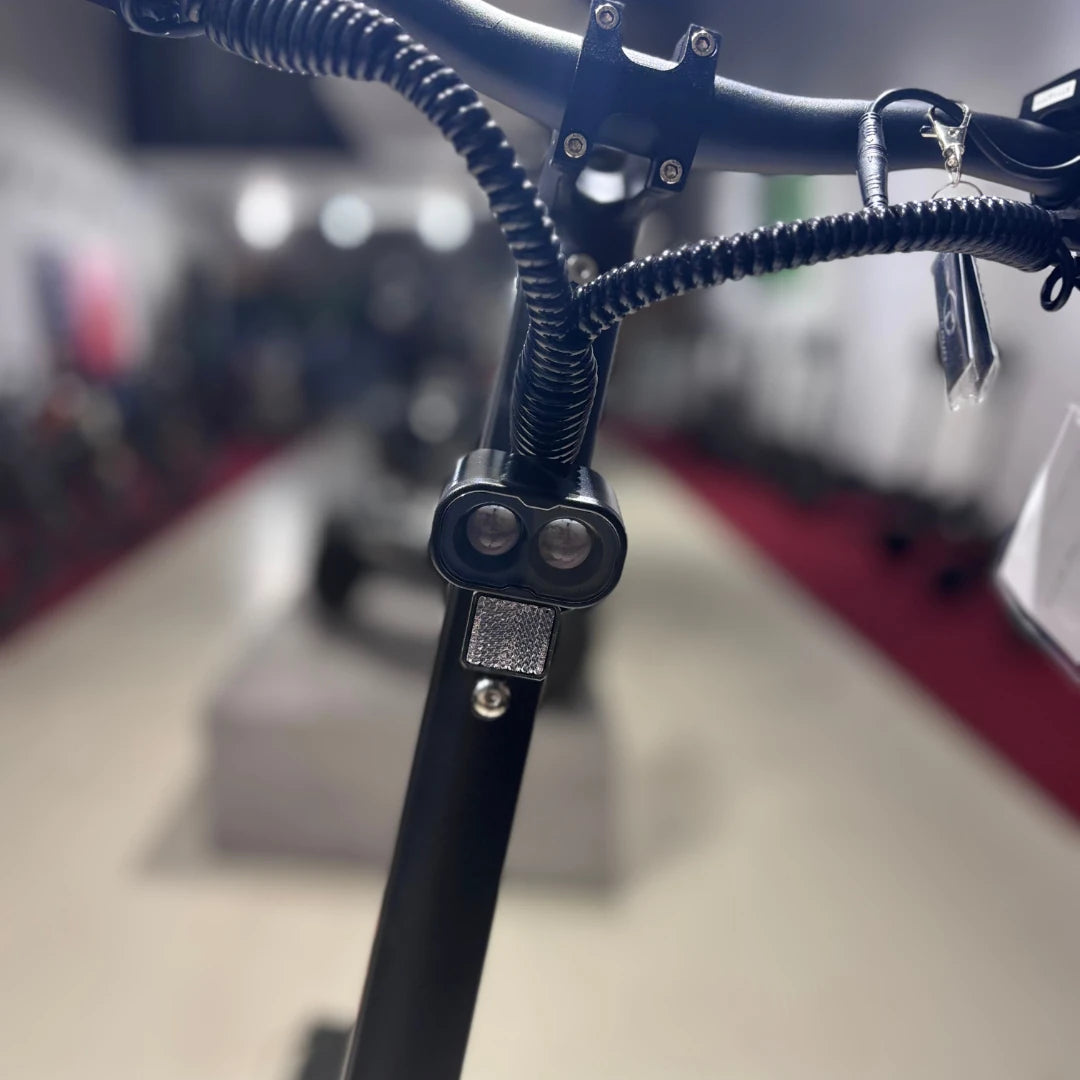

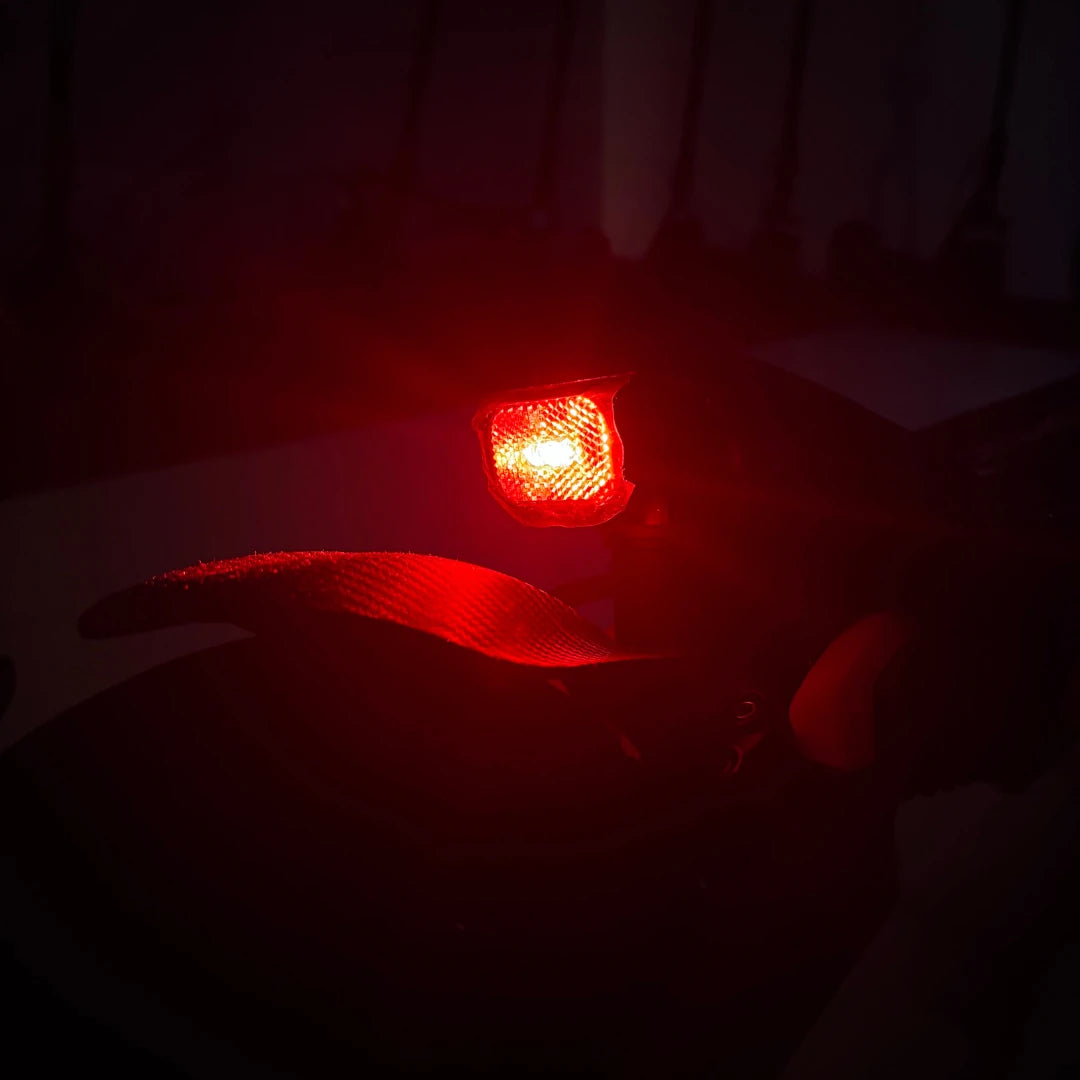

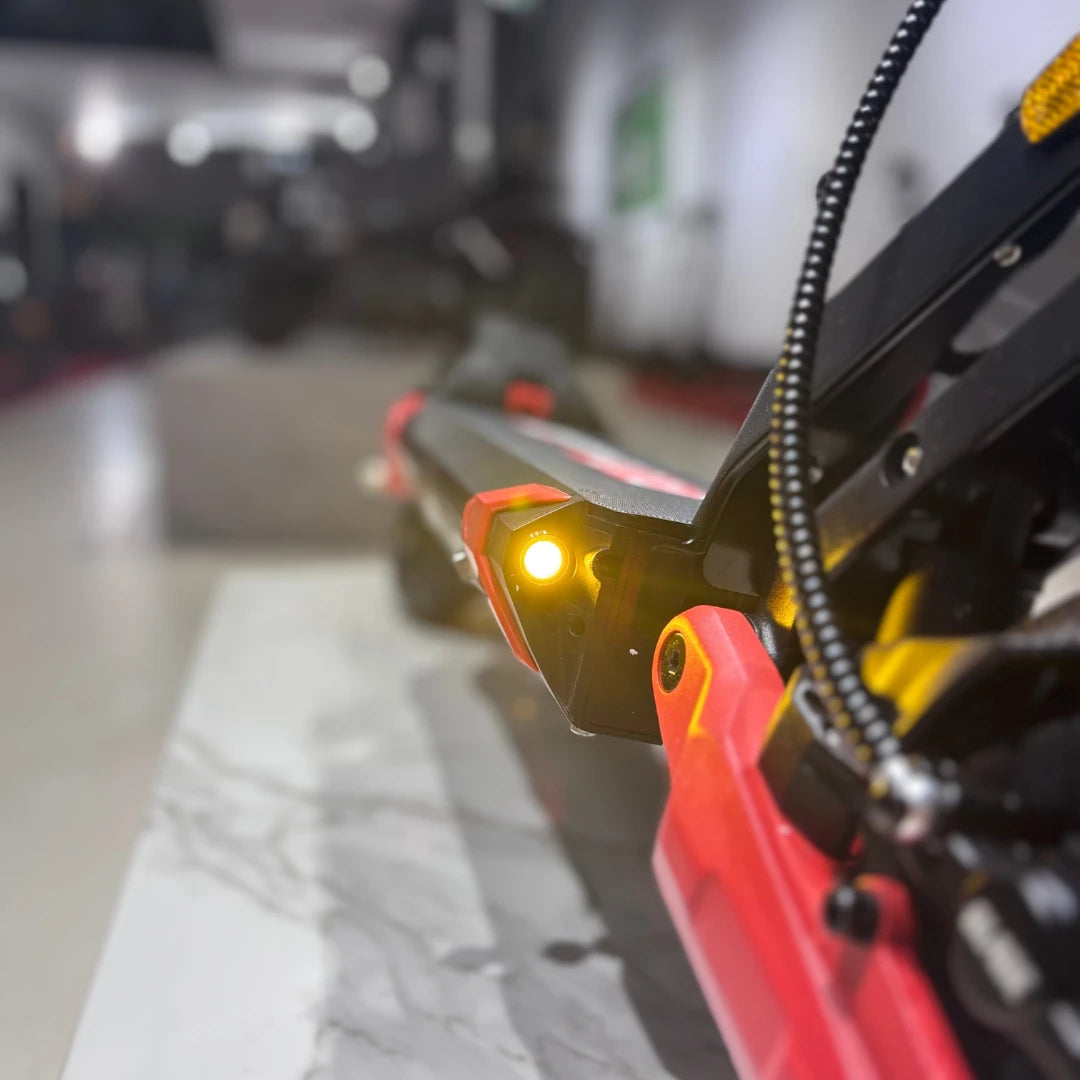

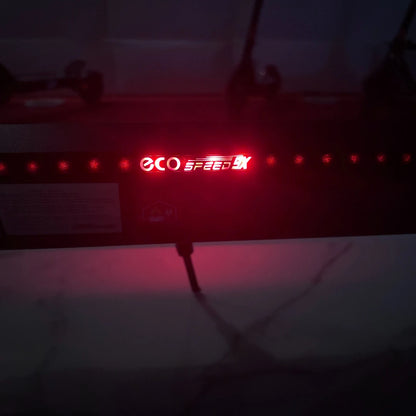

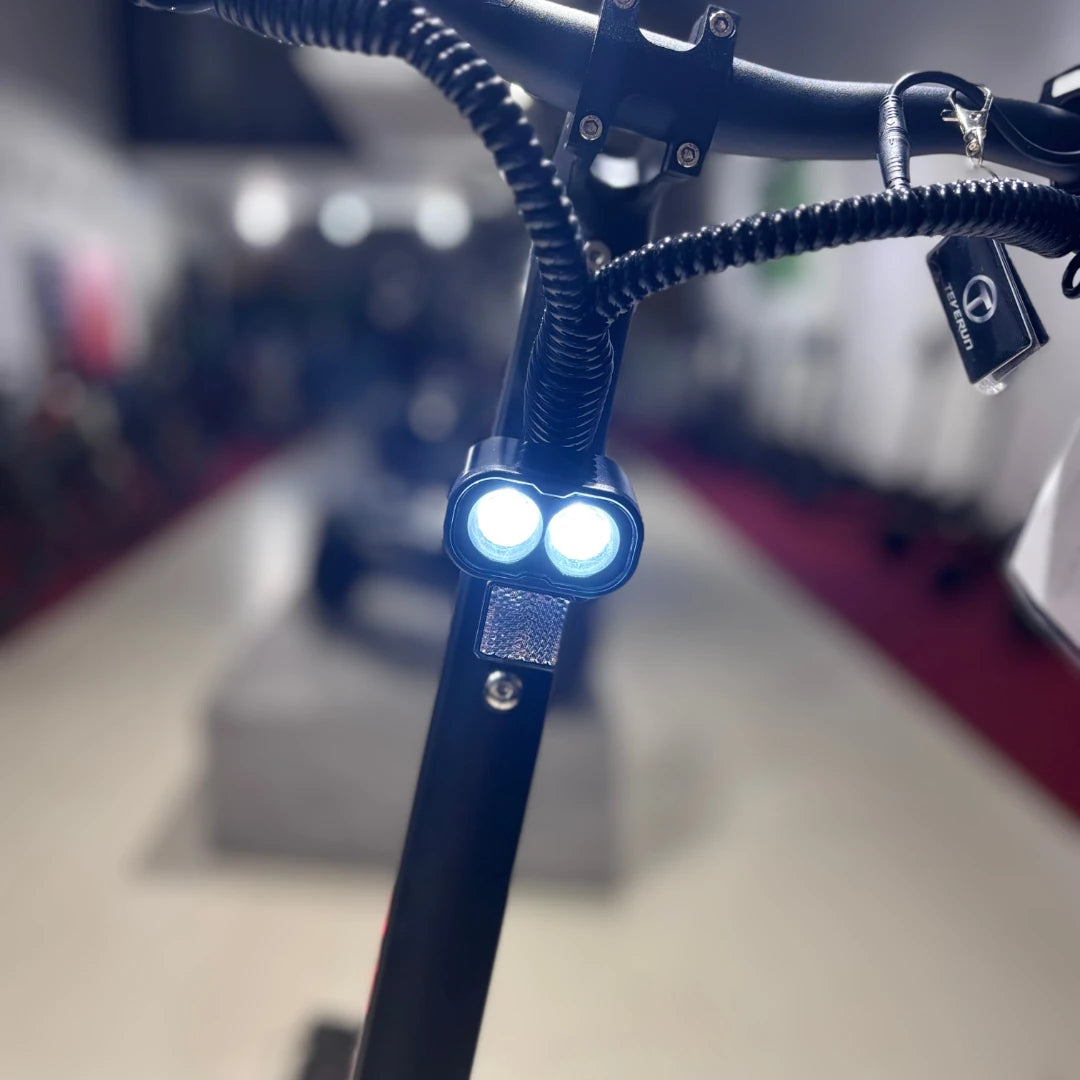

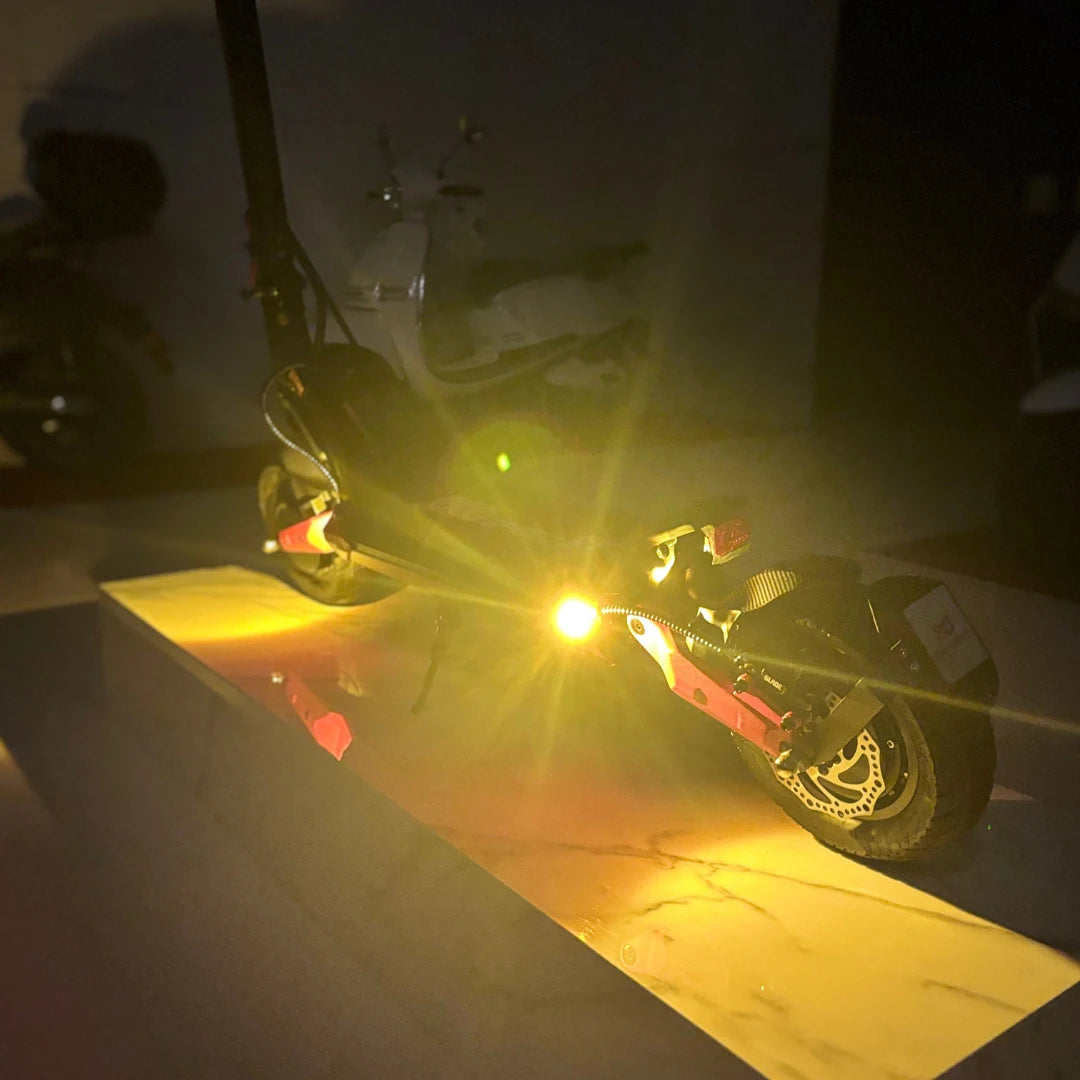

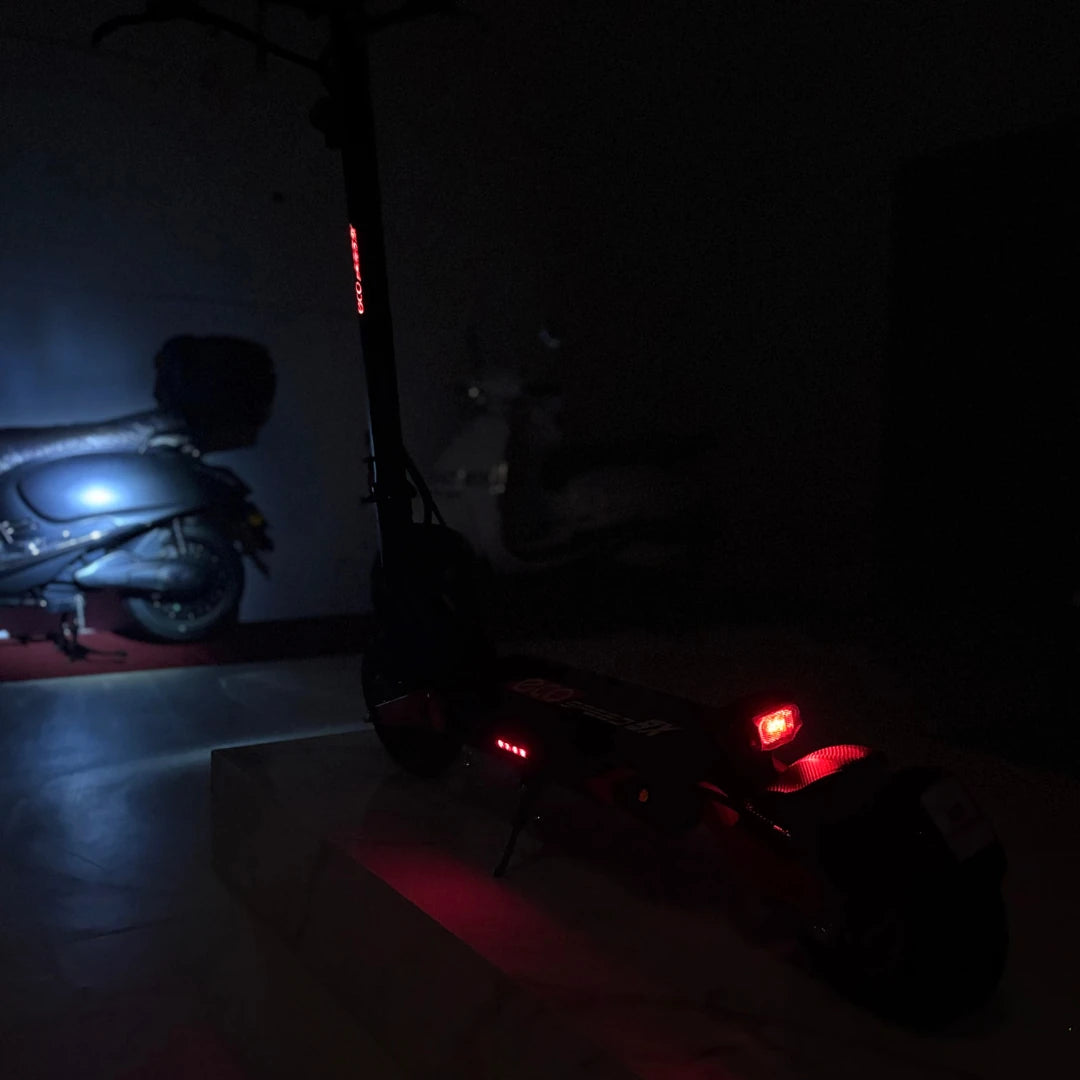

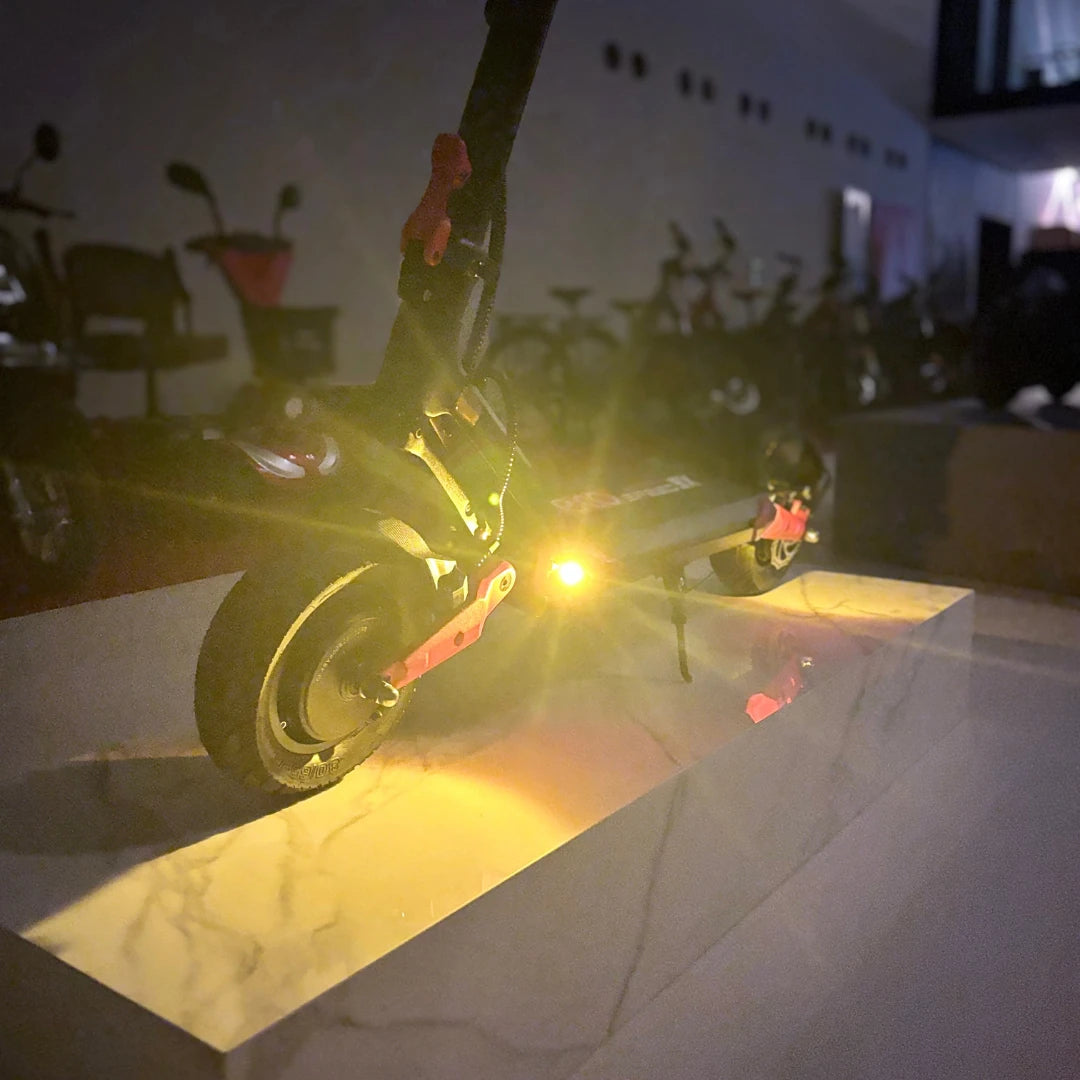

Front, rear lights, side LED stripes. | |
Water Protection | |
IP54 - Protected from dust & light water splashes | |
Dimensions | |
Length | 122 cm |
Height | 124 cm |
Width | 66 cm |
Folded | |
Length | 122 cm |
Height | 57 cm |
Width | 66 cm |
Other | |
Recommended Height | 160-200 cm |
Net Weight | 25 kg |
Load Capacity | 120 kg |
Warranty | 1 year |
-
Comfort & Design

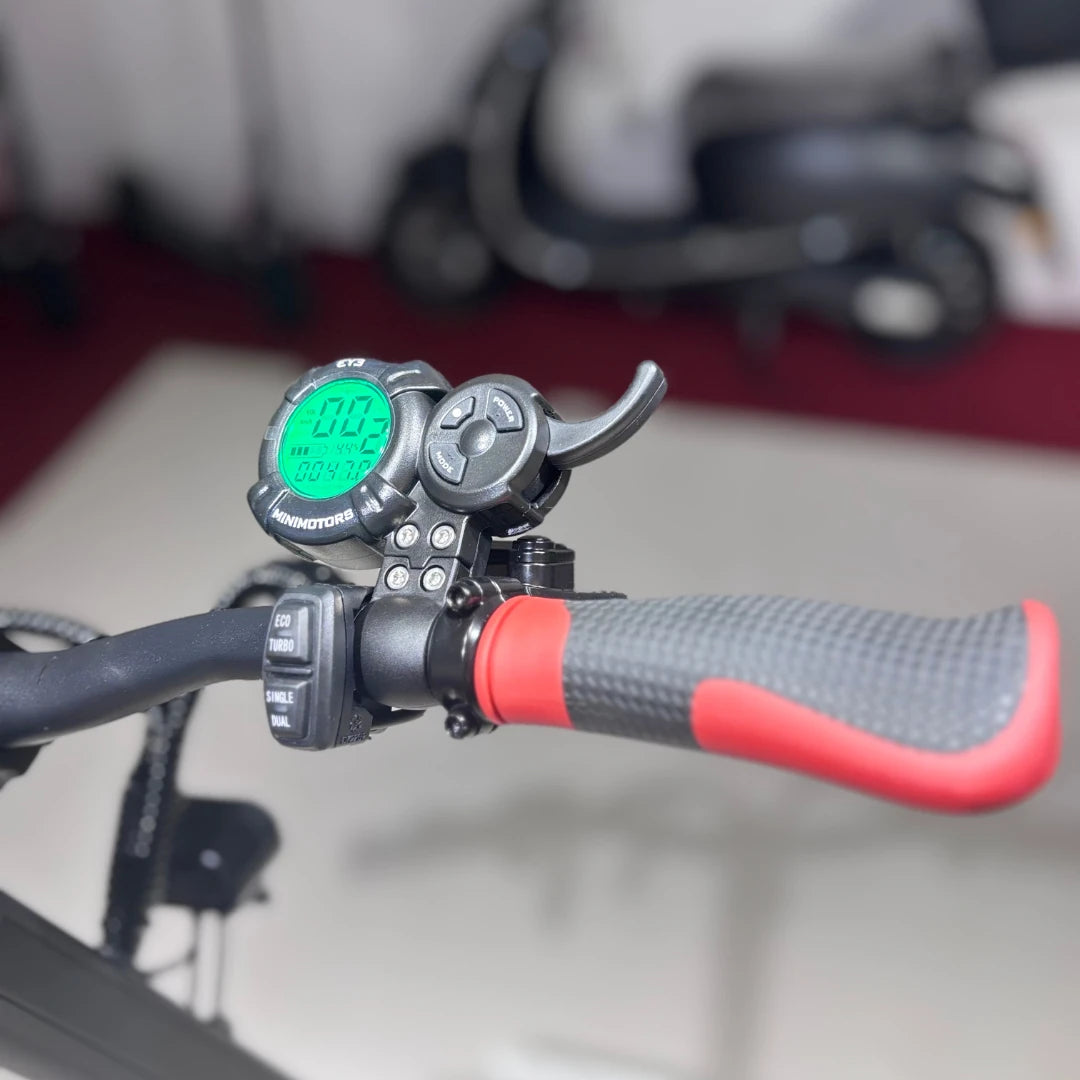

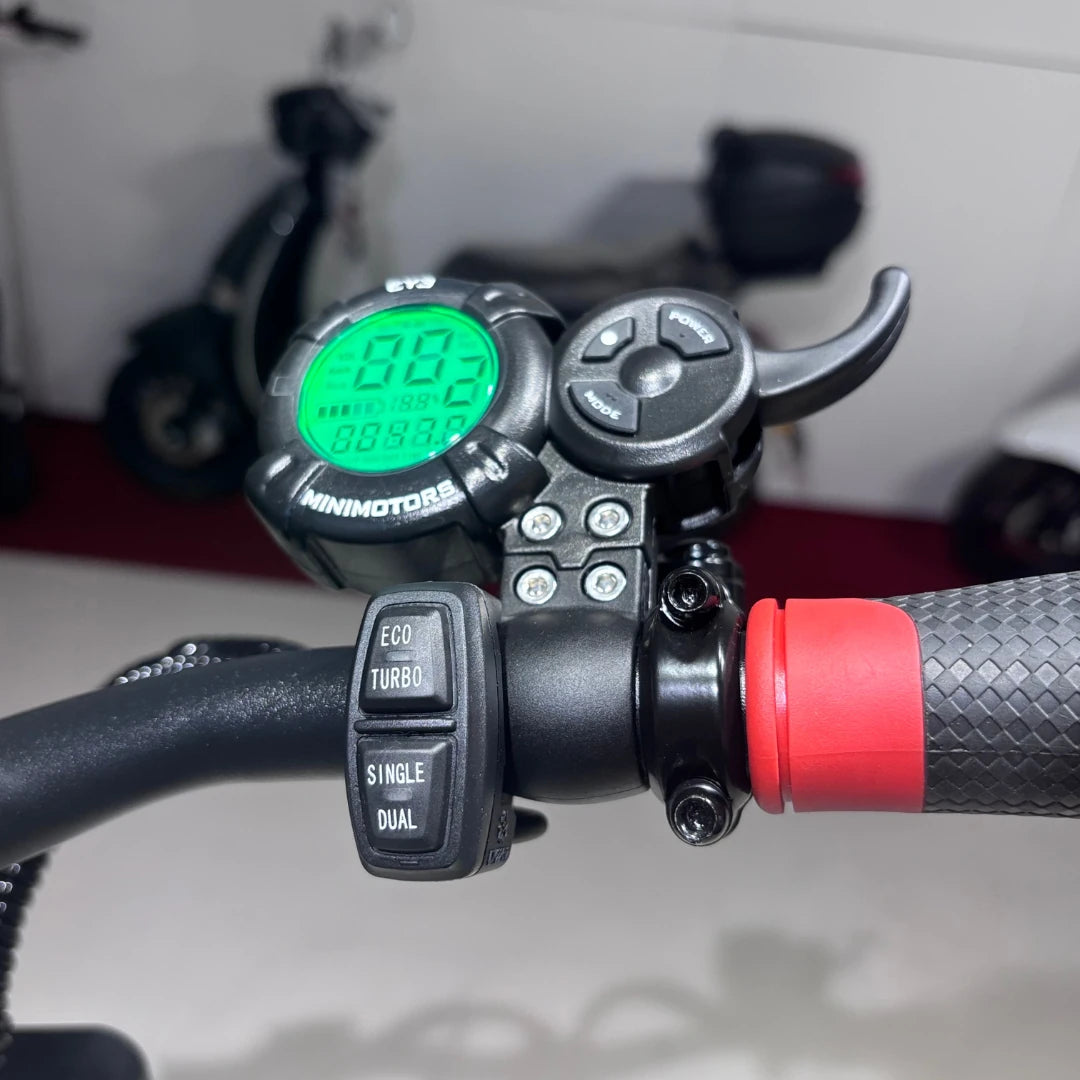

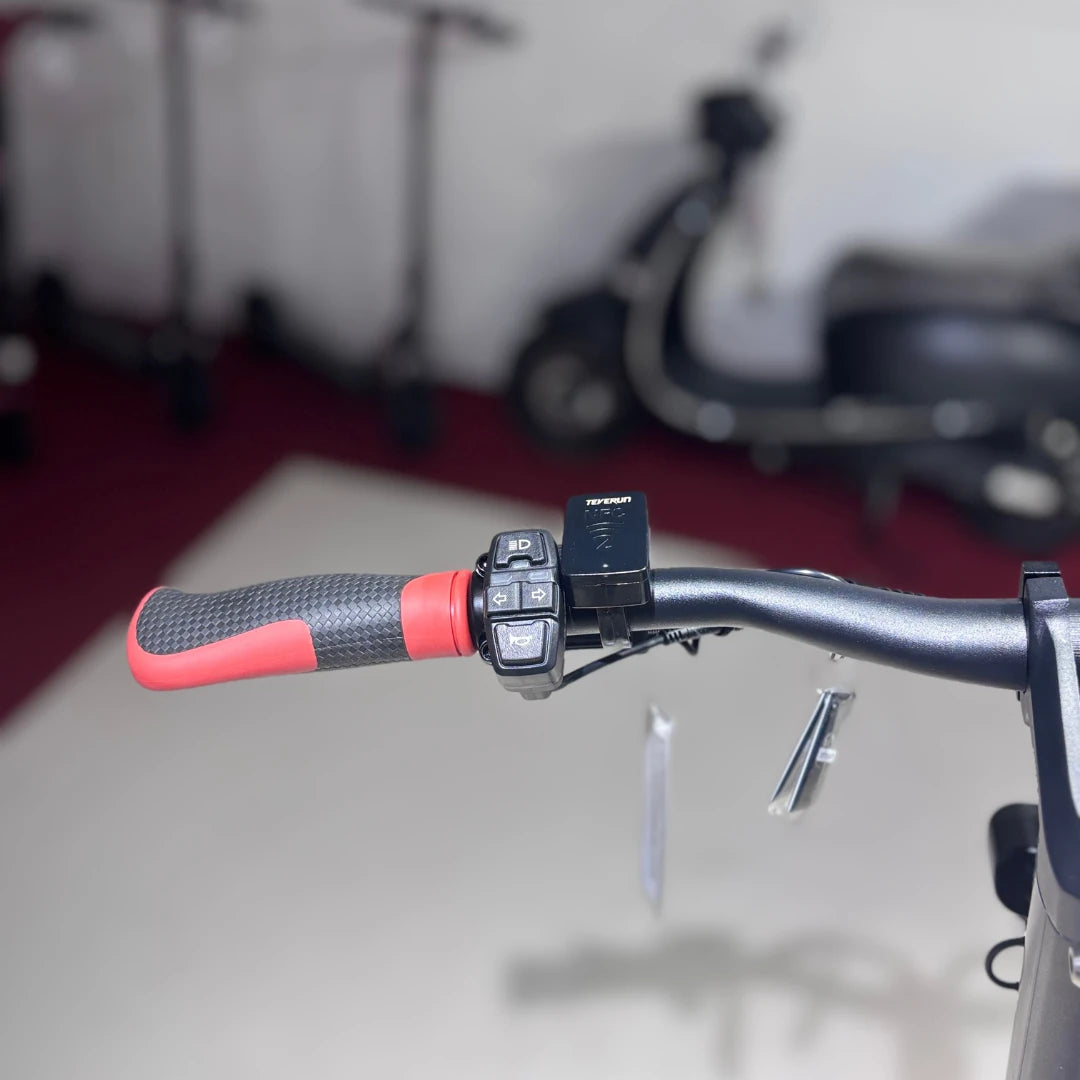

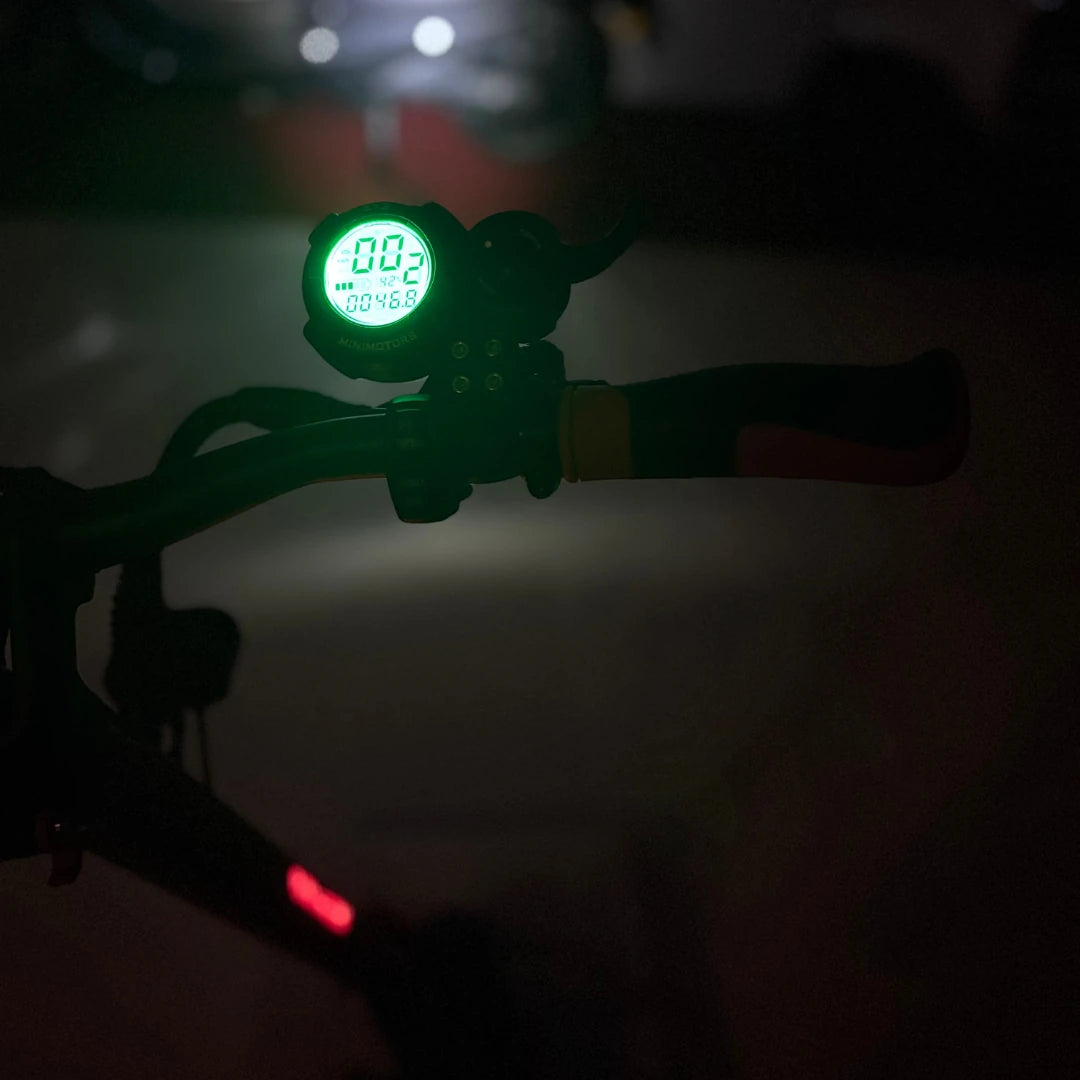

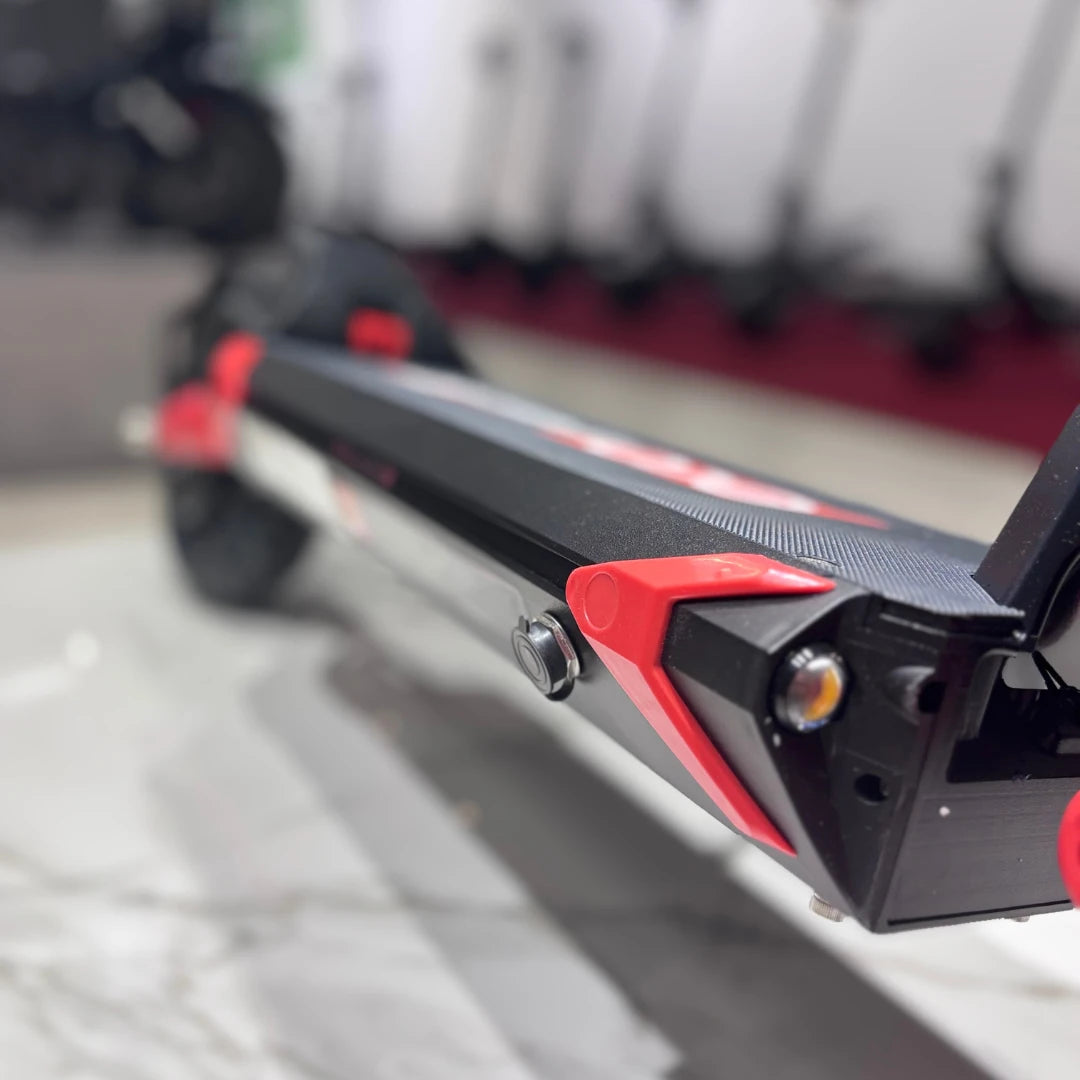

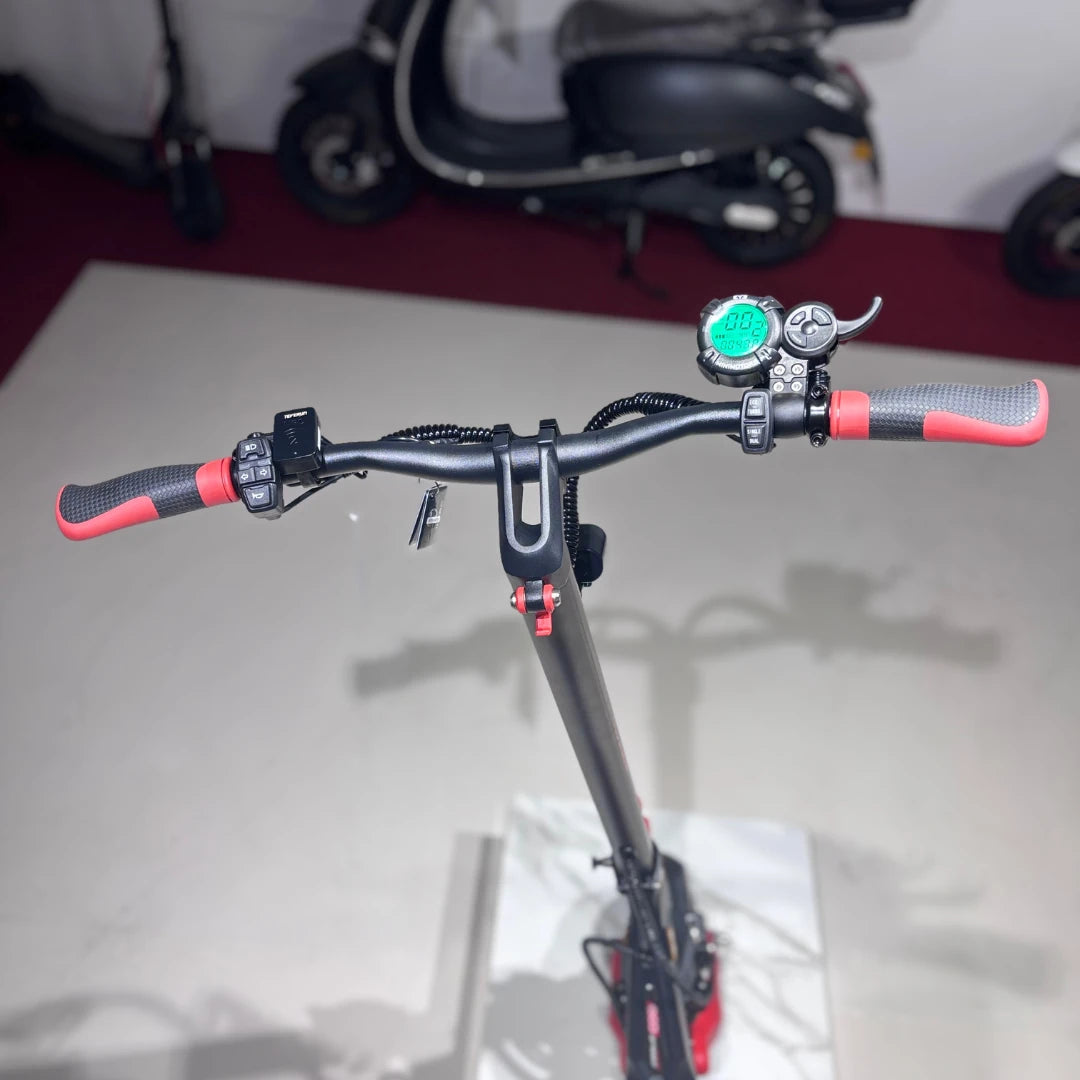

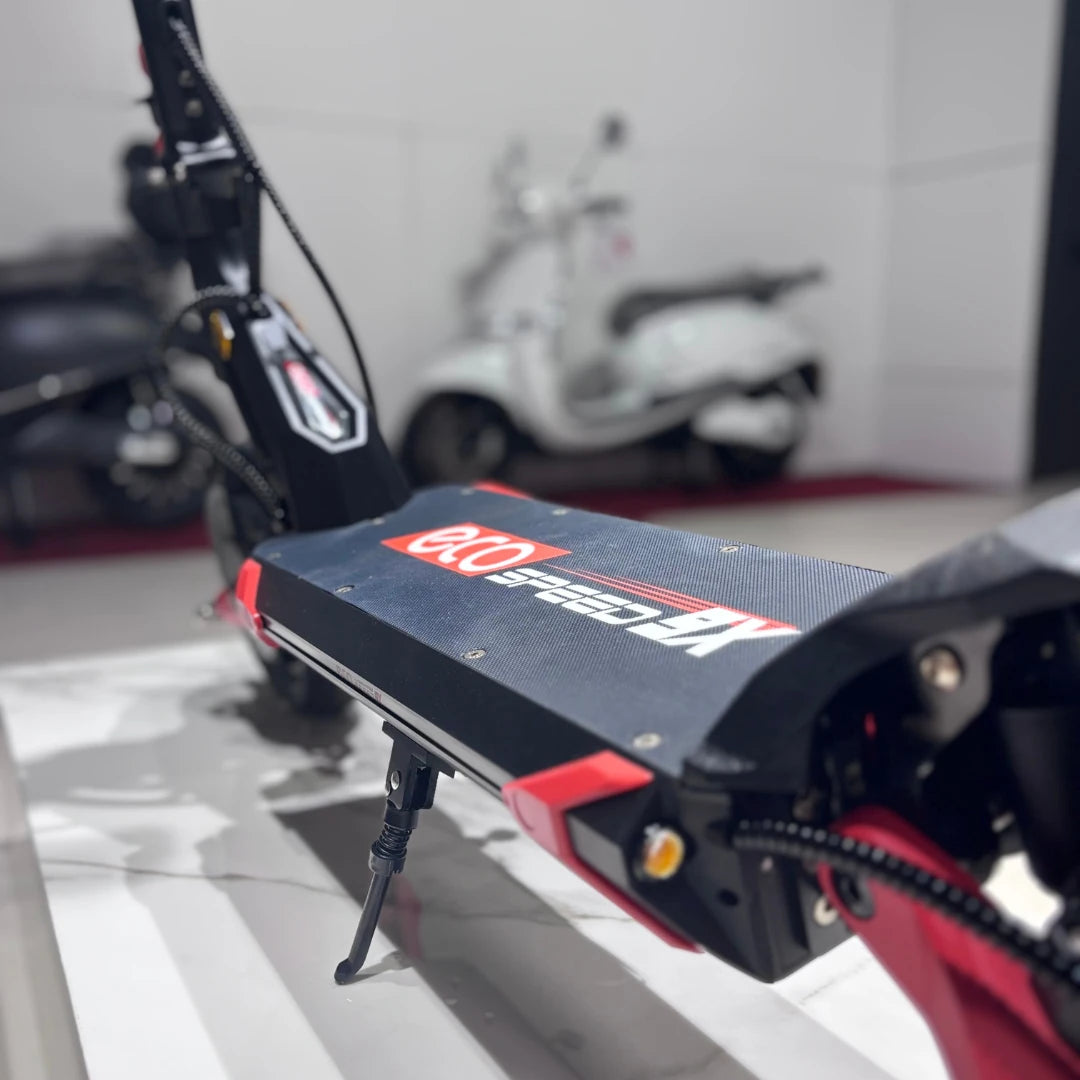

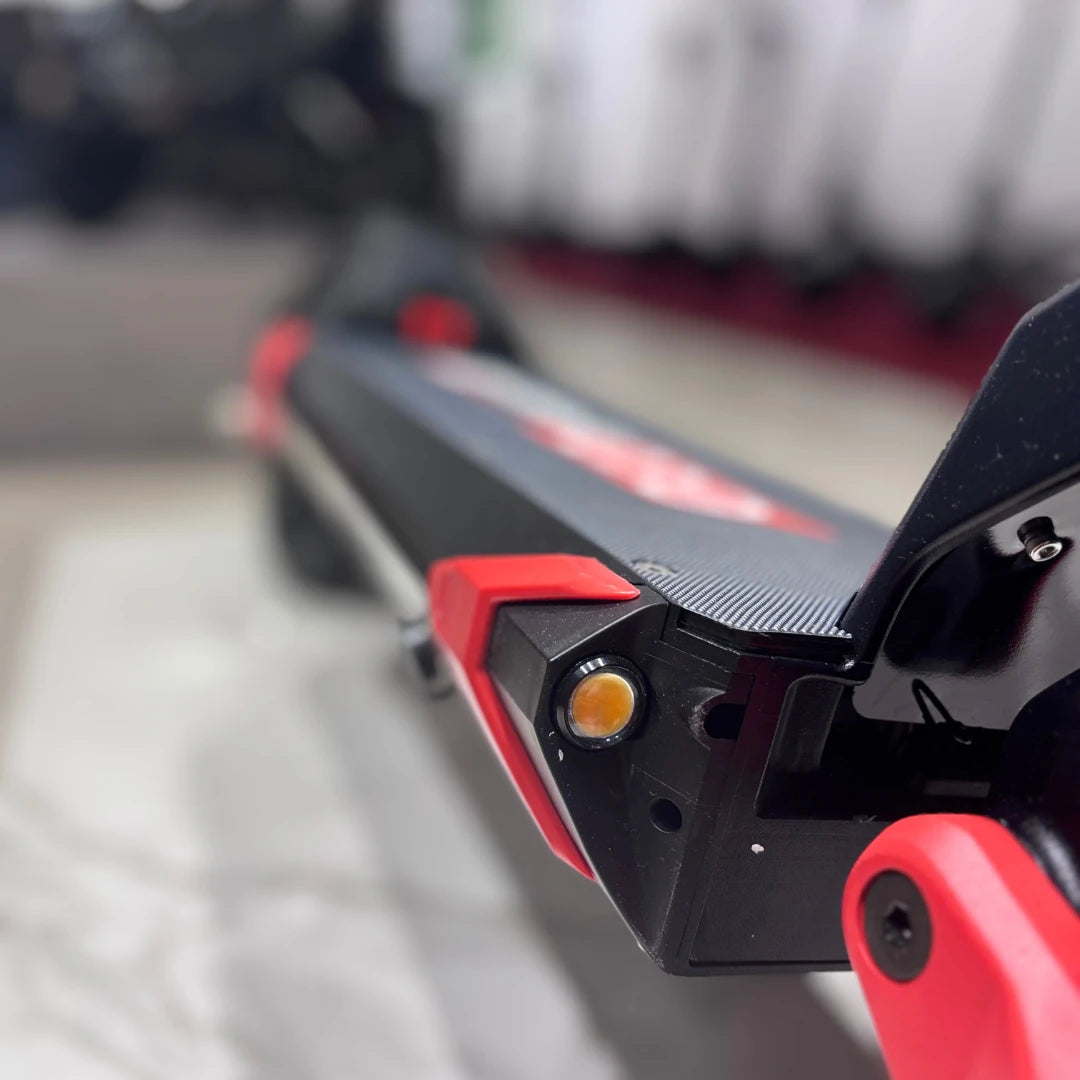

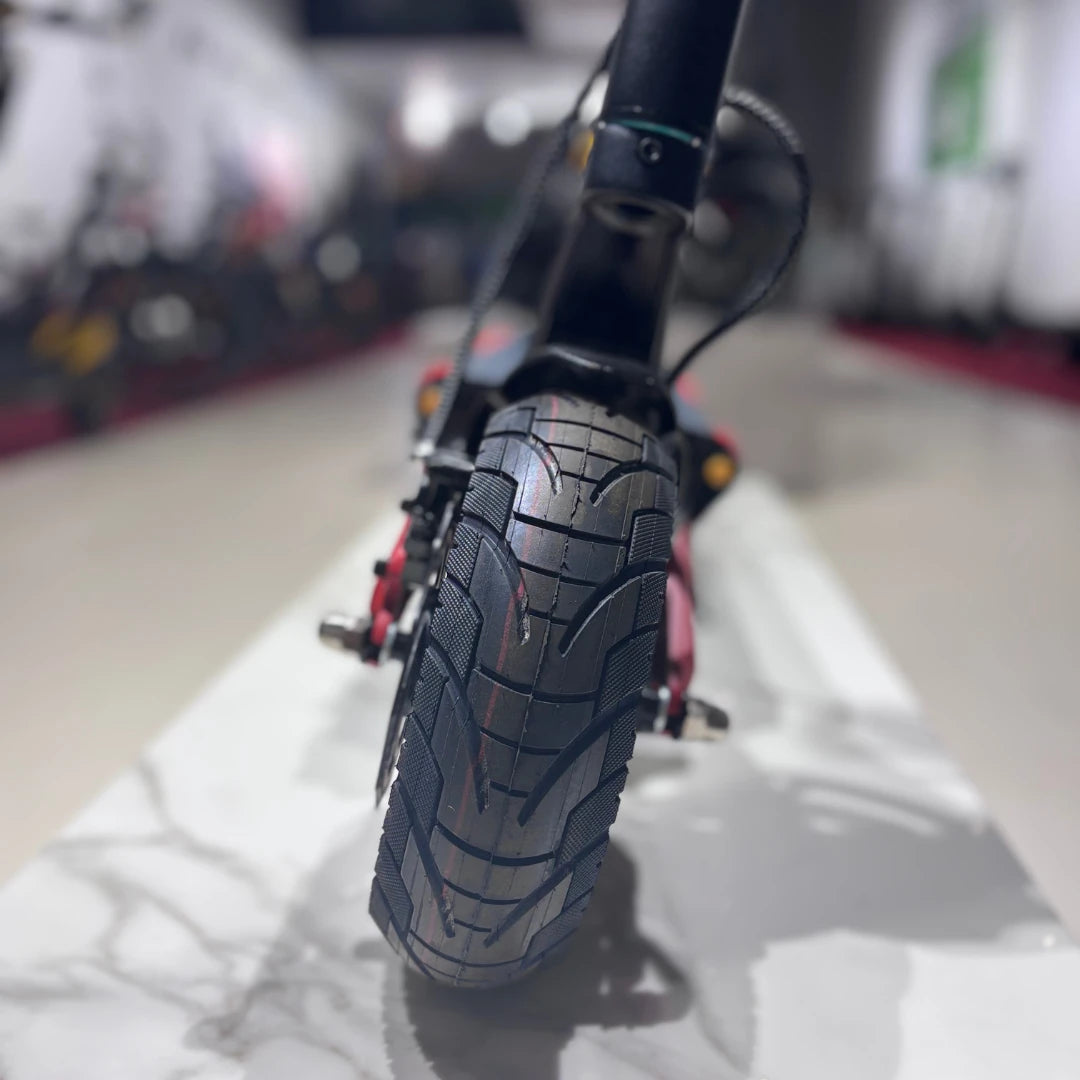

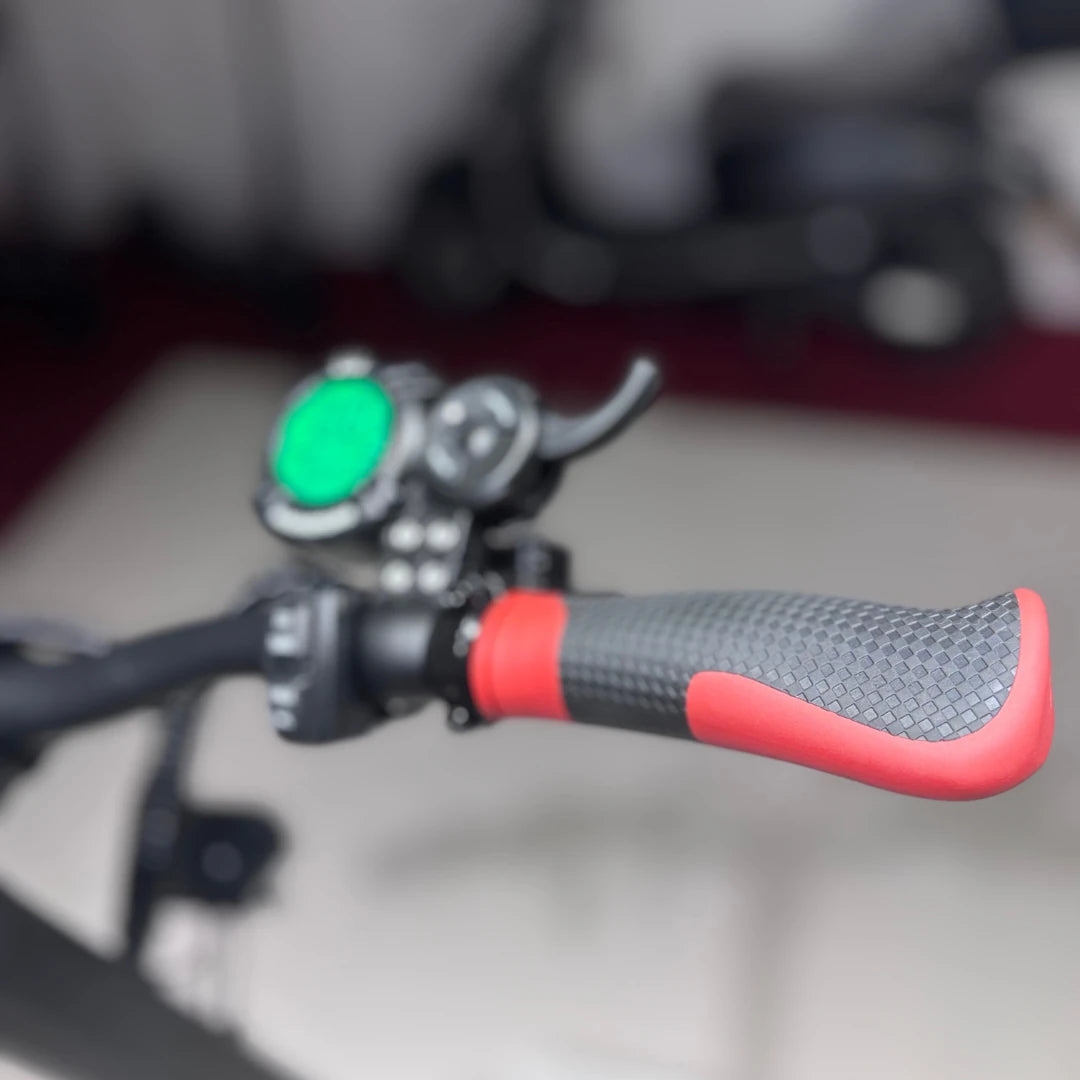

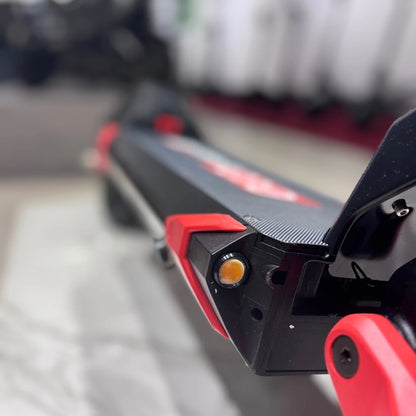

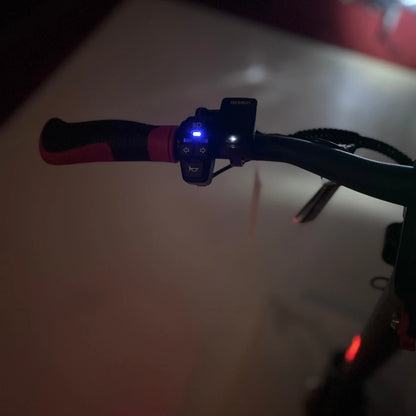

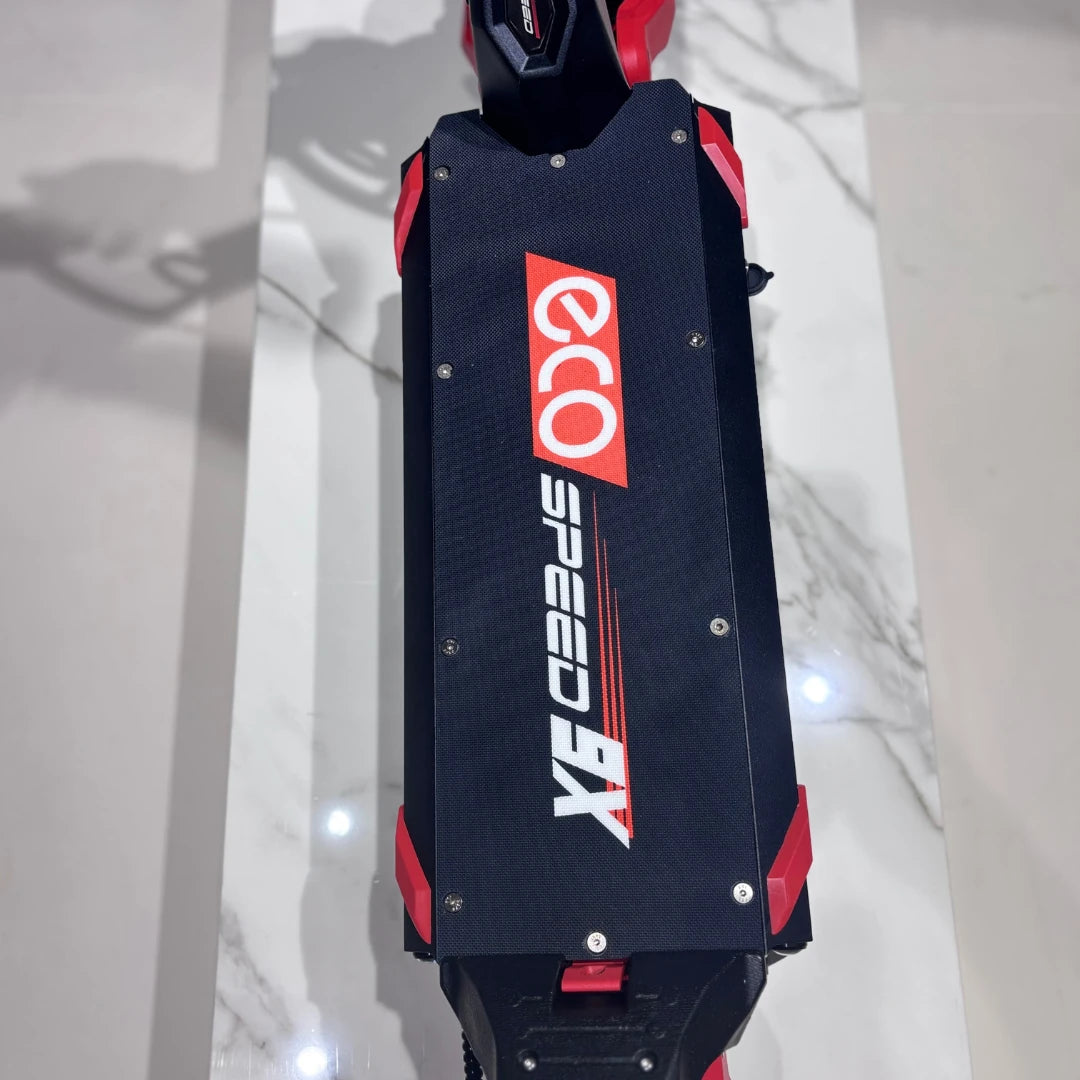

The ECO Speed 9X is engineered for durability and rider ergonomics, weighing 29 kg with a maximum payload capacity of 120 kg. The reinforced deck features an extended raised rear platform, improving stance options and comfort for longer rides. 9-inch pneumatic tires with inner tubes provide effective damping and stable road contact, while the dual suspension system smooths vibrations over uneven surfaces. The folding stem mechanism allows quick and secure folding in under 3 seconds, ensuring portability for storage and transport. On the handlebar, ergonomic controls provide direct access to lighting, indicators, and drive mode switches for intuitive operation. With its balance of compactness, foldability, and dynamic comfort, the ECO Speed 9X is designed to meet the demands of urban commuting and recreational riding.
-
Maintenance

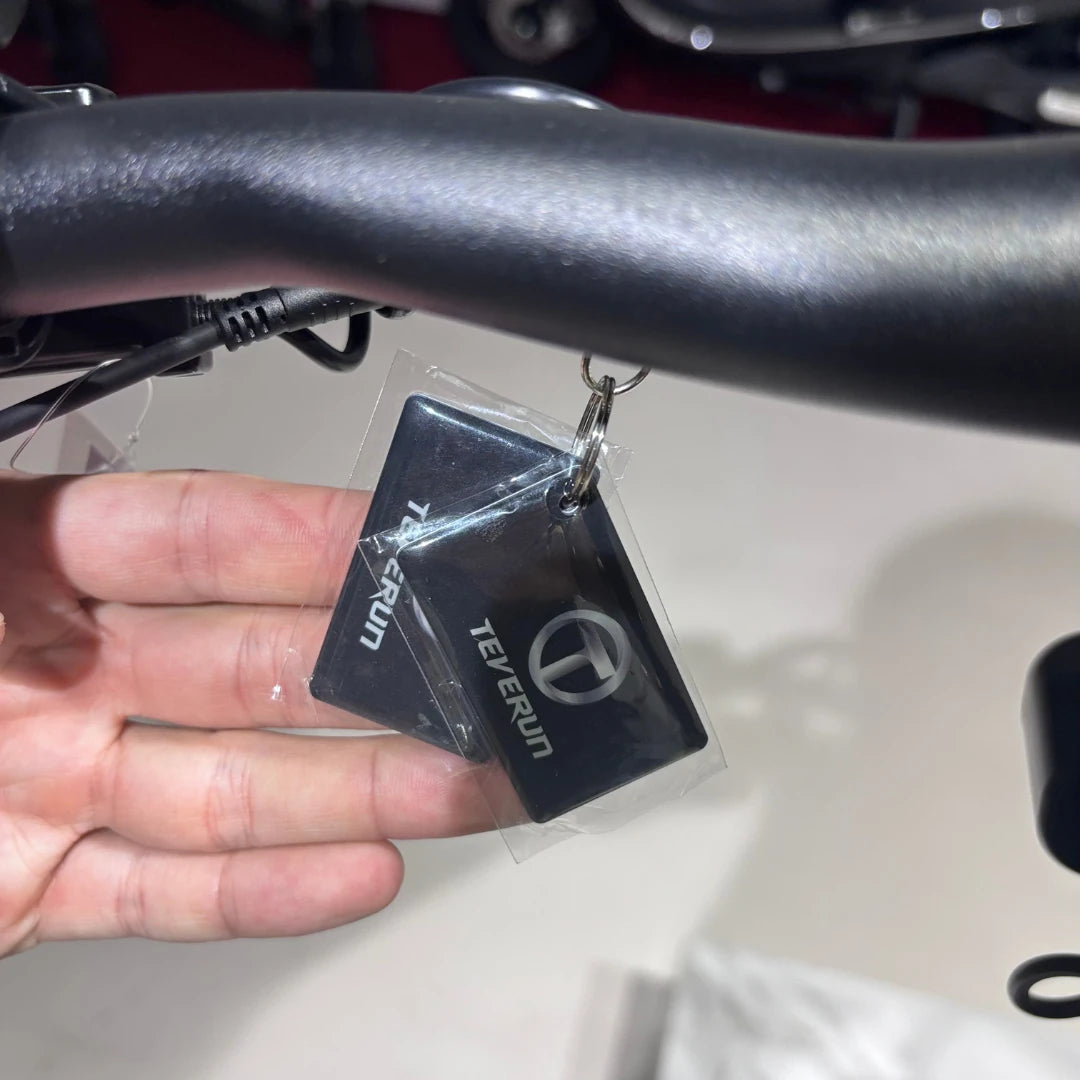

To maintain optimal performance, the ECO Speed 9X requires regular inspection of key systems. Tires should be checked for correct pressure and inspected for punctures, with timely replacement of worn tubes. The hydraulic braking system requires pad wear monitoring, rotor inspection, and periodic fluid bleeding to sustain consistent braking force. Suspension forks and pivot points should be inspected for play and cleaned after dusty or wet rides. The NFC unlocking system and electrical connections must remain dry and free of debris. The lithium-ion battery should be stored at 40–60% charge in a cool environment if unused for extended periods. Periodic torque checks on axles, stem clamps, and deck fasteners preserve structural integrity. With scheduled servicing and proper storage, the ECO Speed 9X delivers reliable performance, safety, and endurance across extended usage cycles.
